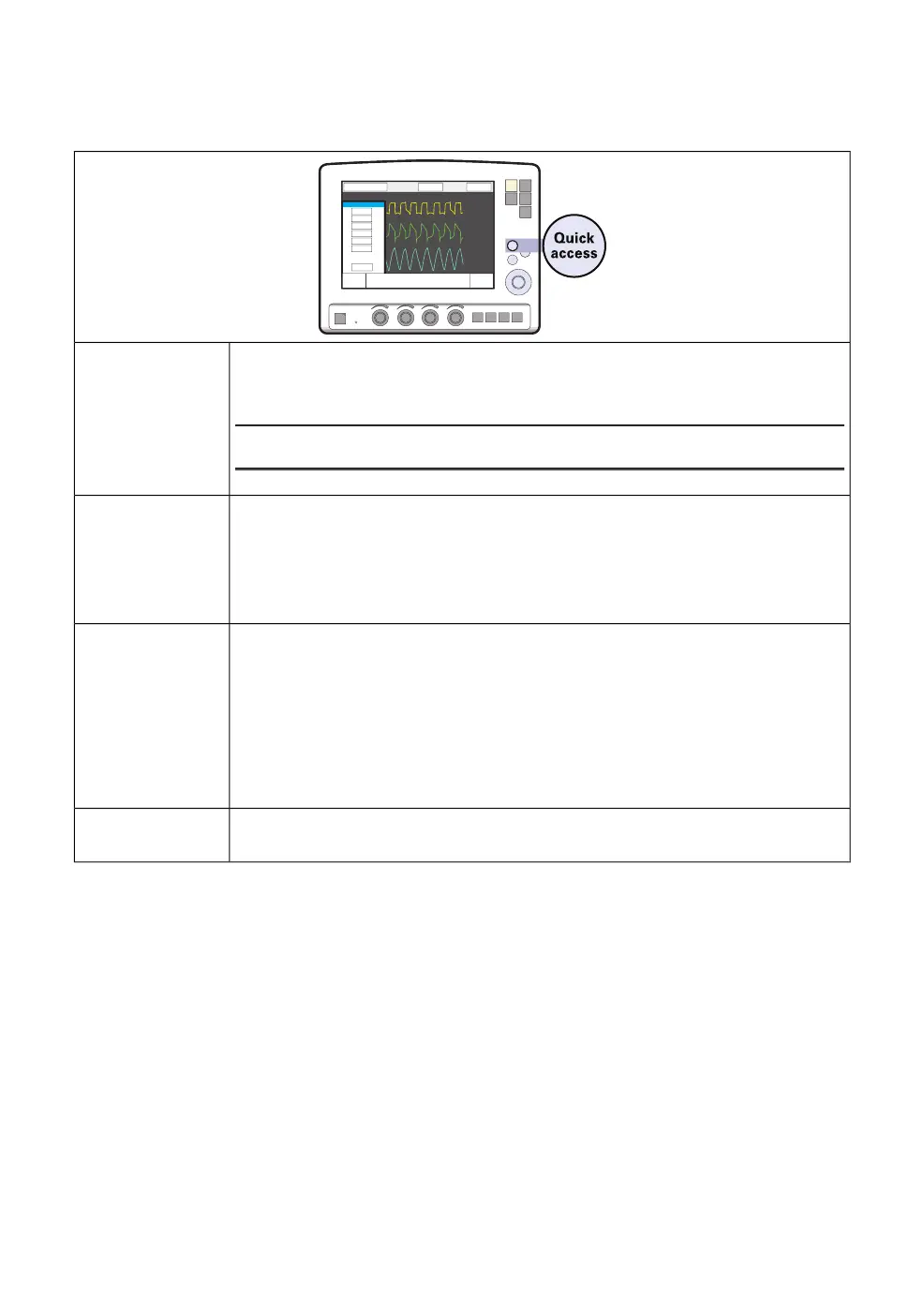

13.3 Quick access key
This function allows the user to disconnect the patient from the ventilator and turns
off the alarms (for apnea, minute volume, frequency alarm, check tubing, low PEEP)
during suction support.
Note: Suction support is not available when NIV or O
2
breaths are activated.
Suction Support
Loops are graphs that show two measured values: one measured value (x-axis)
against another measured value (y-axis). Loops are updated breath by breath.
Two loops are available:
• volume-pressure
• flow-volume
Loops
Waveform scaling
• Pressure scaling
• Flow scale
• Volume scale
These three scales are set to automatic scaling, by default.
The sweep speed (mm/s) can be set to 10 or 20 mm/s (default).
Waveform scales
Possibility to increase the space for viewing the waveform curves. This means that
more detailed information can be viewed.
Waveform
configuration
170
SERVO-s VENTILATOR SYSTEM V8.0, User's Manual
| 13
