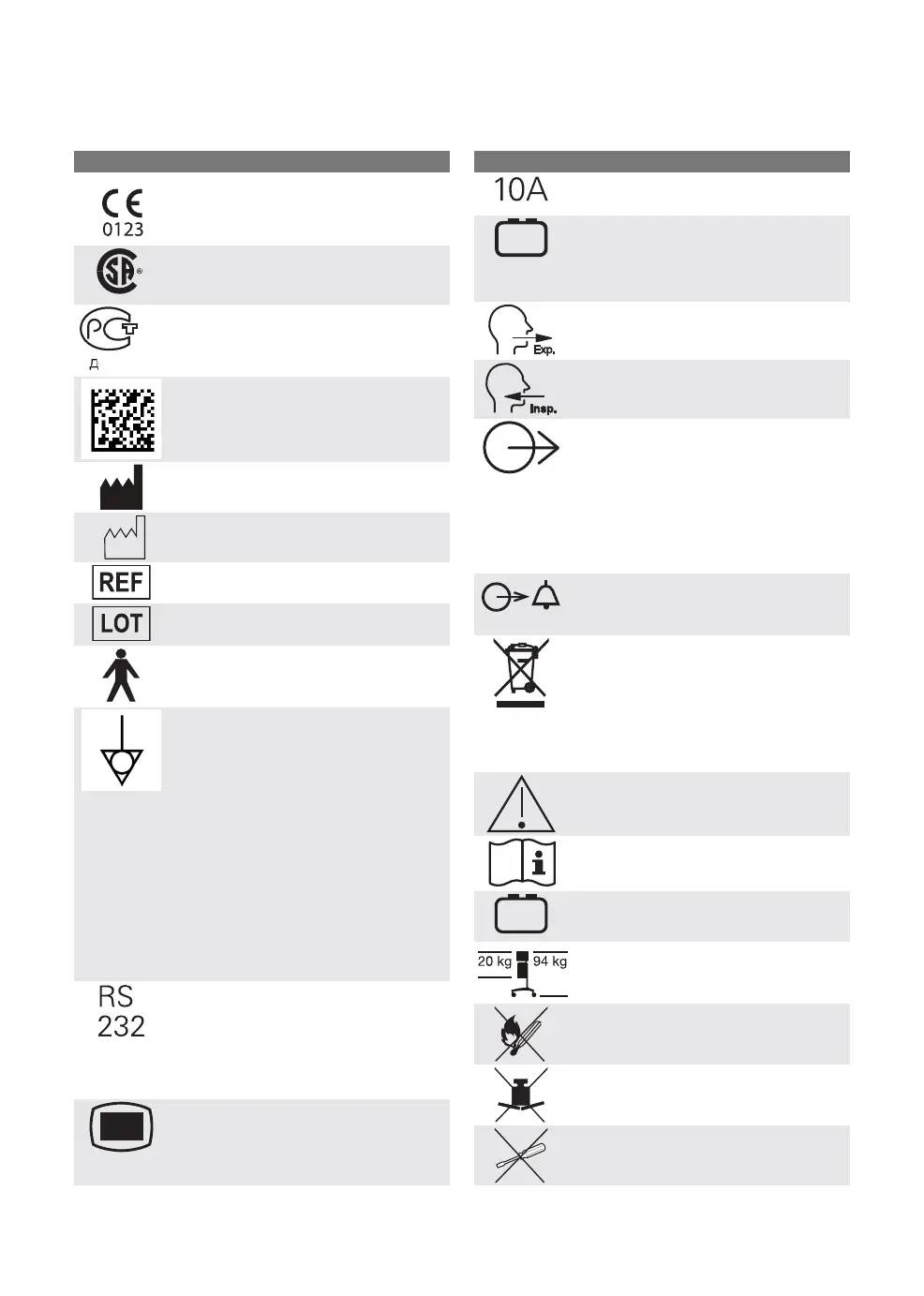

2.4.2 Patient Unit Symbols
ExplanationSymbol
CE label indicates compliance with
the requirements of the Medical
Device Directive 93/42/EEC
CSA label—Indicates compliance
with Canadian and US standards
C US
PCT label - indicates compliance with
Russian standards
E 01
UDI Label - Unique Device
Identification. See technical
specifications, page 163.
Manufacturer
Manufacturing date
Order number
Number to identify the production
batch
Class I equipment, Type B—indicates
classification according to IEC
60601-1/EN 60601-1
Equipotentiality terminal
Note: The equipotentiality terminal
is designed for the connection of a
potential equalization conductor
according to DIN 42 801 and
EN/IEC 60601-1. The function of the
equipotentiality terminal is to equalize
potentials between the system and
other medical electrical devices that
can be touched simultaneously. The
equipotentiality terminal must not be
used for a protective earth
connection.
RS 232 / Serial port—connector for
data communication.
Note: This symbol may be different
depending on Patient Unit version.
User Interface connector
Note: This symbol may be different
depending on Patient Unit version.
ExplanationSymbol
10A Fuse for external DC power
supply.
External 12V DC input
Note: This symbol may be different
depending on Patient Unit version.
12V
+
-
Expiratory label—gas flow from
patient.
Inspiratory label—gas flow to patient.
Gas exhaust port label—exhaust gas
flow from ventilator
Note: This port should not be
connected to a spirometer because
the volume through the exhaust port
is not equal to the expired volume
from the patient.
Alarm output connection
option—external alarm output
communication
Special waste. This product
contains electronic and electrical
components. Discard disposable,
replaced and left-over parts in
accordance with appropriate
industrial and environmental
standards.
Caution
Consult Instructions for use
Batteries
+
-
Weight of patient unit with user
interface and ventilator including its
safe working load.
Do not expose the battery to heat or
fire.
Do not expose the battery to
mechanical force.
Do not dismantle, open or shred the
battery.
30
SERVO-s VENTILATOR SYSTEM V8.0, User's Manual
