4.2 Waveform display
This section describes the waveform display
and provides procedures for hiding and
displaying the volume and for adjusting the
sweep speed and scale of the waveforms.
The following color-coded waveforms are
shown on the user interface screen by default:
• pressure time
• flow time
• volume time
4.2.1 Description
The default waveform display has the following
characteristics:
• The value of a measured parameter vs. time
is displayed.
• The displayed parameter and the scale are
indicated on the y-axis.
• The pressure vs. time display is dark yellow.
• The flow vs. time display is green.
• The volume vs. time display is light blue.
4.2.2 Show and Hide
SVS-6029_XX

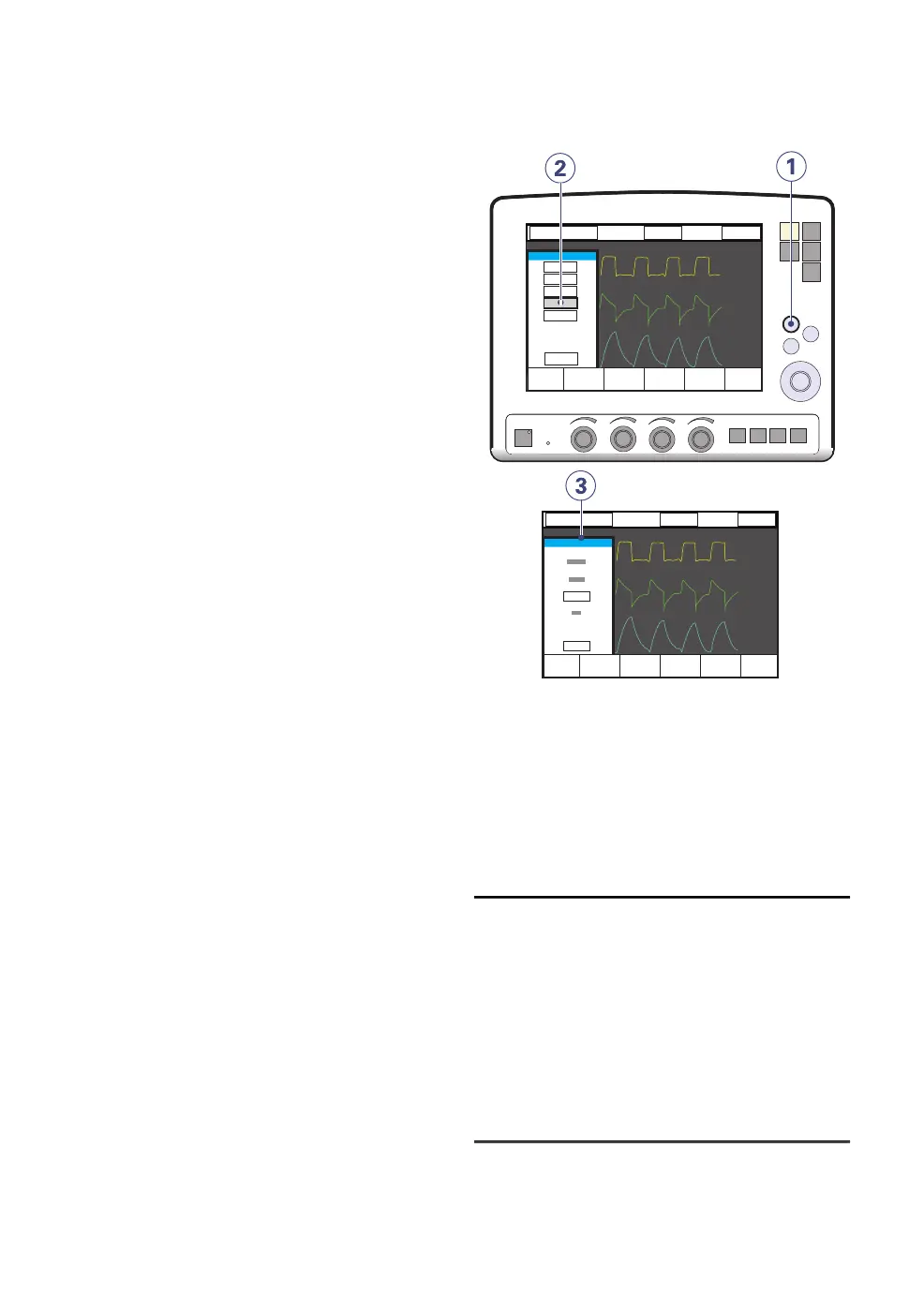

To show or hide the volume waveform:
1. Press the Quick access fixed key.
2. Press the Waveform configuration
touchpad.
3. Press the touchpad corresponding to the
waveform you wish to show or hide.
Notes:
• The pressure and flow waveforms are
always displayed. The volume waveform
may be hidden. Thus, 2 or 3 waveforms
may be displayed.
• When you hide a waveform, the
remaining waveforms are expanded to
use all available screen space.
46
SERVO-s VENTILATOR SYSTEM V8.0, User's Manual
| 4
| Monitor and record |
