P a g e | 116

GWN76XX User Manual

Version 1.0.19.25

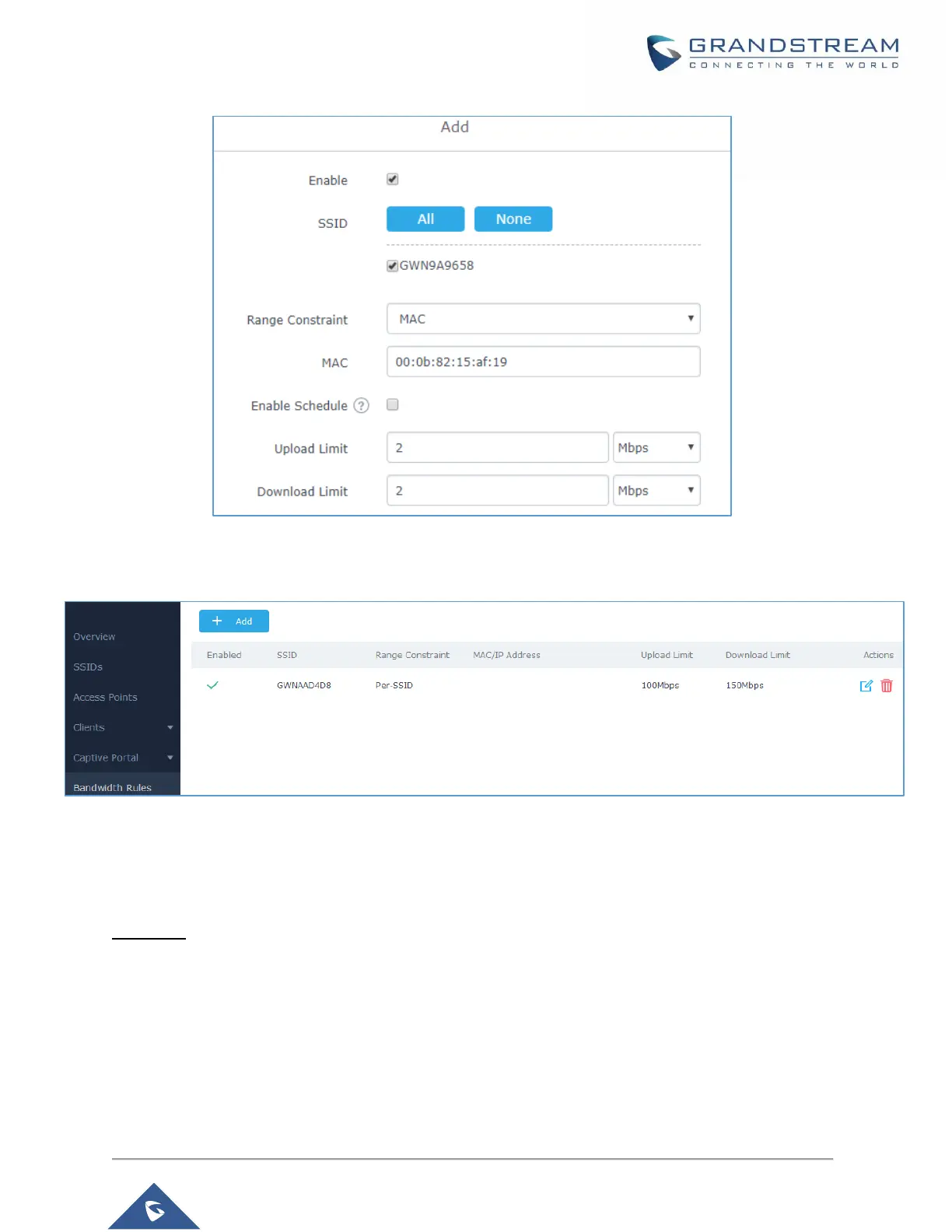

Figure 88: MAC Address Bandwidth Rule

The following figure shows examples of bandwidth rules:

Figure 89: Bandwidth Rules

Note:

The same settings for bandwidth management are available from the following menus:

Per-Client

Navigate on the web GUI under “ClientsEditBandwidth Rules” where you can set the Upstream and

Downstream rate in Mbps.
