P a g e | 63

GWN76XX User Manual

Version 1.0.19.25

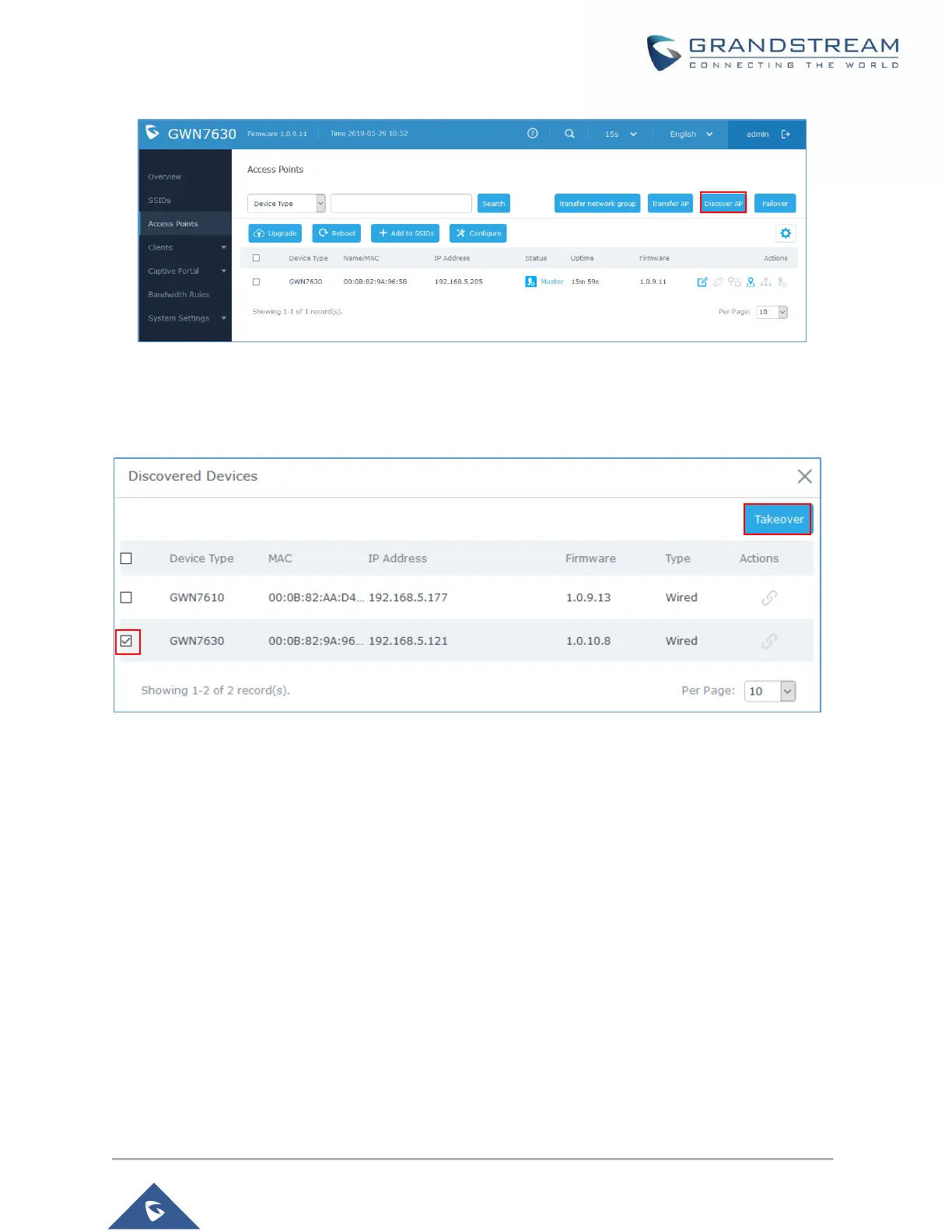

Figure 39: Takeover - Step 1

Step 2. Select the one or multiple APs to be taken over then click on “takeover” button of the target AP.

Figure 40: Takeover - Step 2

Step 3. Enter the Takeover key which is the admin password of the previous master AP.

Default Chapter8
