P a g e | 98

GWN76XX User Manual

Version 1.0.19.25

RADIO

When using GWN76XX as Master Access Point, users can edit the frequency band used by the AP and

channel used along with the Transmission power for each band.

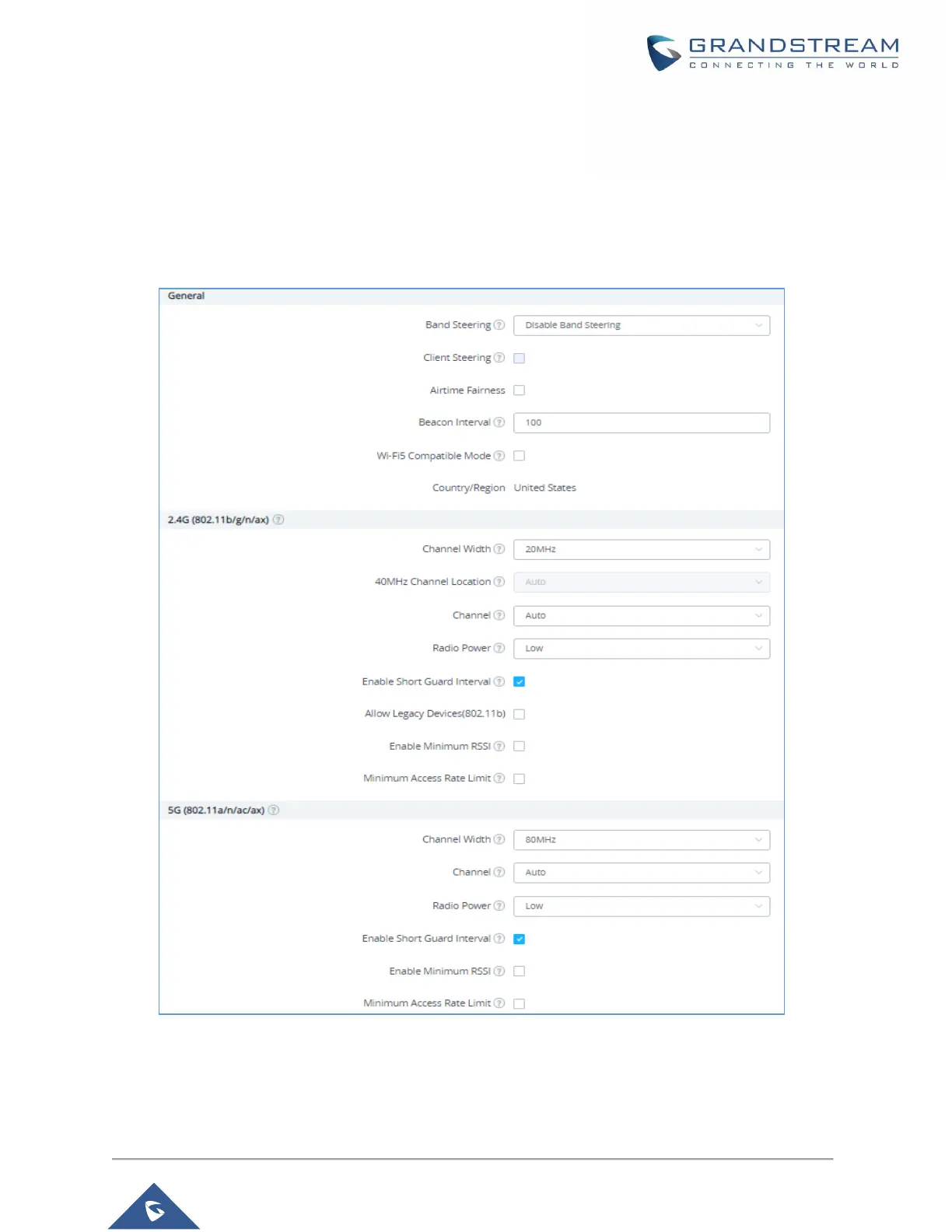

Figure 78: Radio-General
