P a g e | 97

GWN76XX User Manual

Version 1.0.19.25

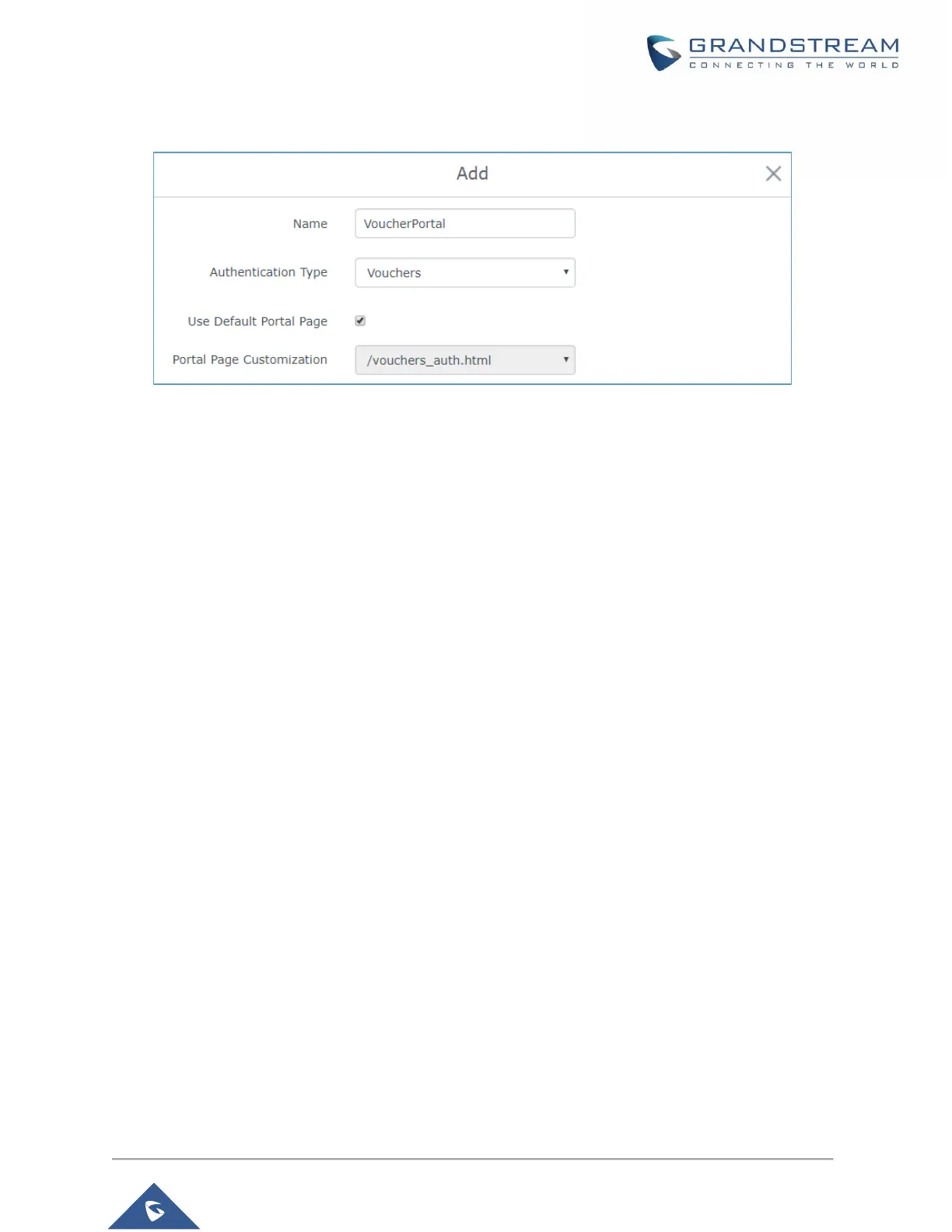

3. Set the following parameters as shown on the screenshot for basic setup then save and apply.

Figure 77: Captive Portal with Voucher authentication

Then go under your SSID configuration page and enable the generated captive portal under Wi-Fi settings

tab.
