GWN76XX User Manual
Version 1.0.19.25
Step 4:
Connect the power cable and the Ethernet cable (RJ45) to the
correct ports of your GWN7630/GWN7610/GWN7615/ GWN7605
/GWN7600.
Step 5:
Align the arrow on the GWN AP with the arrow on the locking tab
of the mounting bracket and ensure that your GWN is firmly seated
on the mounting bracket.
Step 6:
Turn the GWN clockwise until it locks into place and fits the locking tab.
Ceiling Mount
Step 1:
Remove the ceiling tile.
Step 2:
Place the ceiling backing plate in the center of the ceiling tile and
mark the mounting screw holes (screw holes DIA 5.5mm, reticle
hole DIA 25mm).
Step 3:
Insert the screws through the mounting bracket.
Step 4:
Connect the power cable and the Ethernet cable (RJ45) to the
correct ports of your GWN7600.
Step 5:
Align the arrow on the GWN AP with the arrow on the locking tab
of the mounting bracket and ensure that your GWN is firmly
seated on the mounting bracket and connect the network and
power cables.

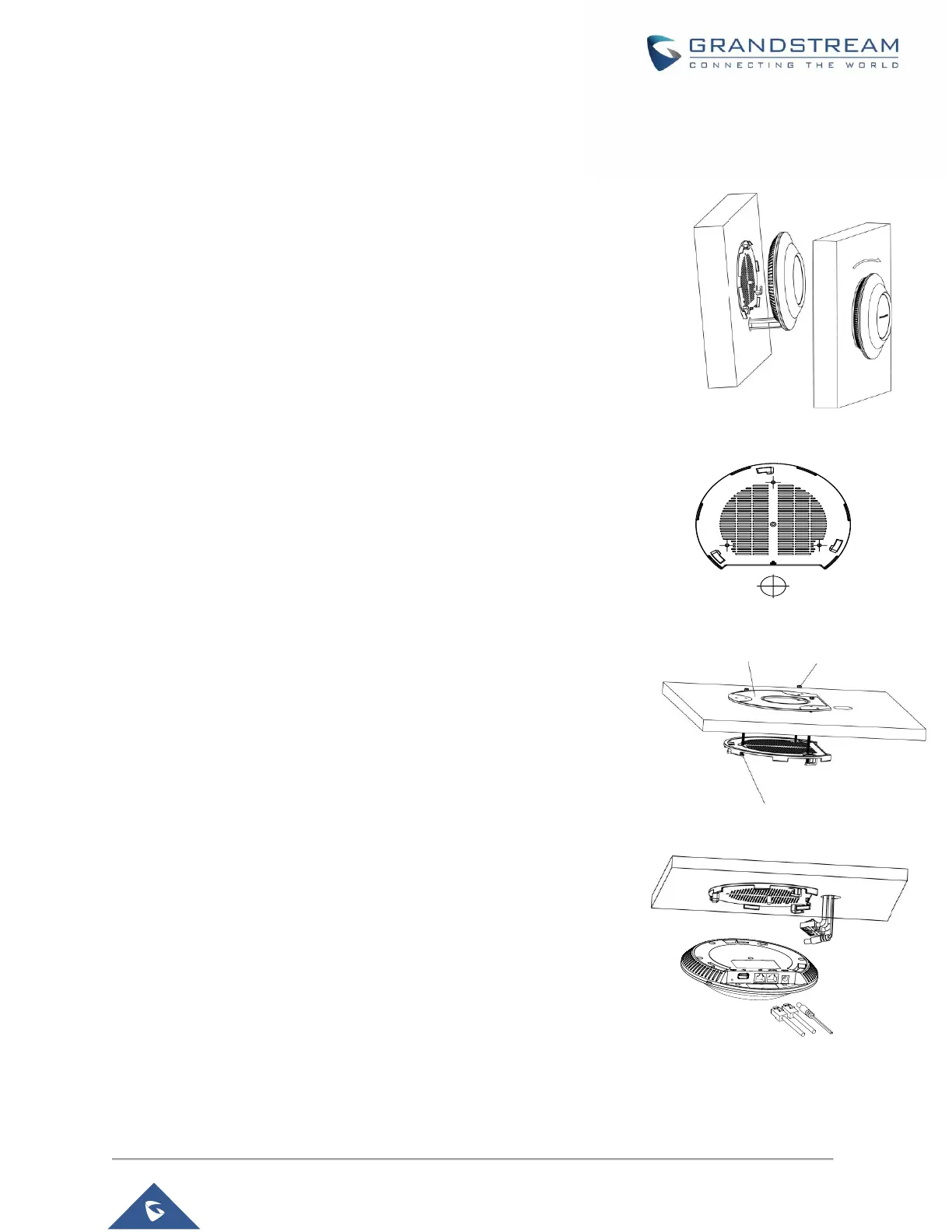

Figure 11: Wall Mount – Steps 5 & 6
Ceiling Mounting Bracket
M3 nut
M3.0x50 screw
Figure 13: Ceiling Mount – Step 3
Figure 12: Ceiling Mount – Steps 1 & 2
Figure 14: Ceiling Mount – Step 4
