6 – 15

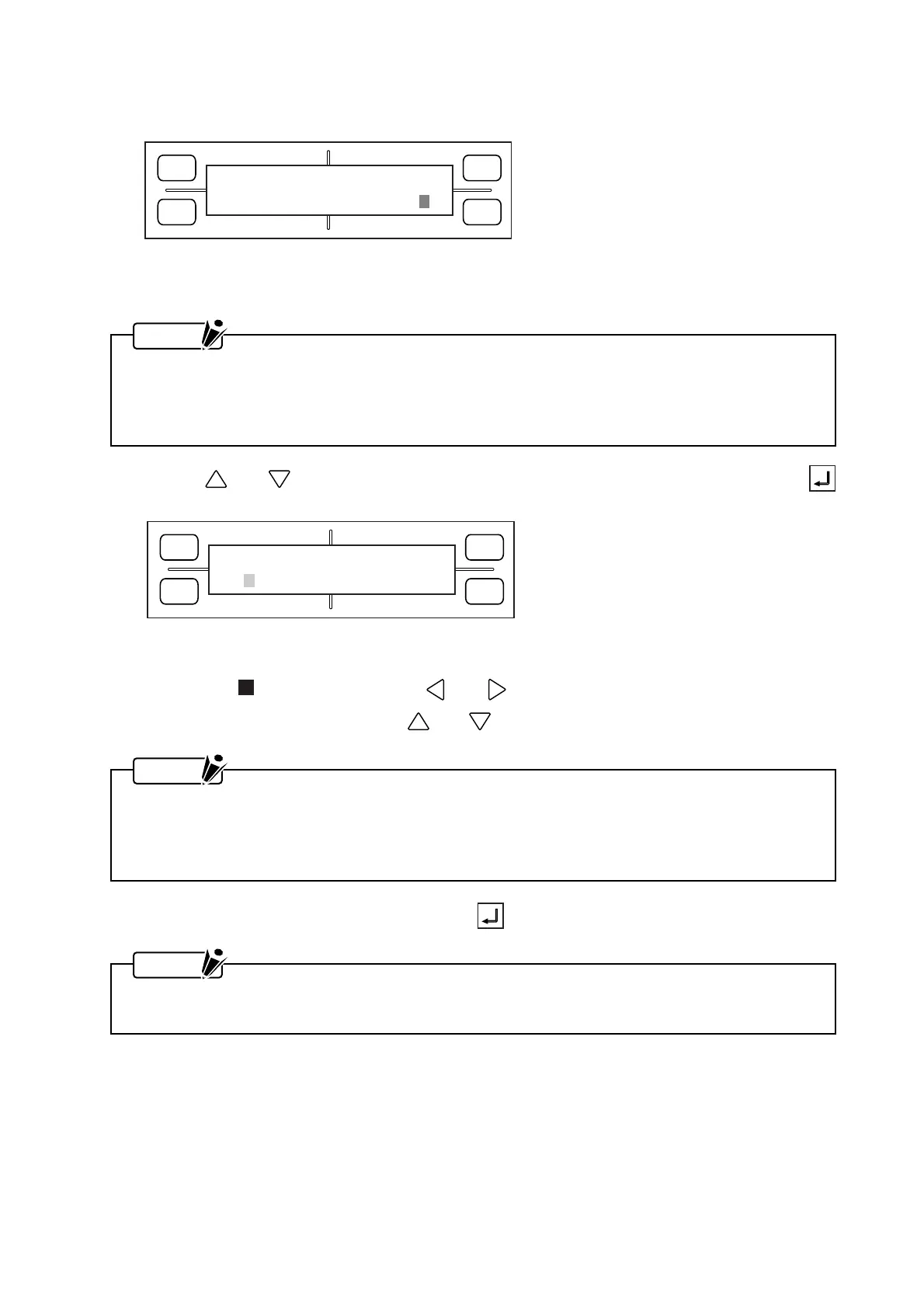

(6) If you selected 2 POINT or 3 POINT in Step (4), the menu below appears after pressing the ENTER key
in Step (5).
By registering the interval between the position of registration marks in advance, you can move from
one registration mark to another without registration mark recognition being performed.
NOTE
• Specifying the MARK MOVE parameter enables you to shorten the time required for registration
mark recognition. Moreover, this parameter’s setting also offers the merit of not being affected by
plotting, dust, or other foreign matter on the medium between the registration marks.
• Up to three different MARK MOVE settings can be registered in the FC4200’s internal memory.
(7) Use the and POSITION keys to select the desired registration number, then press the
ENTER key to display the menu below.
Enter numeric values to specify the interval between registration marks as a relative coordinate dis-
tance.
To move the blinking cursor, use the and POSITION keys.
To change the numeric value, use the and POSITION keys.
NOTE
• When the MARK MOVE values are 0mm, the FC4200 will not skip reading the medium between
the registration marks. Instead, the plotter continues the registration mark recognition operation
until the next registration mark is recognized.
• When the MODE setting is 2 POINT, the Y value is disregarded.
(8) If the revised settings are satisfactory, press the ENTER key to register your settings.
NOTE
When the MARK MOVE parameter is correctly specified, the reading range required for registration
mark recognition conforms to the following figures.
FORCE
SPEED
OFFSET
QUALITY
F1 F3
F4
F2
MARK MOVE No.
No.=1
FORCE
SPEED
OFFSET
QUALITY
F1 F3
F4
F2
MARK MOVE DIST.
X=0000mm Y=0000mm
