WR1000-UM-251-01-9380 8-1
8. CIRCUIT DIAGRAMS

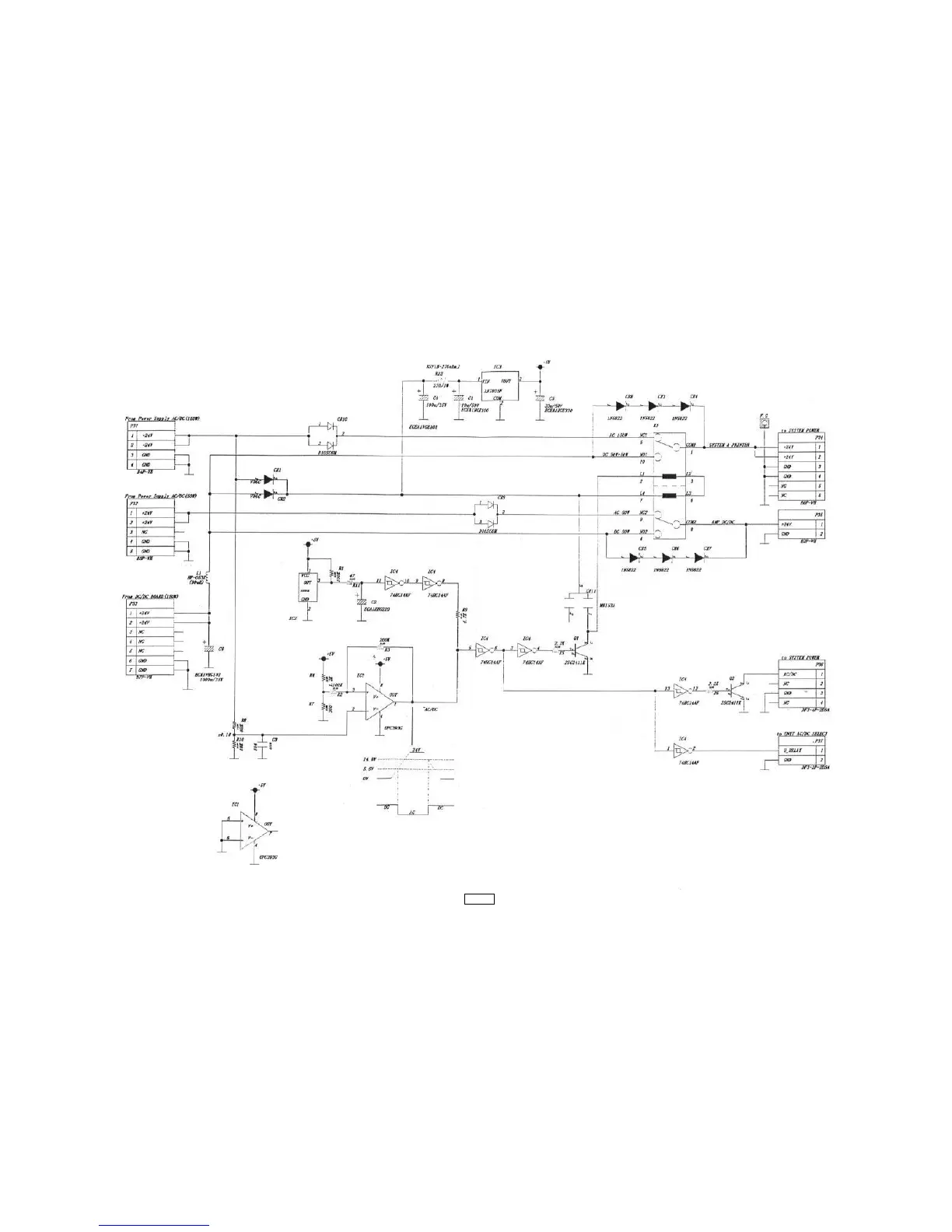

Circuit Diagram: AC/DC Select Board (WR1000-03)
Fig. 8-1
