CONFIGURATION
105

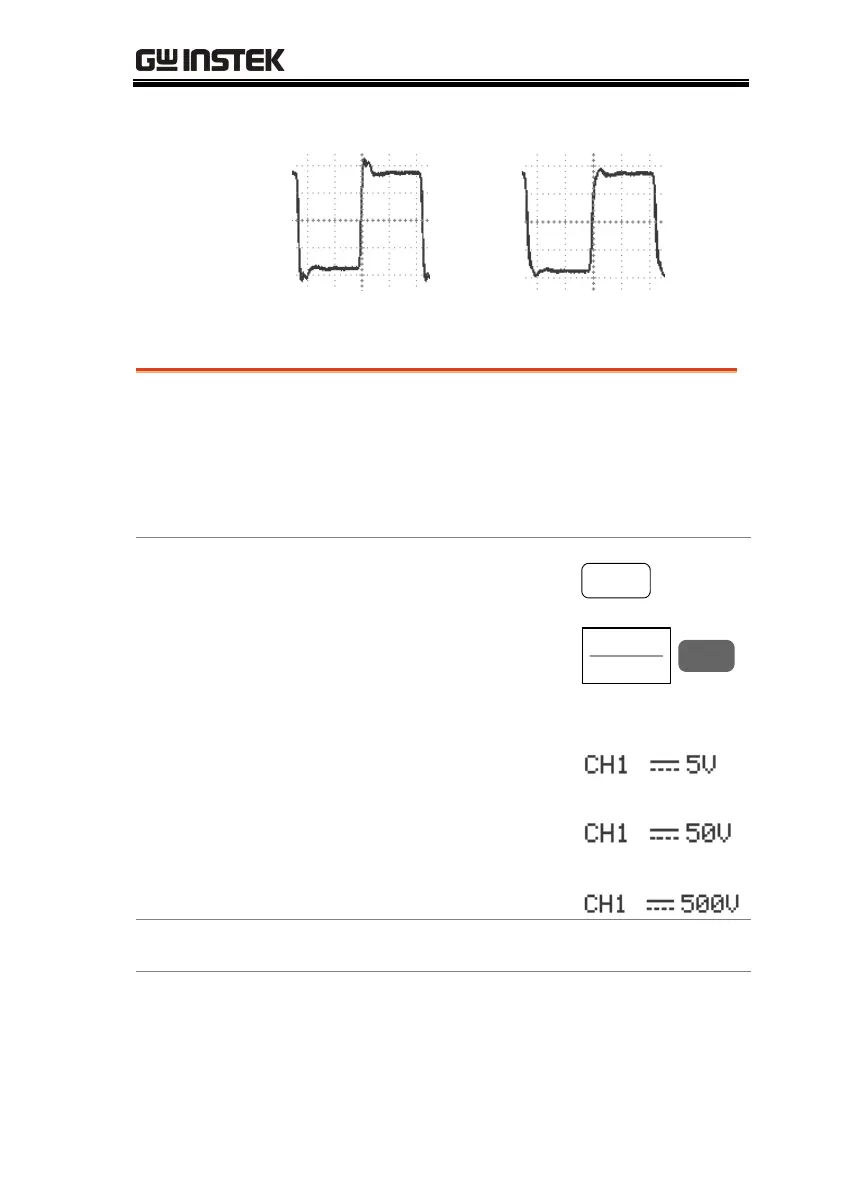

Example BW Limit Off
BW Limit On
Select probe attenuation level
Background
A signal probe has an attenuation switch to lower
the original DUT signal level to the oscilloscope
input range, if necessary. The probe attenuation
selection adjusts the vertical scale so that the
voltage level on the display reflects the real value
on DUT.
Panel operation
1. Press the Channel key.
CH1
2. Press F4 (Probe) repeatedly
to select the attenuation
level.
Probe
x1
F 4
3. The voltage scale in the
channel indicator changes
accordingly. There is no
change in the waveform
shape.
(x1)
(x10)
(x100)
Range
x1, x10, x100
Note
The attenuation factor adds no influence on the
real signal. It just changes the voltage scale on the
display.
