MEASUREMENT
49

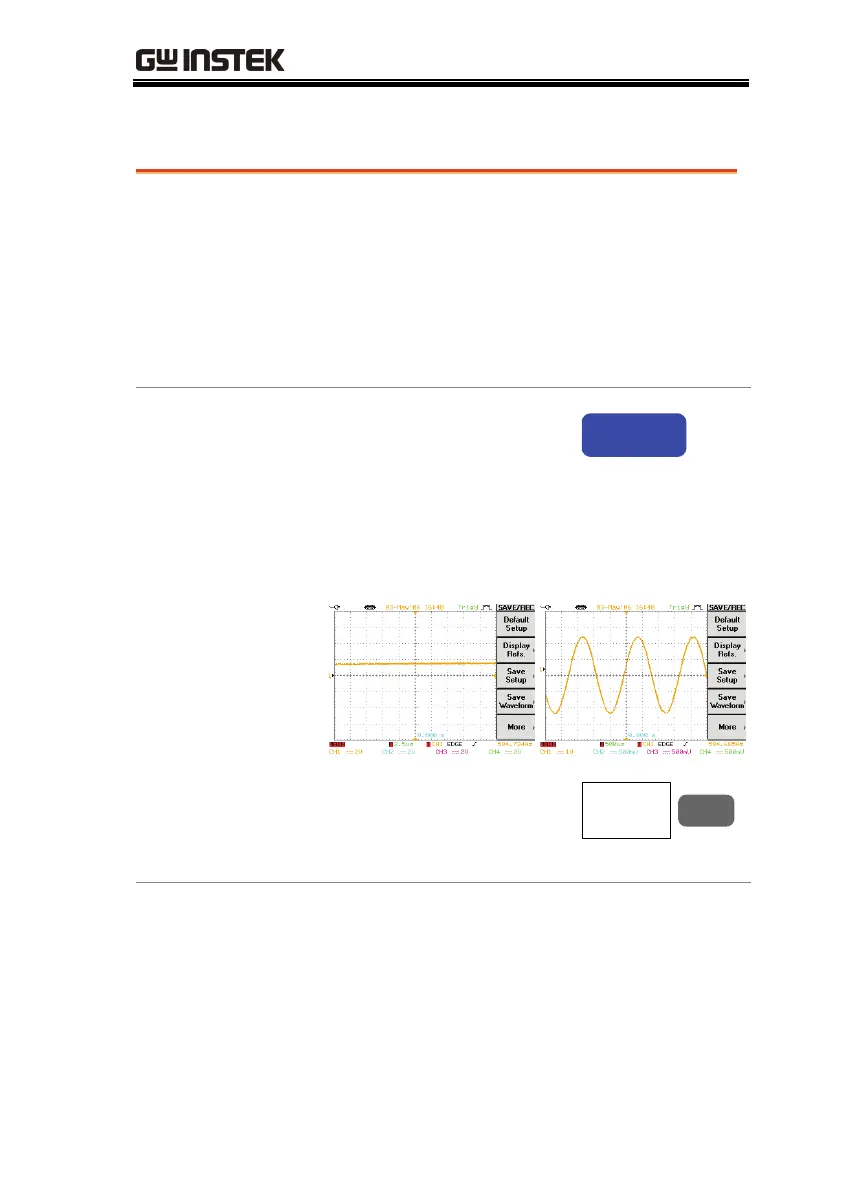

Auto Set
Background
Auto Set function automatically configures the
panel settings to position the input signal to the
best viewing condition. GDS-2000 automatically
configures the following parameters.
Horizontal scale
Vertical scale
Trigger source channel
Panel operation
1. Connect the input signal to
GDS-2000 and press the
Auto Set key.
Auto Set
2. The waveform appears in the center of the
display.
Before
After
3. To undo Auto Set, press F5
(Undo). This feature is
available for 5 seconds after
Auto Set is activated.
Slope /
Coupling
F 5
Limitation
Auto Set does not work in the following situation.
Input signal frequency is less than 20Hz
Input signal amplitude is less than 30mV
