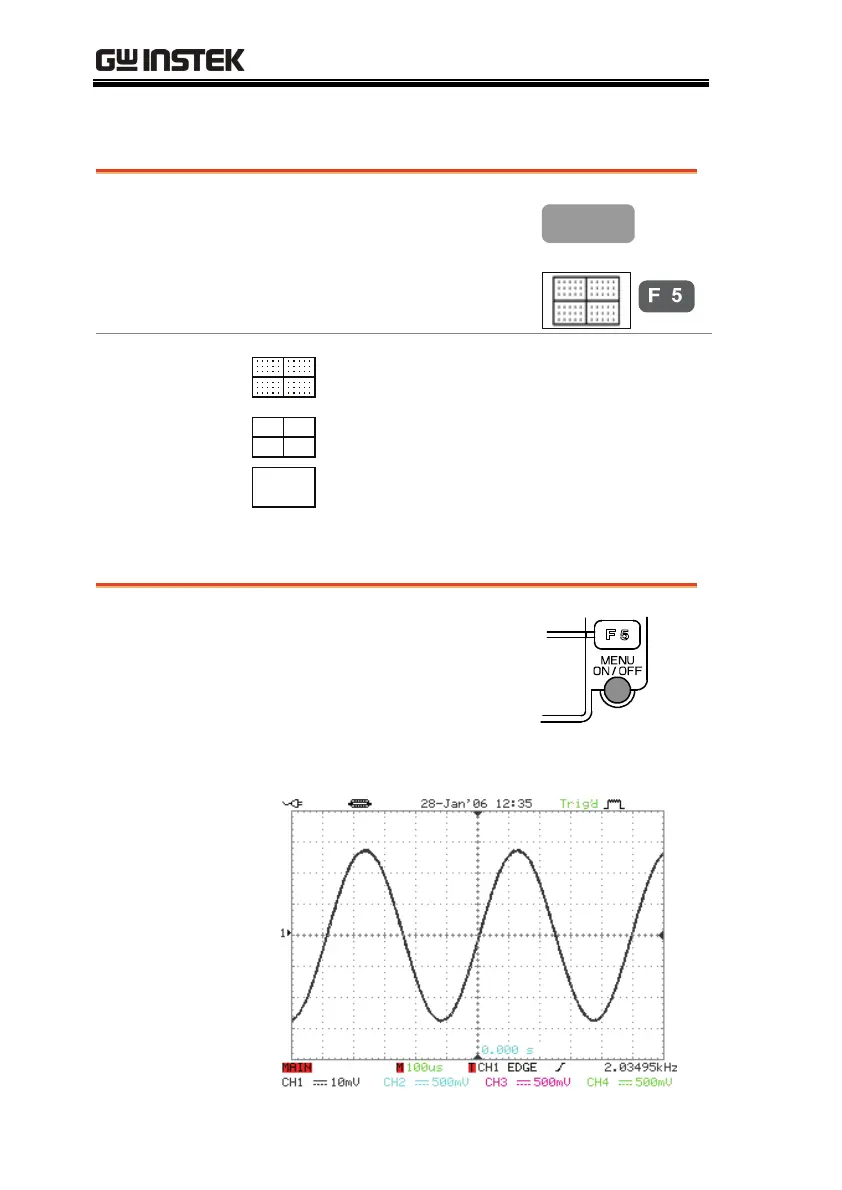

GDS-2000 Series User Manual
94
Select display grid
Panel operation
1. Press the Display key.
Display
2. Press F5 (Grid type)
repeatedly to select the grid.
Range
Shows the full grid; X and Y axis for
each division.
Shows only the center X and Y frame.
Shows only the outer frame.
Turn Off menu
Panel operation
1. Press the MENU ON/OFF
key below F1 ~ F5.
2. The menu disappears. The waveform points
changes from 250 to 300.
