CONFIGURATION
87

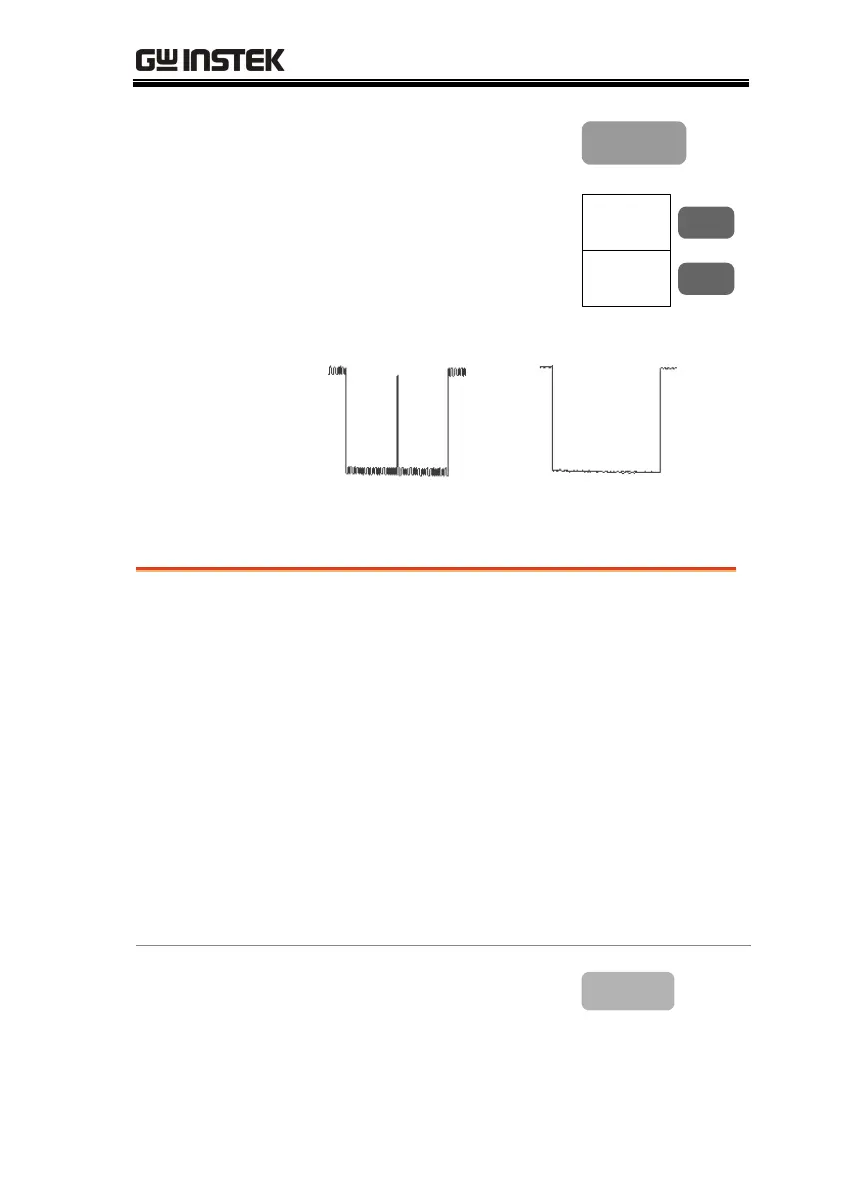

6. Press the Acquire key.
Acquire
7. Press F2 (Peak Detect) or F1
(Normal) and see that in the
Peak detection mode, spike
noise is captured.
Normal
F 1
Peak
Detect
F 2
Peak Detect
Normal
Select waveform memory length
Background
Memory length defines the amount of waveform
data (points) included in each trigger event. Two
modes are available: short and long.
Short mode
Each waveform includes fewer
points and is updated rapidly. It is
useful for observing the shape of
fast-changing waveform such as
Frequency Modulation.
Long mode
Each waveform includes more
points and is updated relatively
slowly. It is useful for observing the
details of single-shot phenomenon
such as spike noise.
Panel operation
1. Press the Acquire key.
Acquire
