GW Instek GDS-2000 Series User Manual

GDS-2000 Series User Manual
114

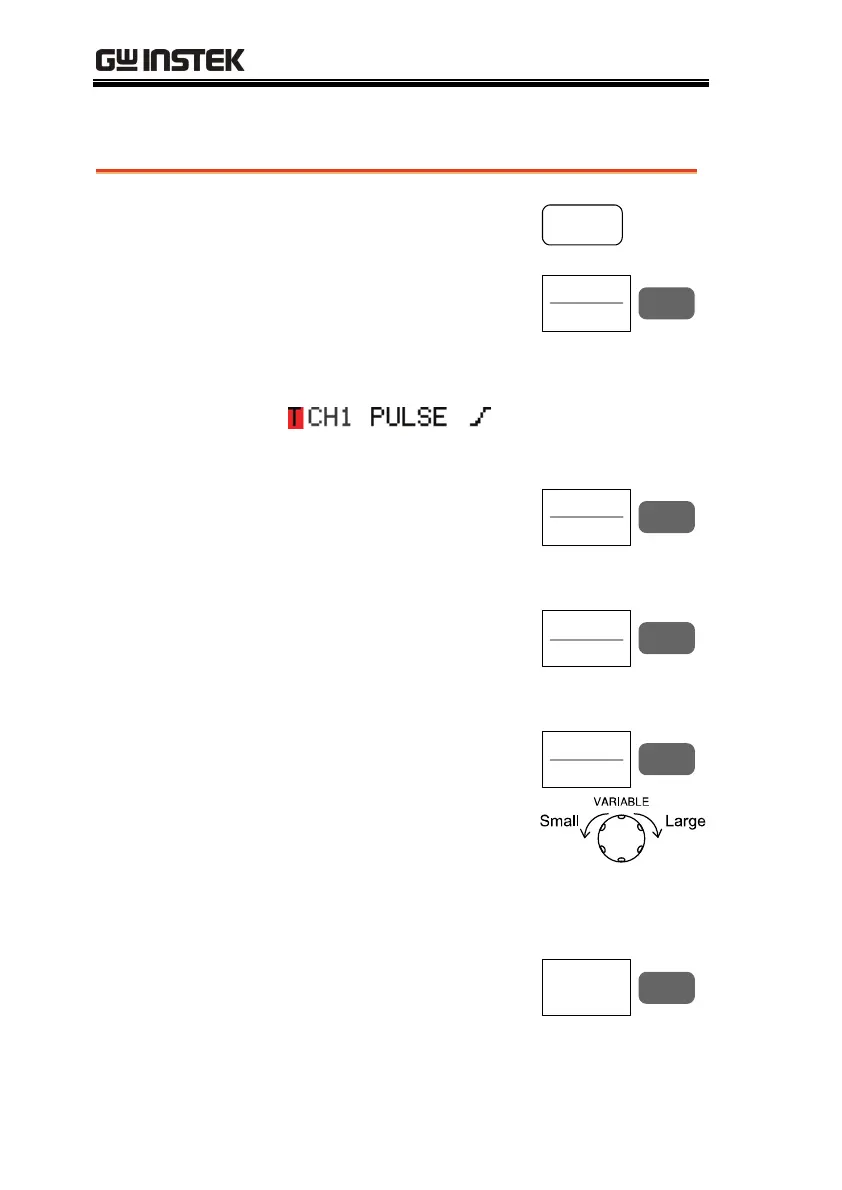

Use pulse width trigger
Panel operation
1. Press the Trigger menu key.
MENU
2. Press F1 repeatedly to select
pulse width trigger. The
pulse width trigger
indicator appears at the
bottom of the display.
Type
Pulse
F 1
From left: channel, pulse width trigger, slope
3. Press F2 repeatedly to select
the trigger source.
Source
CH1
F 2
Range
Channel 1 ~ 4, Line, Ext
4. Press F3 repeatedly to select
the trigger mode.
Mode
Auto
F 3
Range
Auto, Normal, Single
5. Press F4 repeatedly to select
the pulse condition. Then
use the Variable knob to set
the pulse width.
When <
20.0ns
F 4
Condition
> , < , = , ≠
Width
20ns ~ 200us
6. Press F5 to set trigger slope
and coupling.
Slope /
Coupling
F 5
