GW Instek GDS-2000 Series - Page 115

CONFIGURATION
115

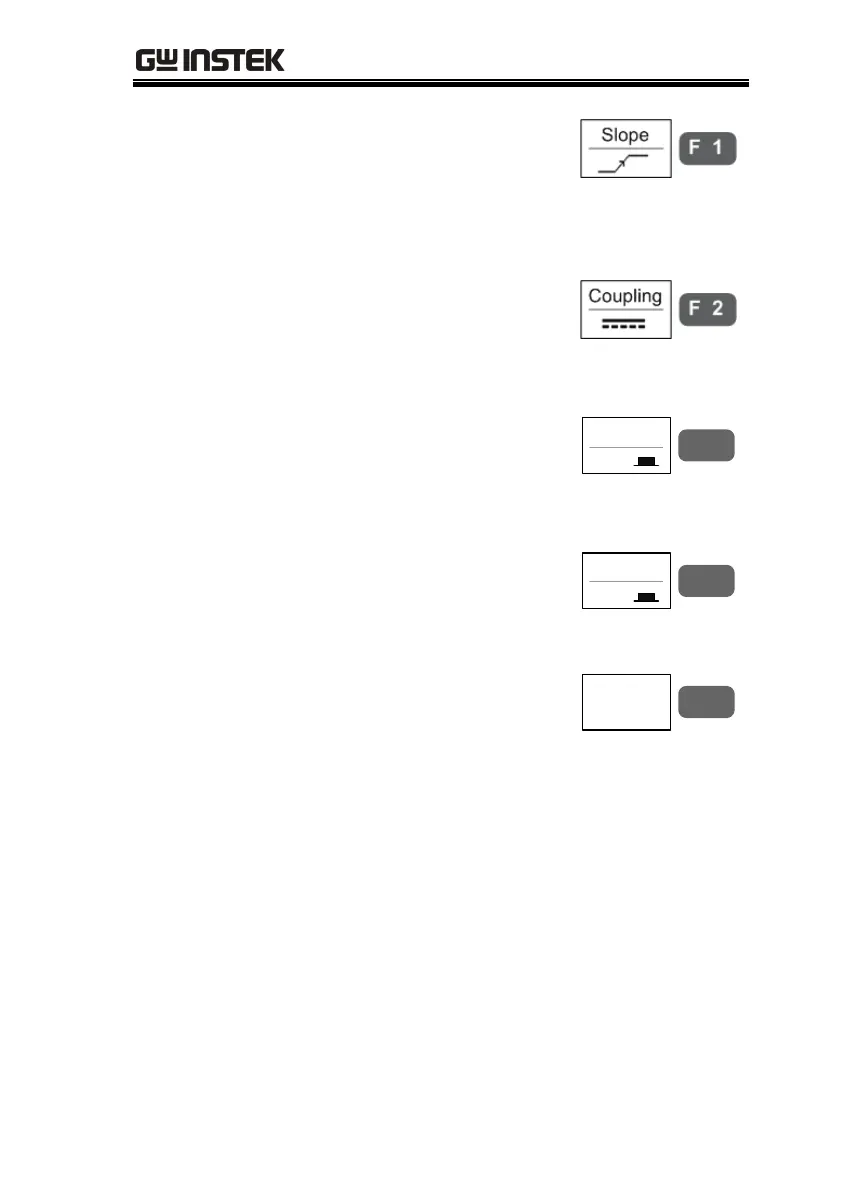

7. Press F1 (Slope) repeatedly
to select the trigger slope,
which also appears at the
bottom of the display.
Range
Rising edge, falling edge
8. Press F2 (Coupling)
repeatedly to select the
trigger coupling.
Range
DC, AC
9. Press F3 (Rejection) to select
the frequency rejection
mode.
Rejection
Off
F 3
Range
LF, HF, Off
10. Press F4 (Noise Rej) to turn
the noise rejection On/Off.
Noise Rej
Off
F 4
Range
On, Off
11. Press F5 (Previous menu) to
go back to the previous
menu.
Previous
Menu
F 5
