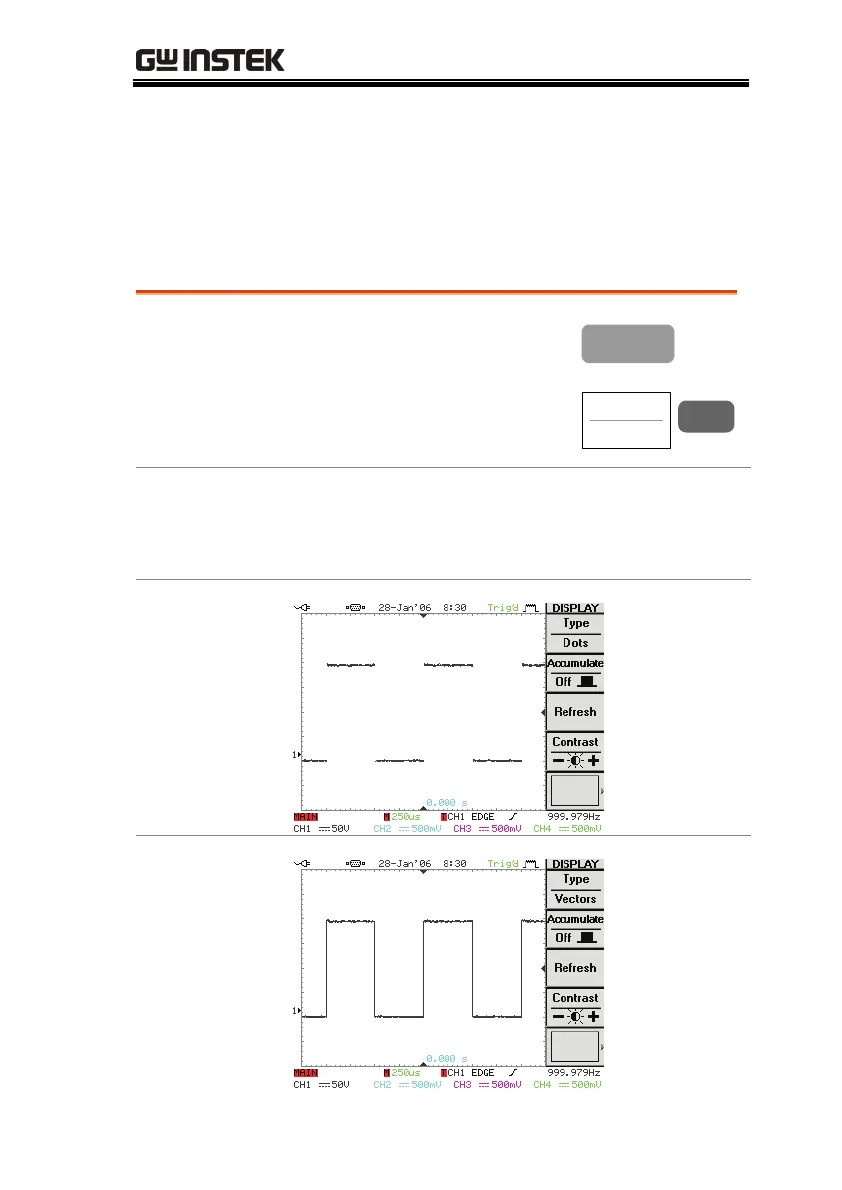

GW Instek GDS-2000 Series User Manual

CONFIGURATION
91
Display
Display menu defines how the waveforms and parameters appear
on the main LCD display.
Select waveform drawing (vector/dot)
Panel operation
1. Press the Display key.
Display
2. Press F1 (Type) repeatedly
to select the waveform
drawing.
Type
Dots
F 1
Range Dots
Only the sampled dots are displayed.
Vectors
Both the sampled dots and the
connecting line are displayed.
Example: Dots
(square wave)
Example: Vectors
(square wave)
