GDS-2000 Series User Manual
20

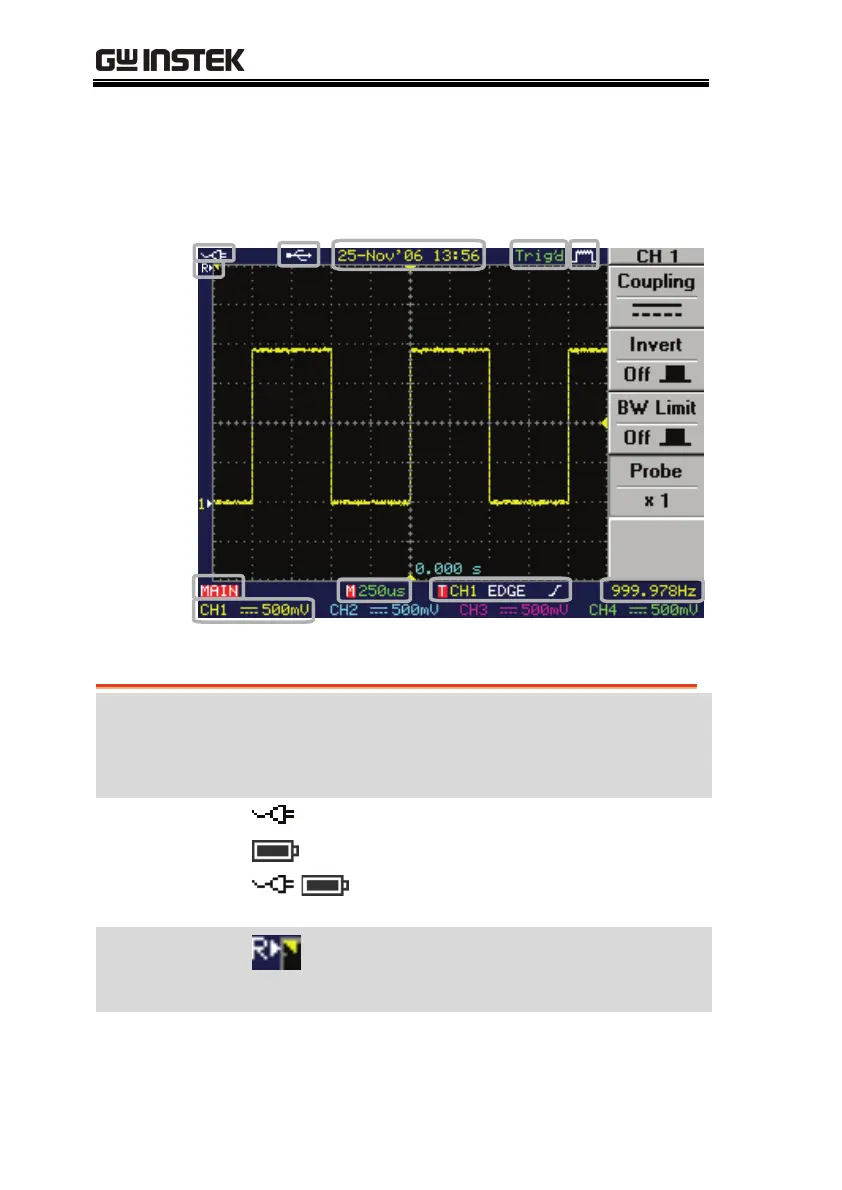

Display
Power
source
Display
mode
Waveform
Interface Date/Time o
r
Memory Bar
Trigger
status
Acquisition
mode
Channel
status
Timebase Trigger
configuration
Waveform
frequency
Recall
Waveforms
Shows input signal waveforms.
Channel 1: Yellow Channel 2: Blue
Channel 3: Pink Channel 4: Green
Power source
AC main is the source.
Battery (page156) is the source.
AC main is the source: battery is
installed as well.
Image recall
The “R” indicator shows that the
display shows pre-recorded image,
not signal waveform.
Interface
Shows the active interface for remote connection
(page149) and PC software connection.
