GW Instek GDS-2000 Series User Manual

GDS-2000 Series User Manual
62

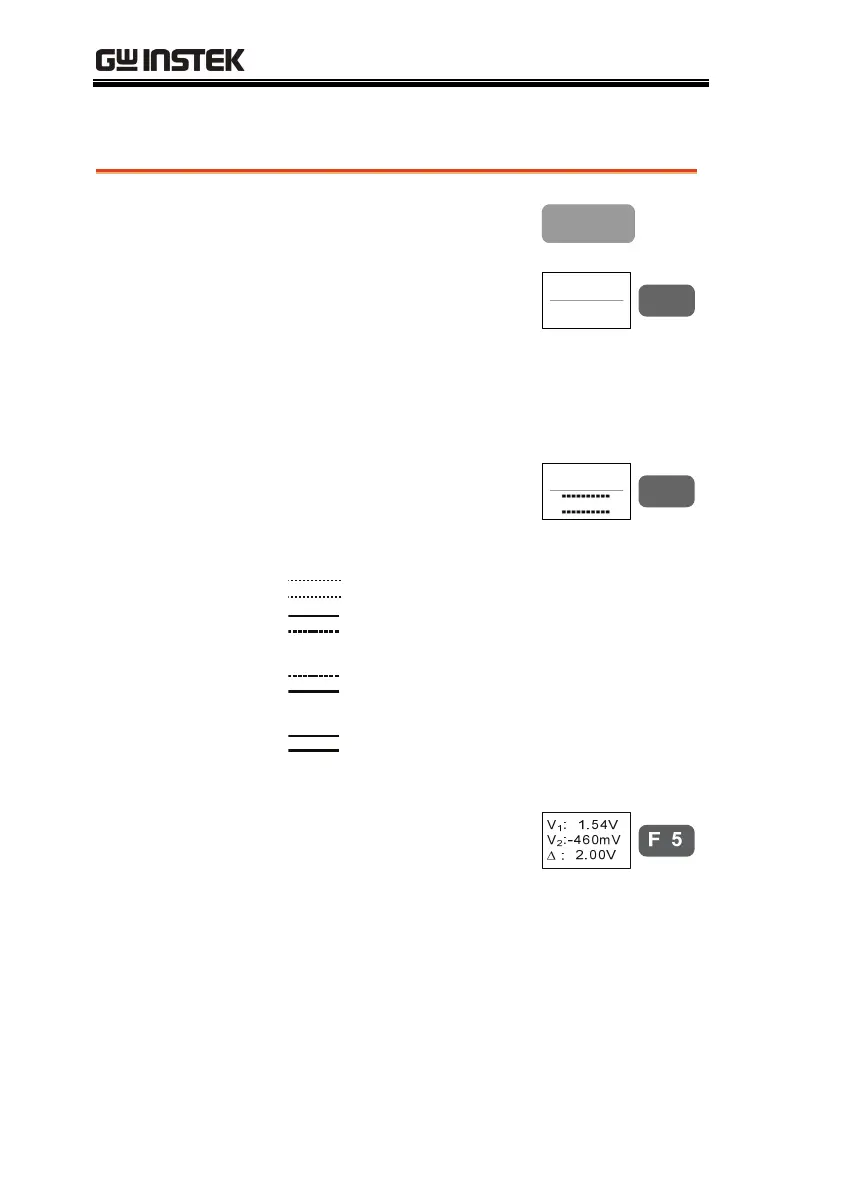

Use vertical cursor
Panel operation/
Range
1. Press the Cursor key.
Cursor
2. Press F1 (Source) repeatedly
to select the source channel.
Source
CH1
F 1
Range
4CH model
CH1, 2, 3, 4, Math
2CH model
CH1, 2, Math
3. Press F2 (Vertical)
repeatedly to activate the
vertical cursor.
Vertical
F 3
Range
Vertical cursor not activated
Upper cursor movable, lower
cursor position fixed
Lower cursor movable, upper
cursor position fixed
Upper and lower cursor movable
together
4. The cursor position
information appears on F5
menu.
Parameter
V
1
Voltage level of the upper cursor
V
2
Voltage level of the lower cursor
∆
The voltage difference between
the upper and lower cursor
