CONFIGURATION
85

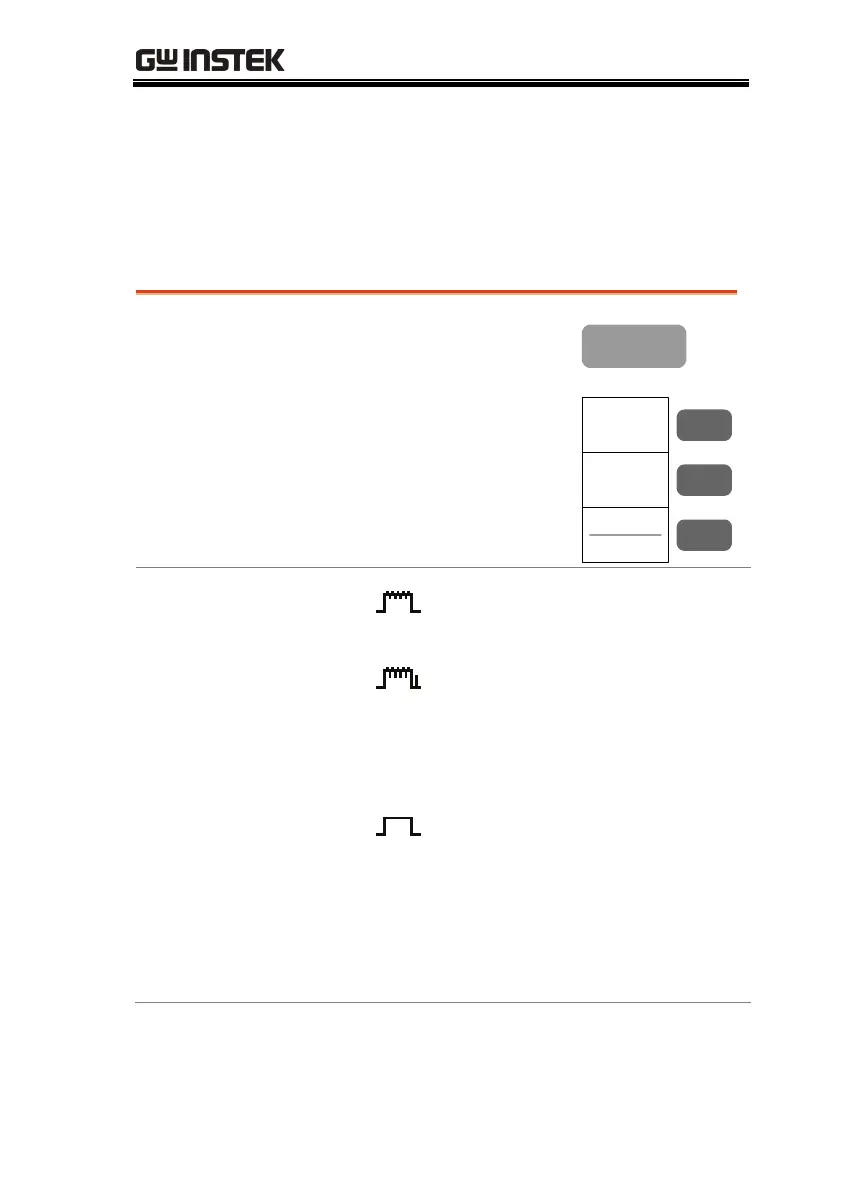

Acquisition
Acquisition process samples the analog input signals and converts
them into digital format for internal processing.
Select acquisition mode
Panel operation
1. Press the Acquire key.
Acquire
2. Select the acquisition mode
from F1 (Normal) ~ F3
(Average). The acquisition
icon on the top right corner
of the display changes
accordingly.
Normal
F 1
Peak
Detect
F 2
Average
2
F 3
Range Normal
All of the acquired data is used to
draw the waveform.
Peak
Detect
Only the minimum and maximum
value pairs for each acquisition
interval (bucket) are used. This
mode is useful for catching
abnormal glitches in the signal.
Average
Multiple acquired data are
averaged. This mode is useful for
drawing a noise-free waveform.
To select the average number,
press F3 repeatedly.
Average number: 2, 4, 8, 16, 32, 64,
128, 256
