SAVE/RECALL
139

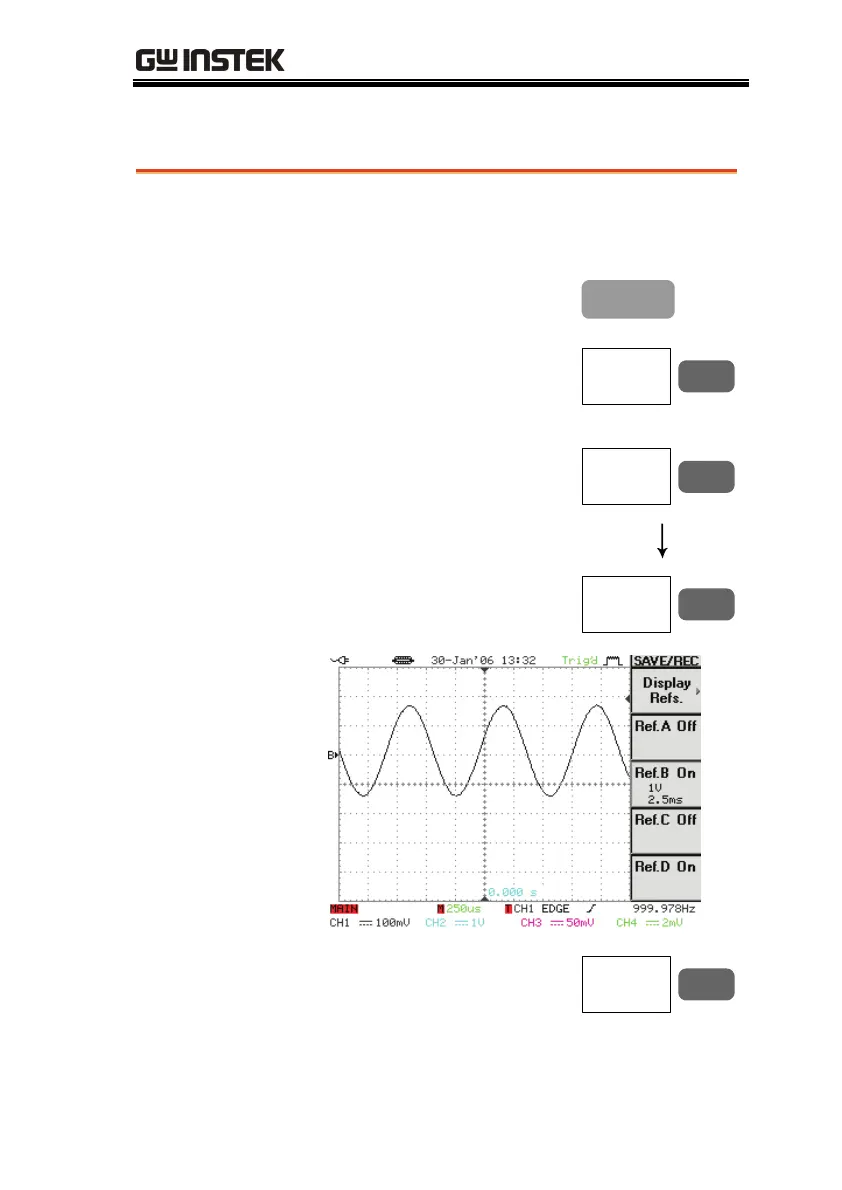

Recall reference waveform on the display
Panel operation
1. The reference waveform must be stored in
advance. See page for waveform store details.
2. Press the Save/Recall key.
Save/Recall
3. Press F2 (Display Refs). The
reference waveform display
menu appears.
Display
Refs.
F 2
4. Select the reference
waveform from F1 (Ref A)
to F4 (Ref D) and press it.
The waveform appears on
the display and the period
and amplitude of the
waveform appears in the
menu.
Ref.A Off
F 2
Ref.A On
F 2
1V
2.5ms
5. To clear the waveform from
the display, press F1 ~ F4
key again.
Ref.A Off
F 2
To Next Page
