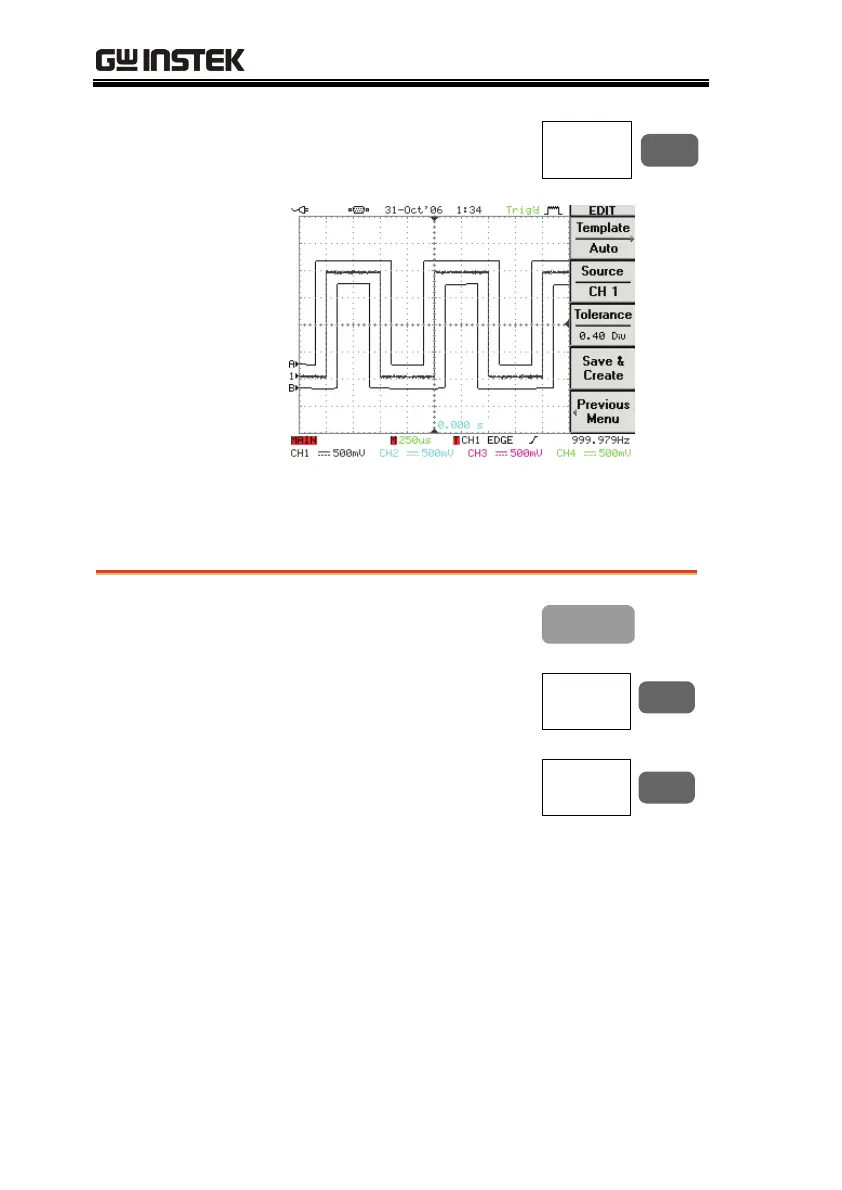

GDS-2000 Series User Manual
76
10. When the templates are set,
press F4 (Save & Create) to
save it.
Save &
Create
F 4
Run Go-NoGo test
This section assumes all Go-NoGo settings (page69) are completed.
Panel operation
1. Press the Utility key.
Utility
2. Press F5 (More).
More
F 5
3. Press F3 (Go-NoGo Menu).
Go-NoGo
Menu
F 3
4. Make sure the source signal and the templates
(boundary) both appear on the display.
