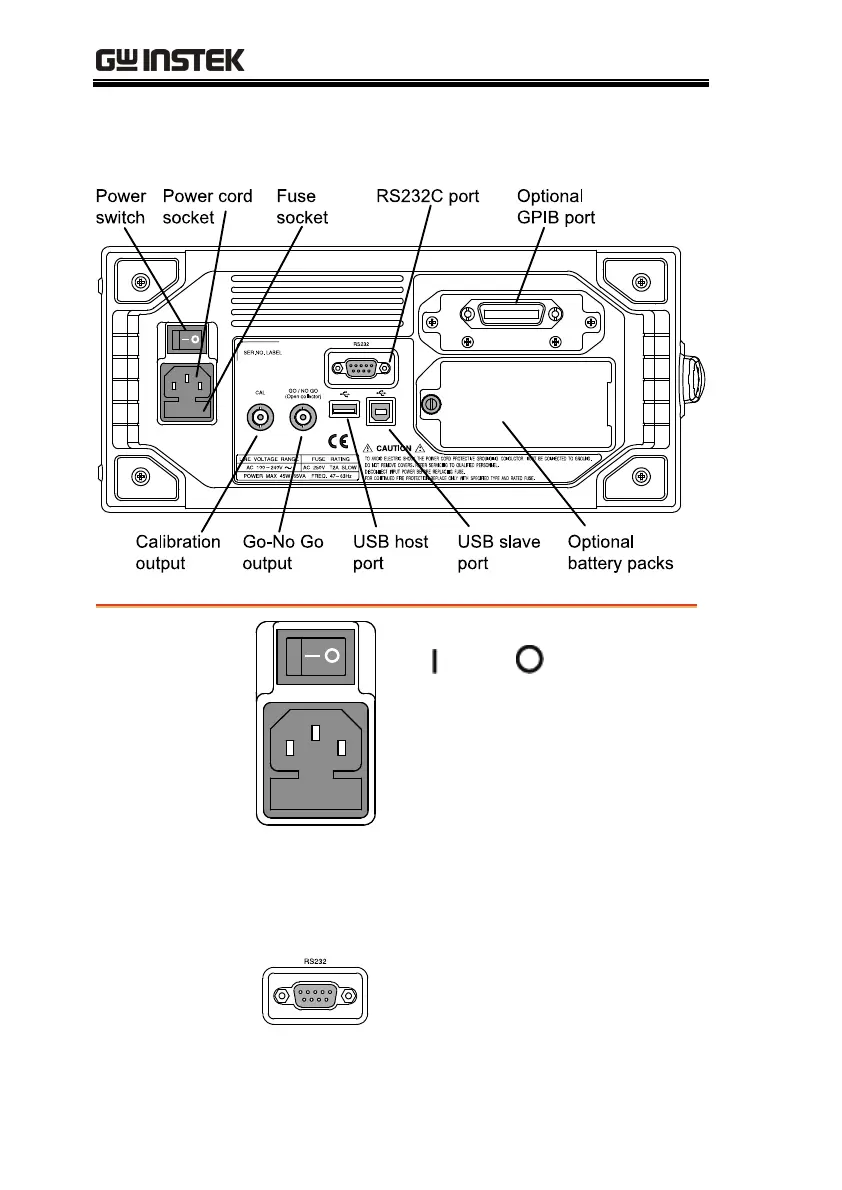

Rear Panel
Power switch
Power cord
socket
Fuse socket
Power switch turns the main power
On (
) / Off ( ).
Power cord socket accepts AC
mains, 100 ~ 240V, 50/60Hz.
Fuse socket holds AC main fuse,
T2A/250V.
For power up sequence, see page23.
For fuse replacement procedure, see
page164.
RS232C port
Accepts DB-9 RS-232C connector
for remote control (page151).
