GETTING STARTED
19

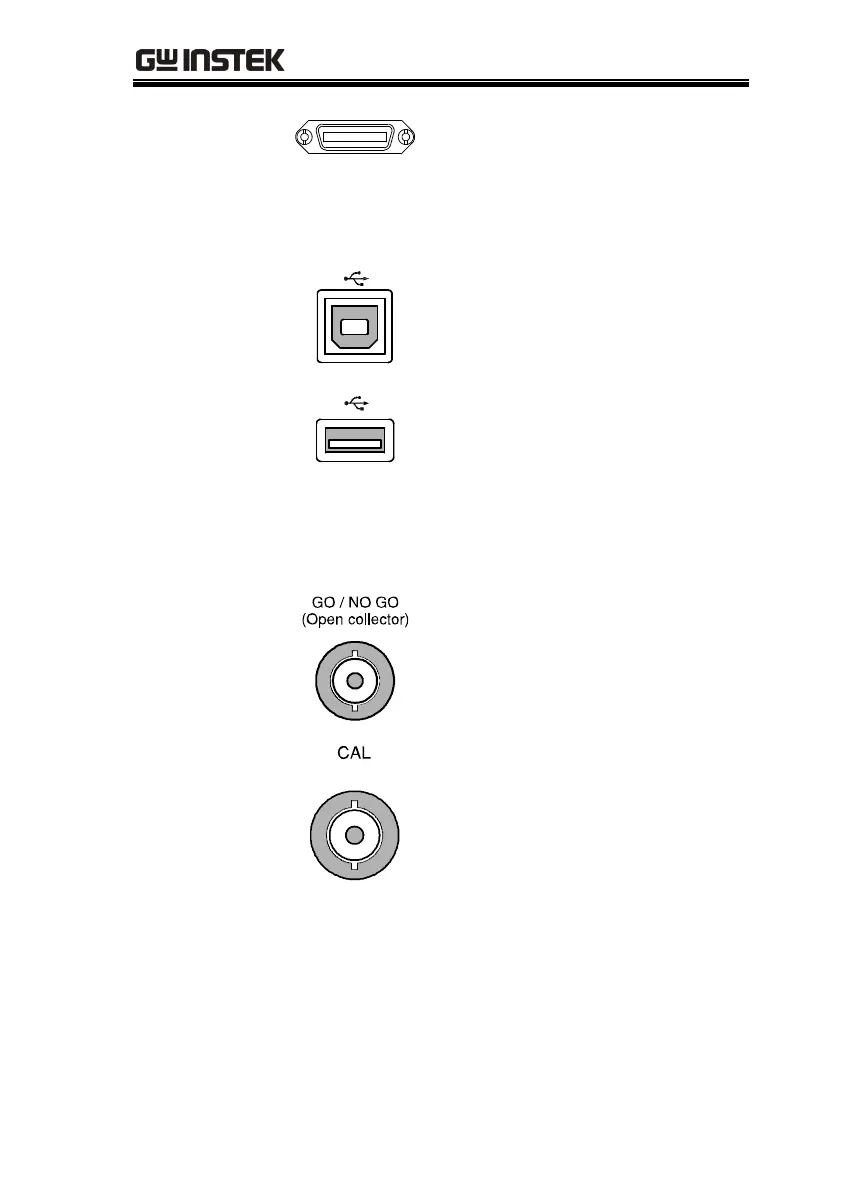

GPIB port
(optional)
Accepts 24 pin male GPIB connector
for remote control (page153).
Battery packs
(optional)
Holds 2 packs of Li-Ion battery for portable usage
(page156).
USB slave port
Accepts typeB connector for remote
control (page150) or PC software
connection. USB 1.1/2.0 full speed
compatible.
USB host port
Accepts typeA connector for
display image printout (page146) or
data transfer (page119).
Simultaneous use with the front
panel host port is not allowed.
TypeA, 1.1/2.0 full speed
compatible.
Go-No Go output
Outputs Go-No Go test result
(page69) as 10us pulse signal.
Calibration
output
Outputs the signal for vertical scale
accuracy calibration (page158).
