GDS-2000 Series User Manual
96

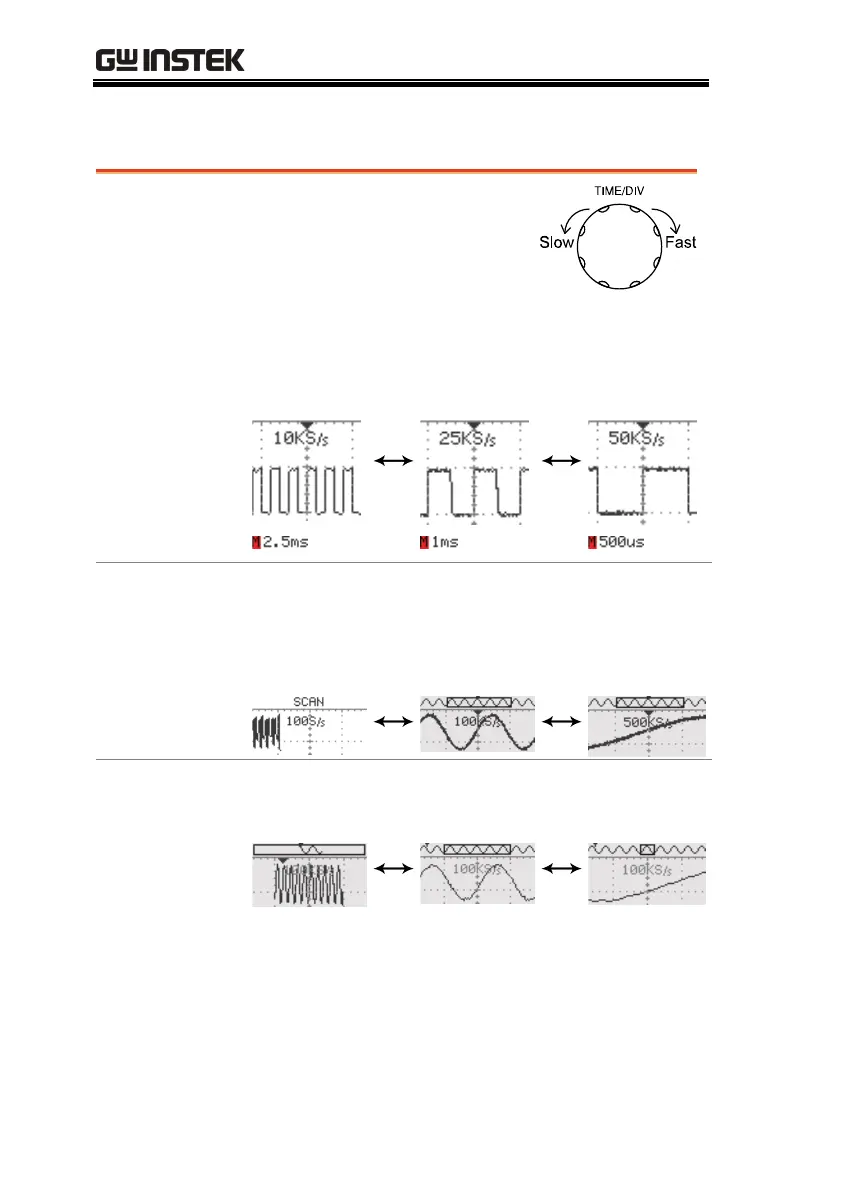

Select horizontal scale
Select horizontal
scale
To select the timebase (scale),
turn the TIME/DIV knob; left
(slow) or right (fast).
Range 1ns/Div ~ 10s/Div, 1-2-5 increment
The corresponding sampling rate appears on the
upper side of the display. The timebase indicator
appears on the lower side.
Run mode
In Run mode, the memory bar and waveform size
keep their proportion. When the timebase becomes
slower, it automatically switches to Scan mode (see
the next page).
Stop mode
In Stop mode, the memory bar and waveform size
changes according to the scale.
