MEASUREMENT
61
Parameter
T
1
Time position of the left cursor
T
2
Time position of the right cursor
∆
The time distance between the left
and right cursor
f
The time distance (∆) converted to
frequency
5. Use the Variable knob to
move the cursor left or right.
The F4 content changes
accordingly.

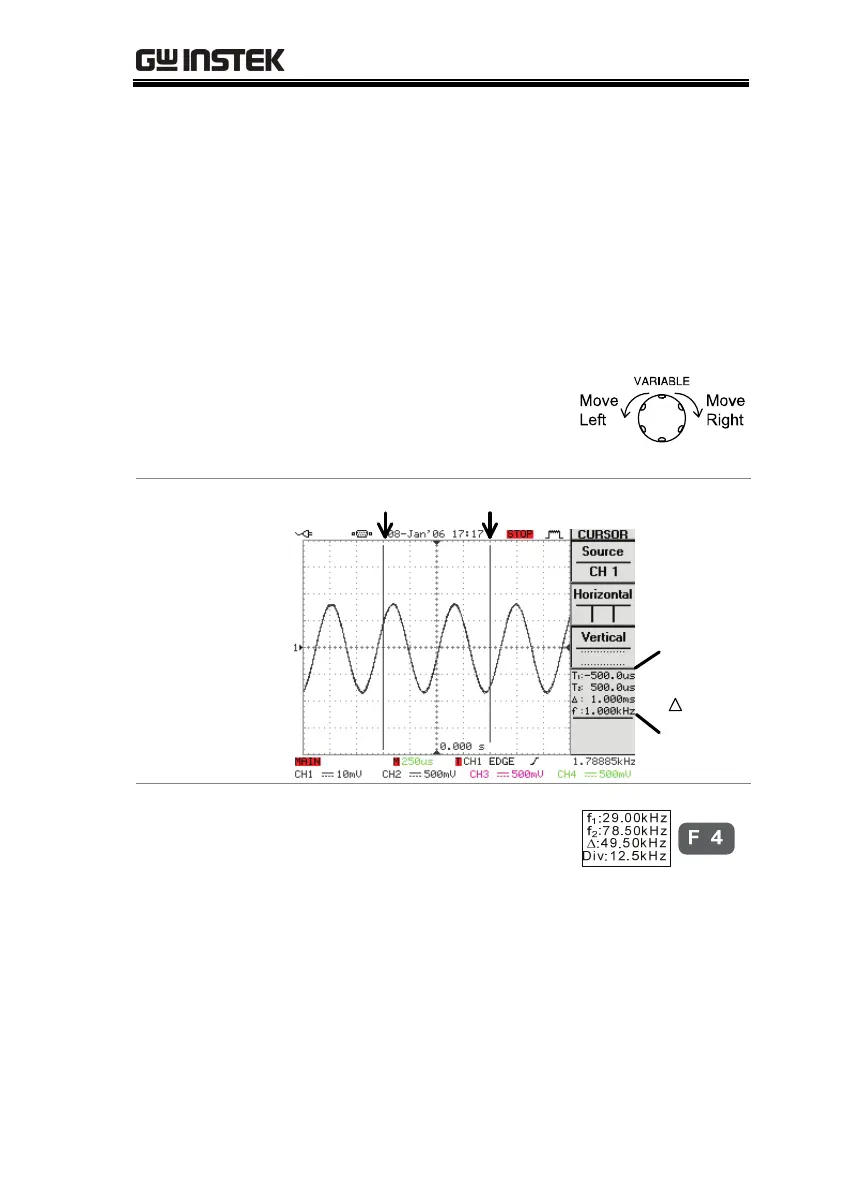

Example
T1
T2
f
T1 T2
FFT Math
The FFT Math has different F4
content. For FFT math details,
see page67.
f1
Frequency position of the left cursor
f
2
Frequency position of the right cursor
∆
The frequency distance between the
left and right cursor
Div
The frequency distance per horizontal
division
