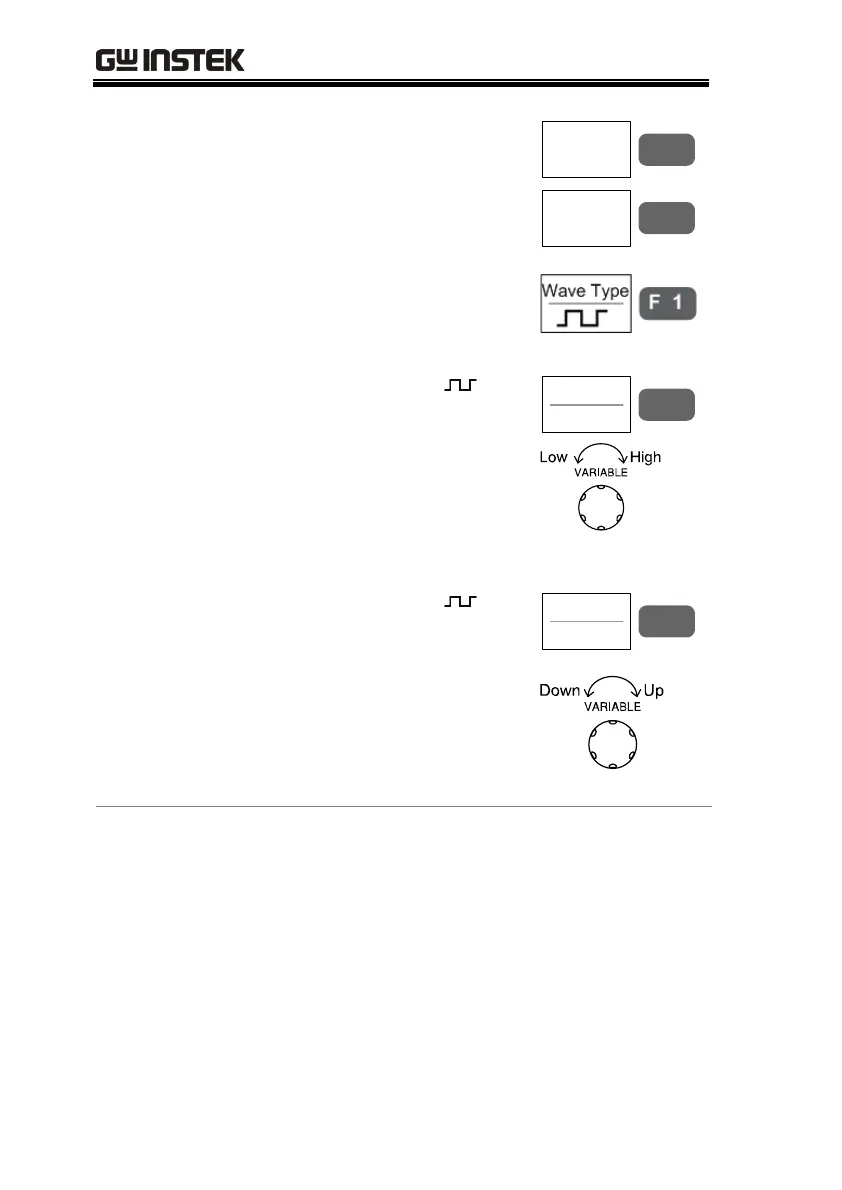

3. Press F5 (More) twice.
More
F 5
More
F 5
4. Press F1 (Wave type)
repeatedly to select the
wave type.
5. (For square wave
only)
To change the frequency,
press F2 (Frequency) and
use the Variable knob.
Frequency
1 K
F 2
Range
1kHz ~ 100kHz
6. (For square wave
only)
To change the duty cycle,
press F3 (Duty Cycle) and
use the Variable knob.
Duty Cycle
50%
F 3
Range
5% ~ 95%
Probe
compensation
For probe compensation details, see page159.
