Long memory
effect using probe
comp. waveform

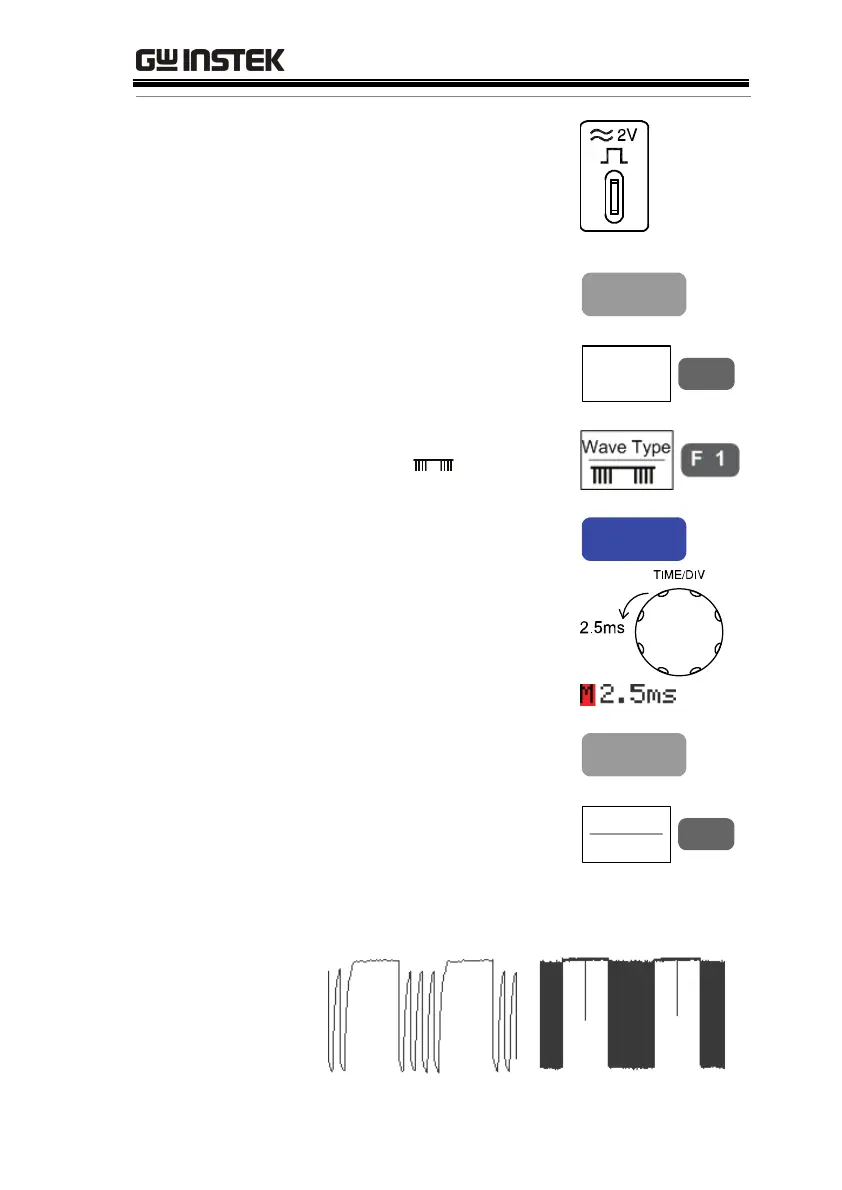

1. One of the probe
compensation waveform
can demonstrate long
memory mode. Connect the
probe to the output.
2. Press the Utility key.
Utility
3. Press F5 (More) twice.
More
F 5
4. Press F1 (Wave Type) and
select the
waveform.
5. Press the Auto Set key.
GDS-2000 positions the
waveform in the center of
the display. Set the
horizontal scale to 2.5ms to
observe the whole
waveform shape.
Auto Set
6. Press the Acquire key.
Acquire
7. Press F5 (Mem Leng)
repeatedly to switch
between short and long
memory length.
Mem Leng
500
F 5
Short memory
Long memory
