GW Instek GDS-2000 Series User Manual

GDS-2000 Series User Manual
98

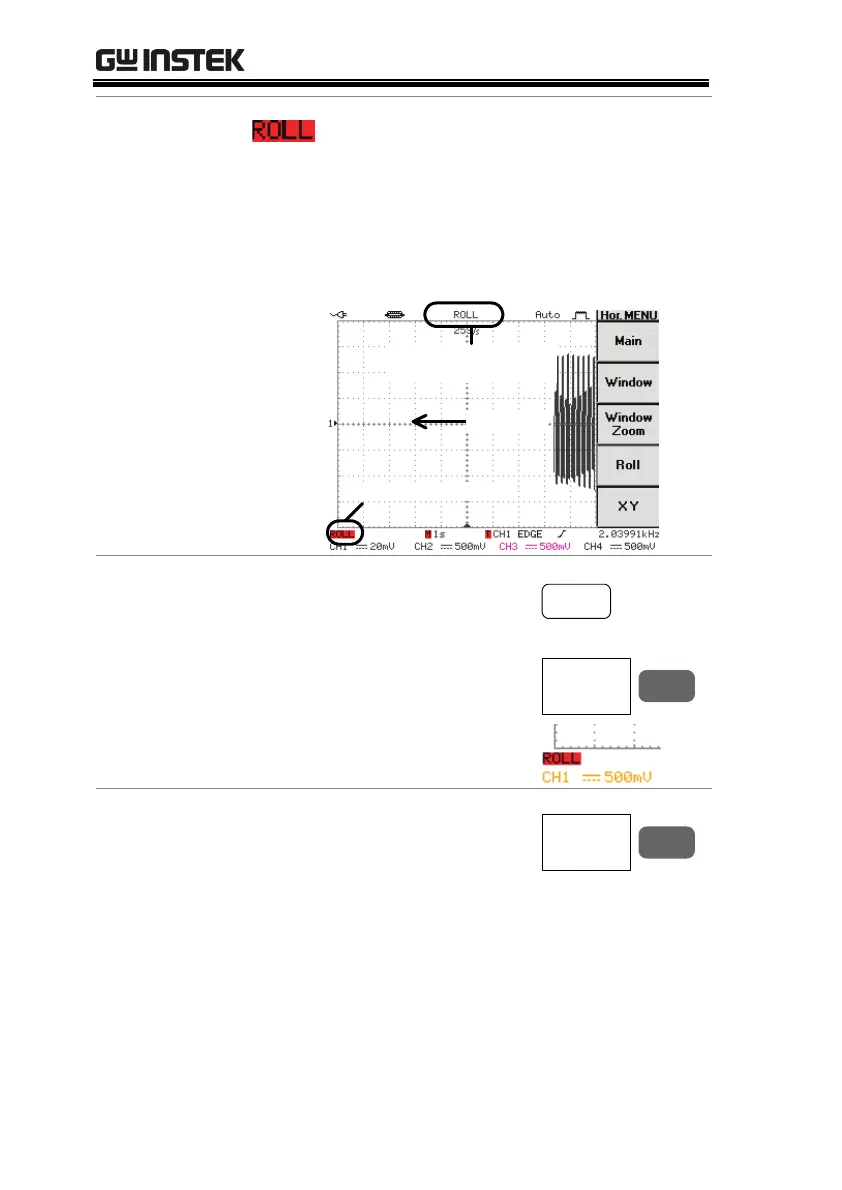

Roll mode
Updates and moves the waveform
gradually from the right side of the
display to the left. Manually selected when
the timebase (sampling rate) is slow.
Timebase
≥250ms/div (≤100Sa/s)
Trigger
all modes
Waveform
Roll mode indicator
Roll mode indicator
(memory bar replaced)
Select Roll mode
manually
1. Press the Horizontal menu
key.
HORI
MENU
2. Press F4 (Roll). The
waveform starts scrolling
from the right side of the
display. The update mode
indicator shows Roll mode.
Roll
F 4
Note
The Roll mode locks the
timebase to be at least
250ms/div (100Sa/s). If faster
timebase or sampling rate is
required, get out of the Roll
mode by pressing F1 (Main).
Main
F 1
