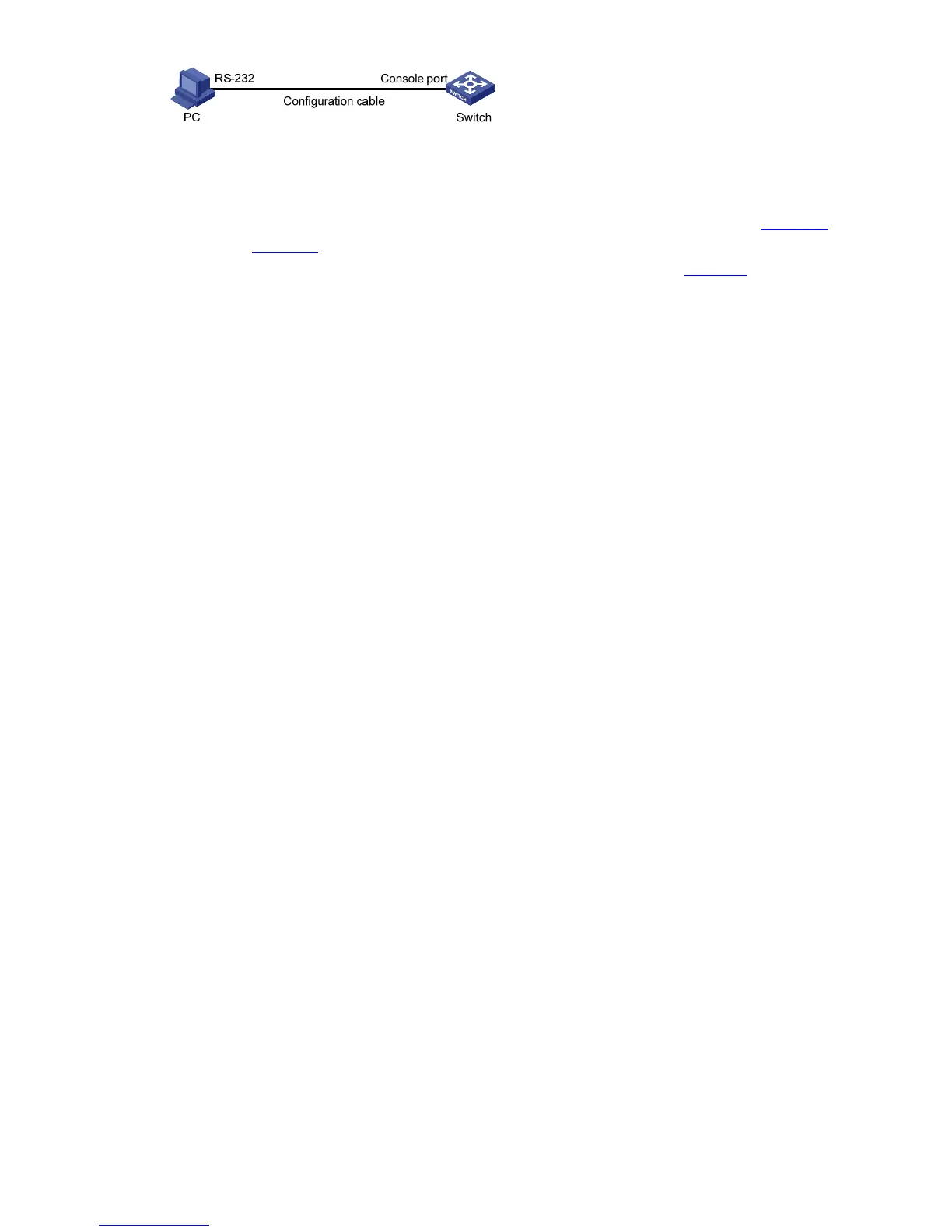

Figure 2-1 Diagram for connecting to the console port of a switch
2) If you use a PC to connect to the console port, launch a terminal emulation utility (such as Terminal
in Windows 3.X or HyperTerminal in Windows 9X/Windows 2000/Windows XP. The following
assumes that you are running Windows XP) and perform the configuration shown in
Figure 2-2
through
Figure 2-4 for the connection to be created. Normally, both sides (that is, the serial port of
the PC and the console port of the switch) are configured as those listed in
Table 2-1.
