H3C S5100-SI

2-3

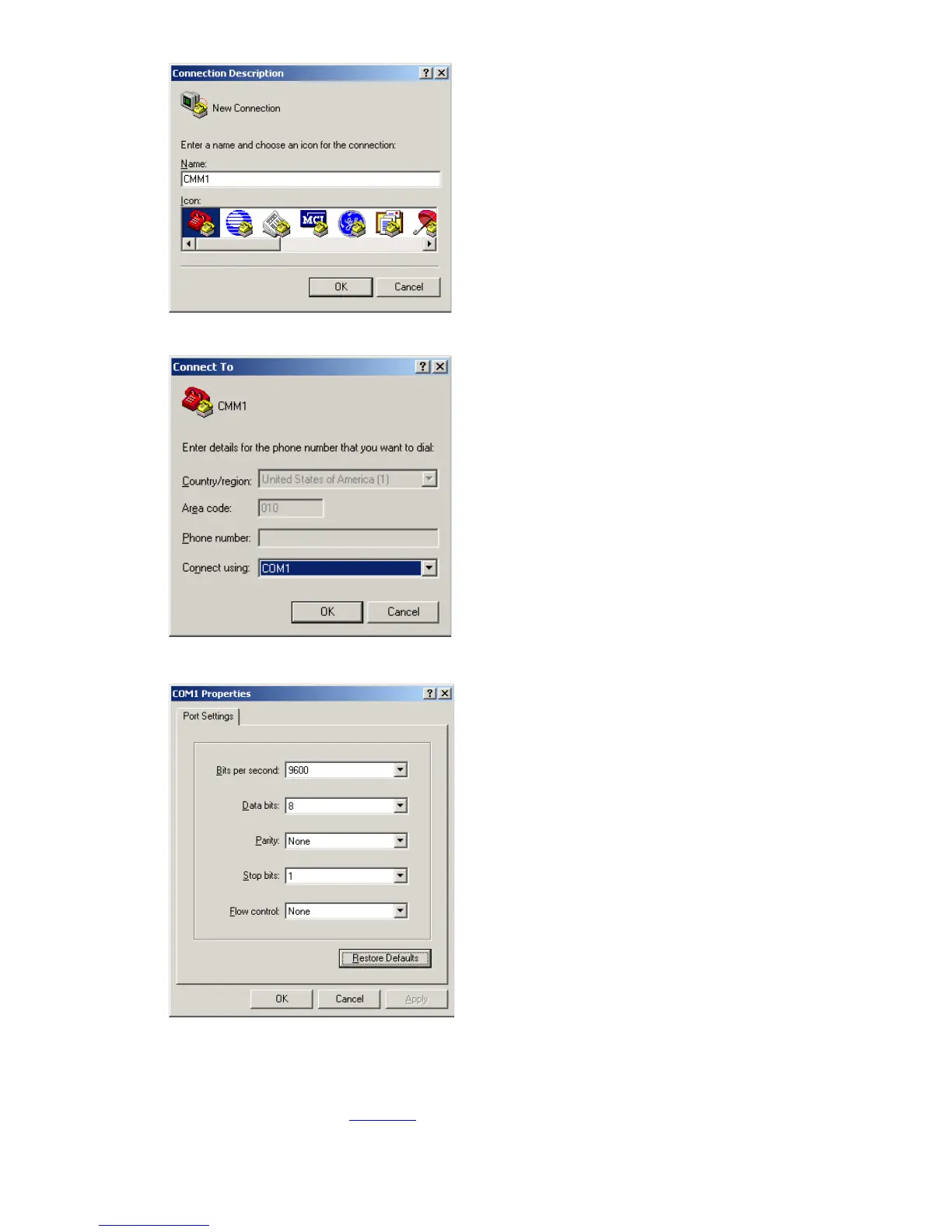

Figure 2-2 Create a connection
Figure 2-3 Specify the port used to establish the connection
Figure 2-4 Set port parameters
3) Turn on the switch. You will be prompted to press the Enter key if the switch successfully
completes POST (power-on self test). The prompt (such as <H3C>) appears after you press the
Enter key, as shown in
Figure 2-5.
