71

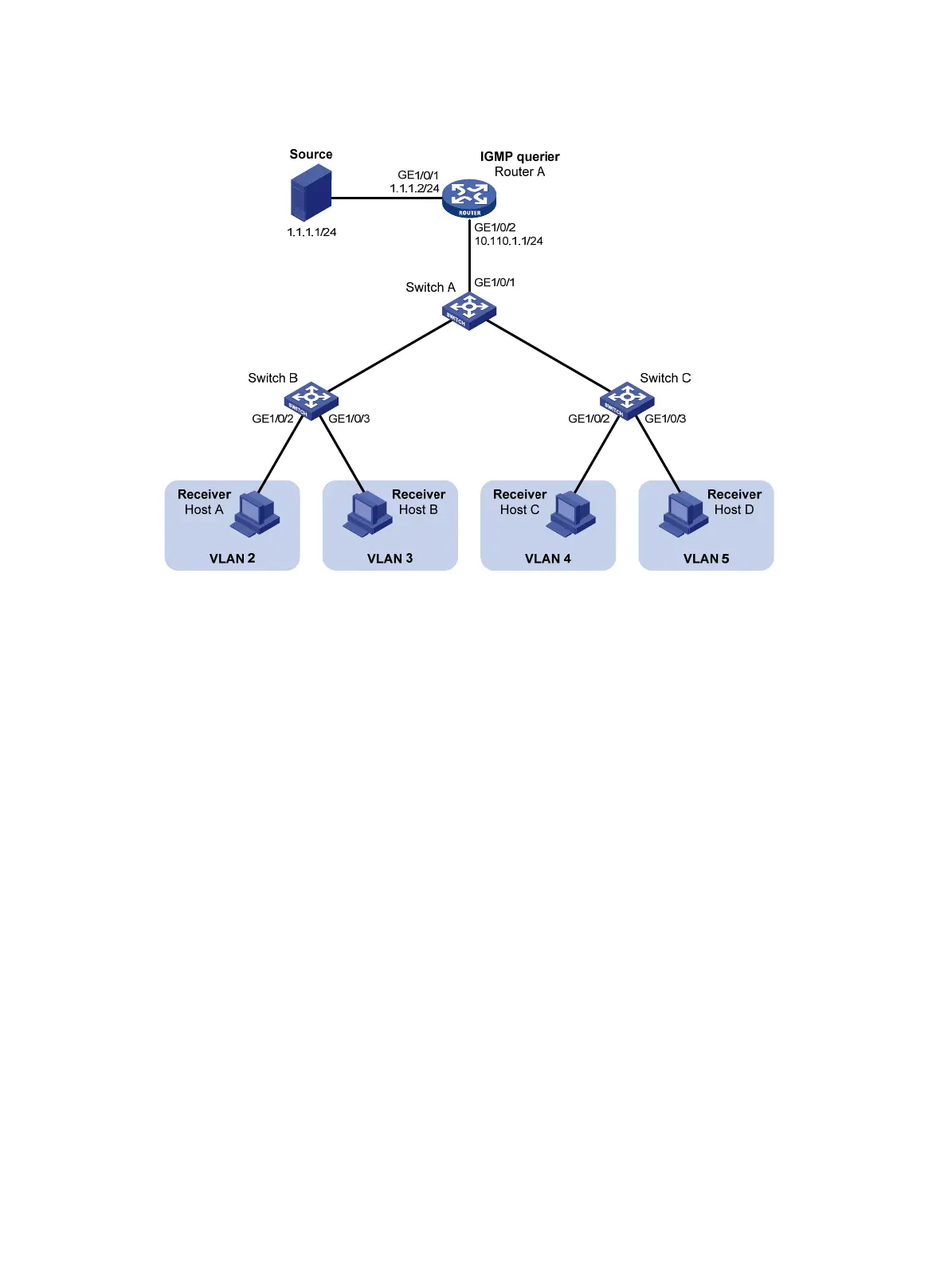

Figure 24 Network diagram
Configuration procedure
1. Configure an IP address and subnet mask for each interface as per Figure 24. (Details not shown.)
2. On Router A, enable IP multicast routing, enable PIM-DM on each interface and enable IGMP on
the host-side interface GigabitEthernet 1/0/2.
<RouterA> system-view
[RouterA] multicast routing-enable
[RouterA] interface gigabitethernet 1/0/1
[RouterA-GigabitEthernet1/0/1] pim dm
[RouterA-GigabitEthernet1/0/1] quit
[RouterA] interface gigabitethernet 1/0/2
[RouterA-GigabitEthernet1/0/2] pim dm
[RouterA-GigabitEthernet1/0/2] igmp enable
3. Configure Switch A:
# Enable IGMP snooping globally.
<SwitchA> system-view
[SwitchA] igmp-snooping
[SwitchA-igmp-snooping] quit
# Create VLAN 2 through VLAN 5.
[SwitchA] vlan 2 to 5
# Configure GigabitEthernet 1/0/2 as a trunk port, and assign it to VLAN 2 and VLAN 3.
[SwitchA] interface gigabitethernet 1/0/2
[SwitchA-GigabitEthernet1/0/2] port link-type trunk
[SwitchA-GigabitEthernet1/0/2] port trunk permit vlan 2 3
GE
1
/
0
/
2
G
E
1
/
0
/
3
G
E
1
/
0
/
1
G
E
1
/
0
/
1
