95
Step5 Use one hand to slowly move the card outwards. Supporting the bottom of the card with the other hand,
pull the card out of the slot along slide rails, as shown in callout 3 on Figure 51.
Step6 Put the removed card on the antistatic mat.
Step7 Install a new card. For the installation procedures, see the chapter “Installing modules.”

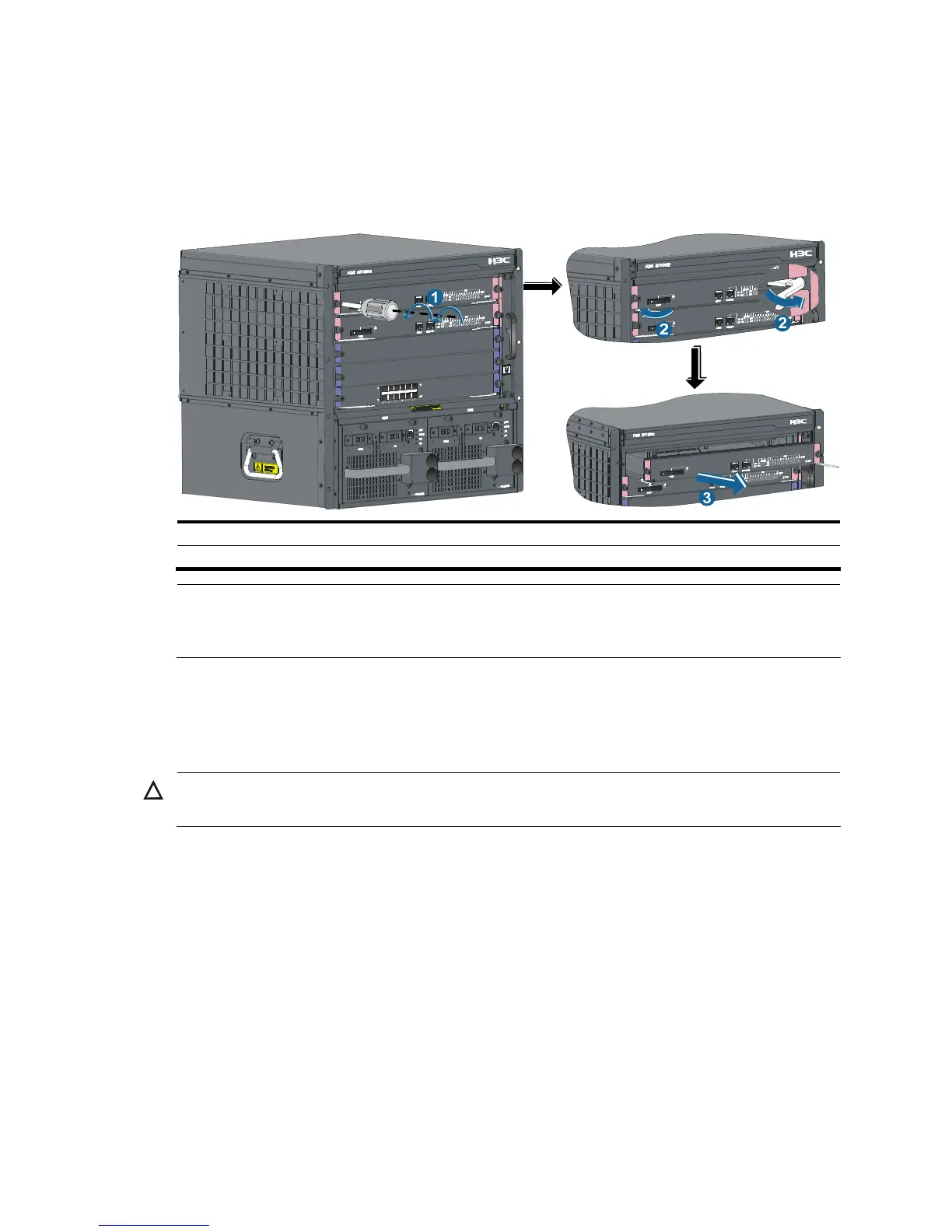

Figure 51 Replace a card
1: Loosen the captive screw 2: Move the ejector levers outwards
3: Supporting the bottom of the card, pull out the card
NOTE:
If no new card is to be installed, install a blank panel
dust from entering the switch.
Replacing a fan tray
When the fan tray fails, replace the fan tray to ensure normal operation of the switch.
CAUTION:
When replacing the fan tray, do not touch the rotating fans to avoid bodily injury.
The fan tray handle of the S7506E-V is different from other models.
• The fan tray handle of the S7506E-V adopts a snap-in design. To remove or install a fan tray, rotate
the handle out first, as shown in Figure 52.
• Th
e fan tray handle of the other models of the S7500E series is fixed to the fan tray, as shown in
Figure 53.
Replacing an S7506E-V fan tray
Removing a fan tray
Follow these steps to remove the fan tray:
Step1 Prepare an antistatic mat to place the removed fan tray.
