22

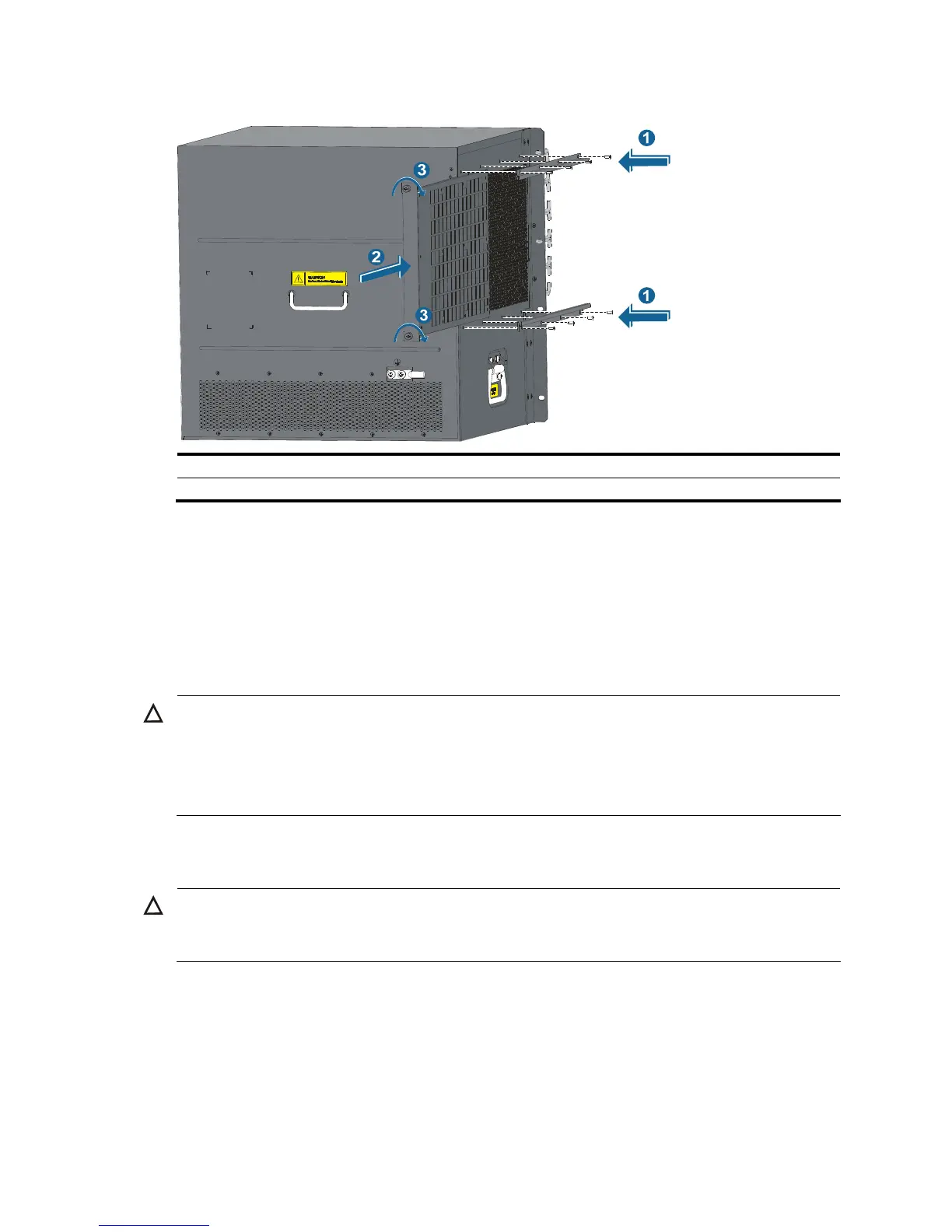

Figure 16 Install an air filter (S7503E)
1: Fix the fastening strips onto the chassis 2: Push the air filter in between the fastening strips
3: Fasten the captive screws
Mounting the switch to the rack
Follow these steps to mount the switch to the rack:
Step1 Face the rear of the chassis towards the front of the rack.
Step2 Use at least two persons to lift the switch until the bottom of the switch is a little higher than the slide rails
on the rack.
CAUTION:
• Do not hold the handle of the fan tray, power module, or
the back cover of the chassis, or the air vents
of chassis. Any attempt to carry the switch with these parts may cause equipment damage or even
bodily injury.
• Use a mechanical lift for switches of a high weight.
Step3 Place the switch on the slide rails and slide the switch along the slide rails until the mounting brackets on
the switch touch the front rack posts, as shown in callout 1 on Figure 17.
CAUTION:
After placing the switch on the slide rails, do not leave
o of your hands immediately because this may tip
and damage the switch, and even cause bodily injury.
Step4 Fix the chassis to the rack with mounting screws.
