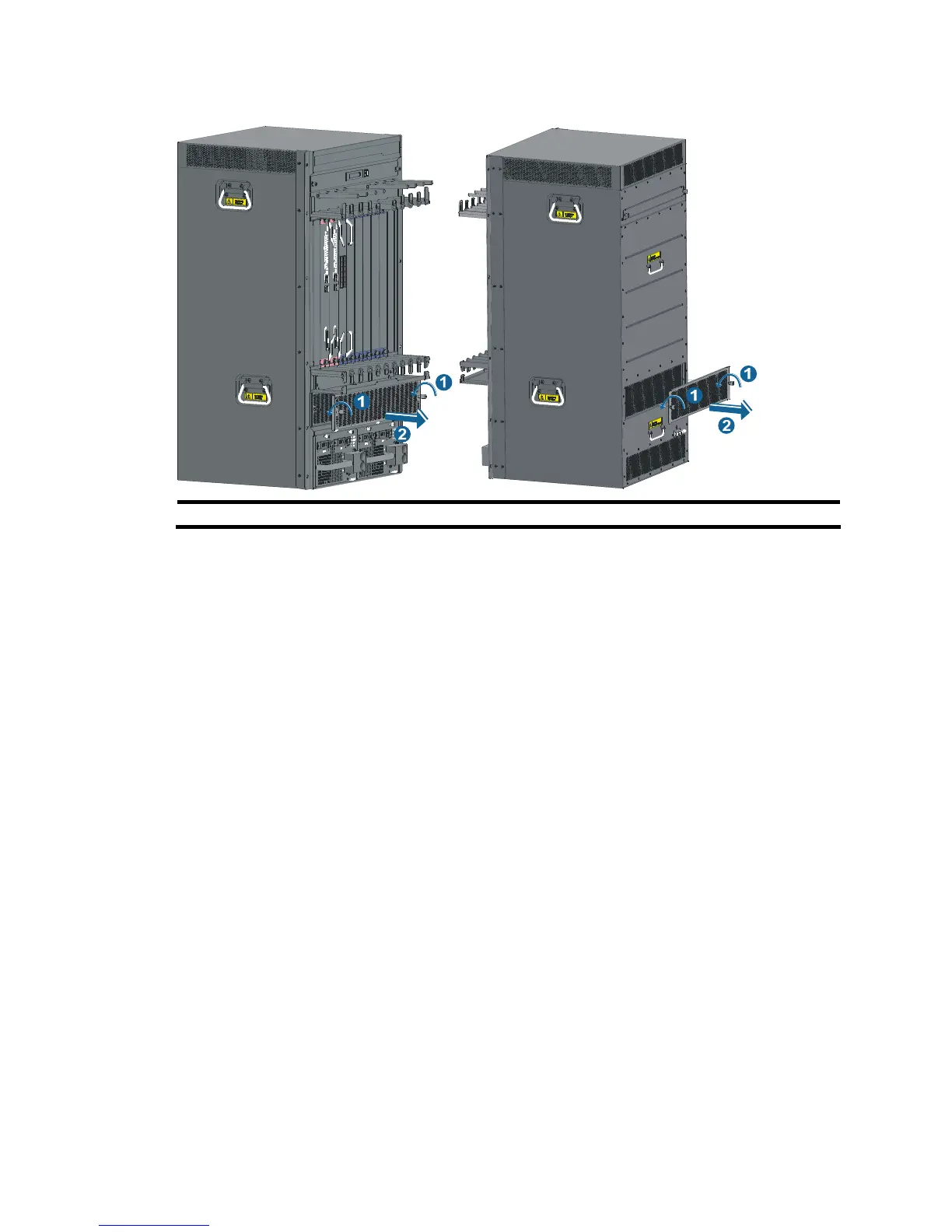

Figure 54 Replace an air filter for S7506E-V
1: Loosen the captive screws on the air filters with a screw driver 2: Remove the air filters from the chassis
Replacing an air filter for the other models
Follow these steps to replace an air filter:
Step1 Loosen the captive screw on the air filter, as shown in callout 1 on Figure 55.
Step2 Seize the captive screws on the air filter and slowly pull the air filter out of the chassis, as shown in callout
2 on Figure 55.
Step3 Install the cleaned air filter to the switch. For the installation procedures, see the chapter “Installing the
switch.”
