3 - Description
52

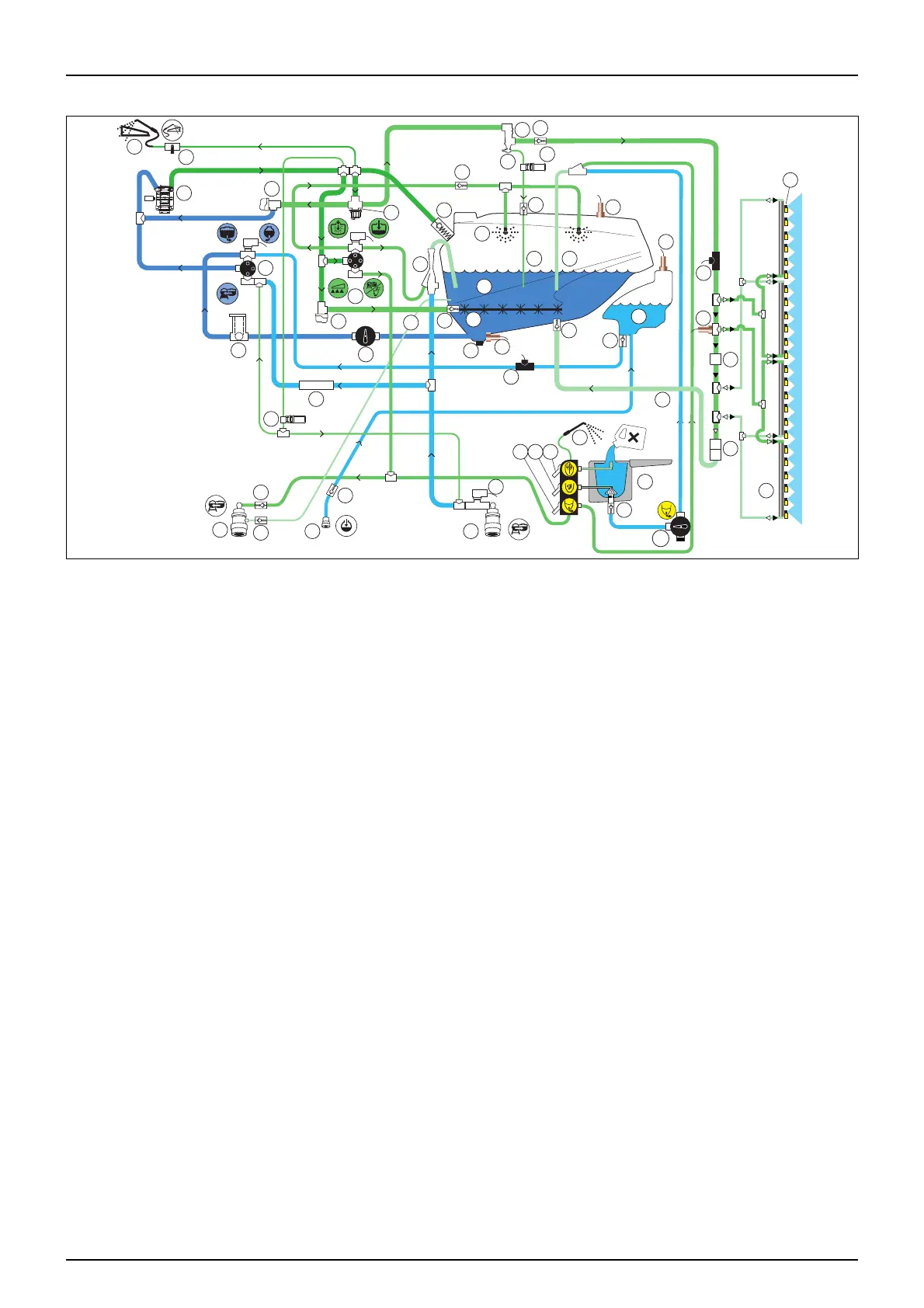

Diagram - Intelligent liquid system with optional extras
1. Suction SmartValve
2. Pressure SmartValve
3. Agitation/Cleaning valve
4. Chemical container cleaning valve
5. TurboDeflector ON/OFF valve
6. TurboFiller suction ON/OFF valve
7. Pump
8. Main tank
9. Easy Clean filter
10. Rinse tank
11. Spray valve
12. CycloneFilter
13. TurboFiller
14. Lance for cleaning TurboFiller
15. Safety valve
16. Internal tank cleaning nozzles
17. Agitation tube
18. Return line for boost function
19. TurboFiller to tank tube
20. Rinse tank coupler
21. DynamicFluid4 pressure regulation valve
22. One-way valve
23. Drain valve
24. Sprayer boom
25. Flowmeter
26. Distribution valves
27. Sensor for pressure gauge
28. Suction In-line filter
29. Suction In-line filter
30. Main tank gauge sensor
31. Pressure draining coupler
32. FastFiller coupler
33. External cleaning device
34. External cleaning ON/OFF valve
35. Auto Agitation valve
36. PrimeFlow ON/OFF valve (optional)
37. Boost valve
38. Ejector
39. Main tank suction ON/OFF valve
40. Boost line ON/OFF valve
41. Pressure relief line
42. Clean valve
43. Rinse tank flowmeter
44. External Fast filling ON/OFF valve
45. Main tank full sensor
46. TurboFiller ON/OFF valve
47. Rinse tank full sensor
42
43
29
45
40
47
44
32
9
31
22
22
20
30
23
17
35
39
22
10
41
1
2
38
15
22
22
37
21
7
34
33
11
22
16
14
6
13
22
5 4
8
18 19
22
46
24
36
26
27
26
25
22
22
12
29
