5 - Operation
139

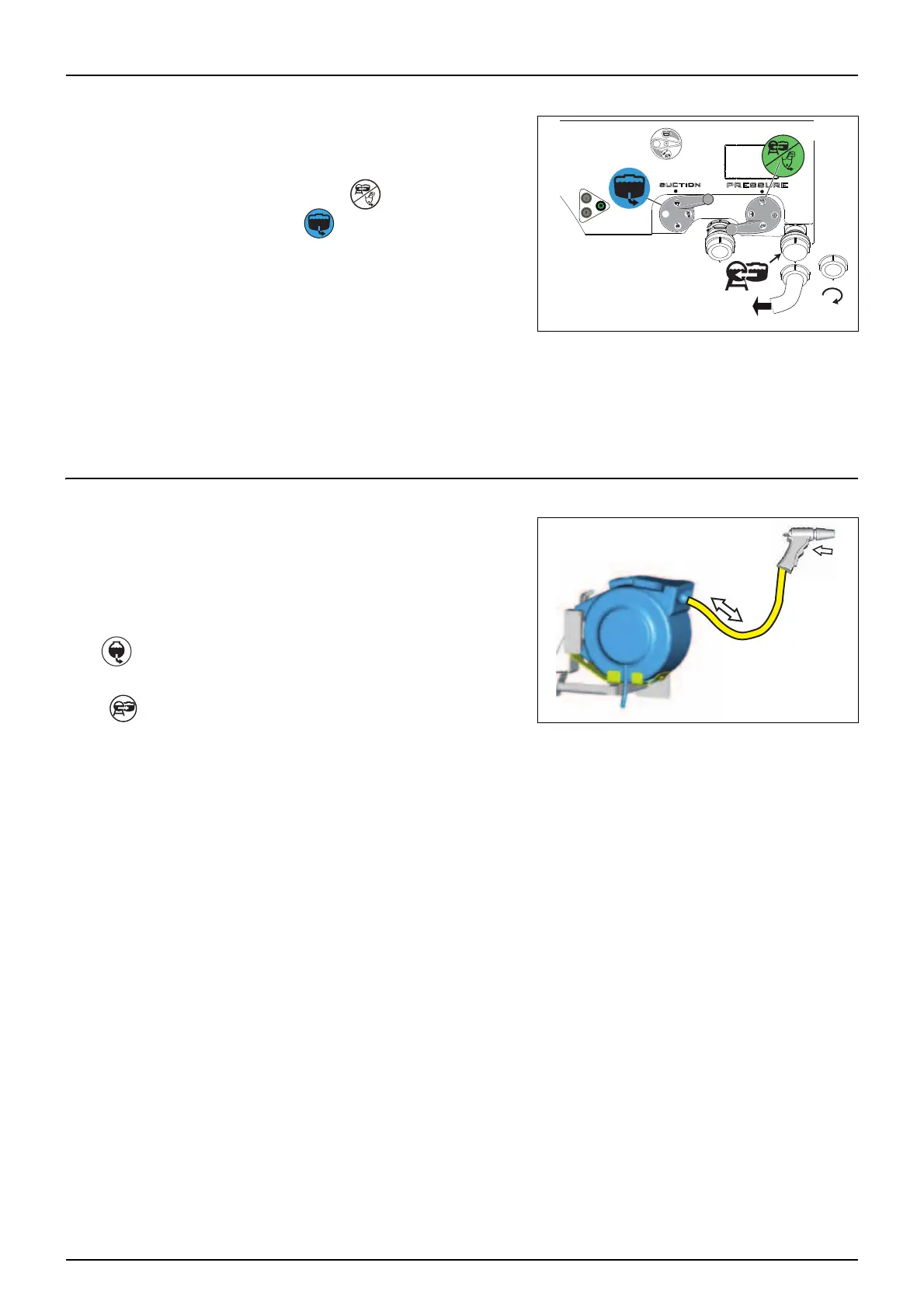

Pressure Draining
It is possible to drain to an external tank. This is done the following way:
1. Connect a hose from an external tank to the quick coupler on the
sprayer.
2. Turn the Pressure SmartValve towards
3. Turn the suction valve towards
4. Start the pump.
5. When the tank is drained, then turn off the pump again.
6. Disconnect the hose and mount the cap for the quick coupler.
€
DANGER! Ensure that the cap for the quick coupler is correctly mounted on the filling stud in its locked position.
Failure to do so causes a risk of contamination and injury from the quick coupler cap being “shot” off when
pressurized! If it is not possible to mount the lid completely, lubricate the rubber seal and the grip hooks and try again.
Outside Cleaning - Use of External Cleaning Device
Use the External Cleaning Device to wash everything on the outside of
the sprayer.
1. Unroll the hose from the reel.
2. Engage pump speed to approximately 250 r.p.m.
3. Set the suction SmartValve for
’’Suction from Rinsing tank’’
and pressure SmartValve for
’’External filling device’’ or unused function.
4. Turn ball valve (position A) and clean the sprayer with the spray gun.
5. After cleaning, close the ball valve (position B) again.
6. Roll the hose on the reel again.
€
Before setting Pressure SmartValve to , it is very important to ensure that the quick coupler lid is correctly and
completely mounted to the filling stud in its locked position. Failure to do so causes a risk of contamination and injury
from quick coupler lid being “shot” off when pressurized! If it is not possible to mount lid completely, lubricate the
rubber seal and the grip hooks.
μ
ATTENTION! If the safety valve is activated, then lower the PTO speed to minimize the amount of rinsing water being
lost into the main tank.
μ
ATTENTION! If the sprayer is cleaned with a high pressure washer, lubrication of the entire machine is recommended.
