6 - Maintenance
159
Spraying

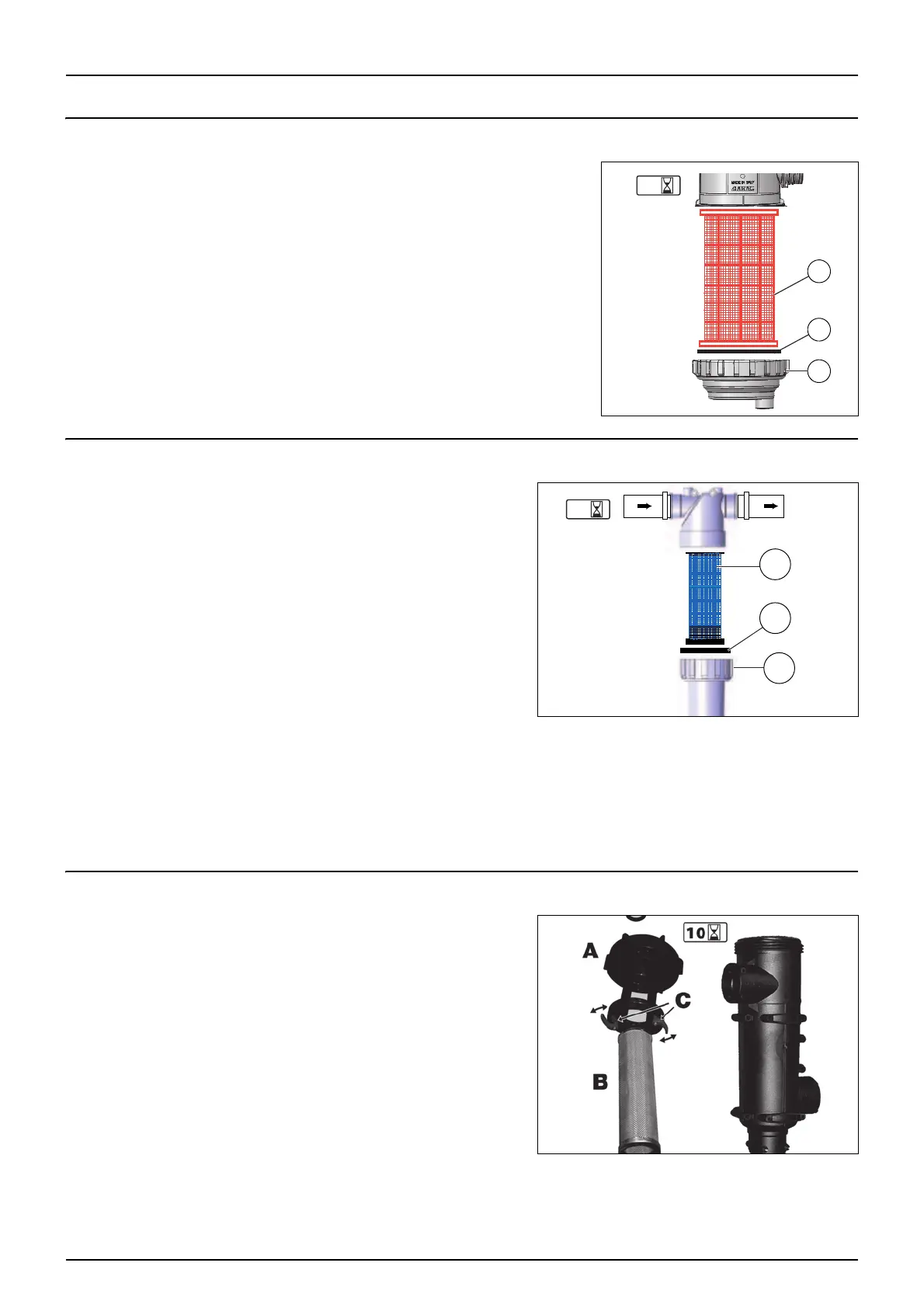

Suction filter (if fitted)
Servicing the filter
• Turn the pressure SmartValve towards the unused function or to tank
cleaning nozzles
• Unscrew the body nut (1)
• Clean the filter element (2)
Reassemble
• Grease the O-ring (3) on the body nut guide
• Install the element into the housing and screw it on the filter.
±
WARNING: Always wear protective clothing and gloves, before servicing
Pressure filter (if fitted)
Servicing the filter
• Open the valve to drain the filter
• Turn the pressure SmartValve towards the unused function or to
tank cleaning nozzles
• Unscrew the body nut (2)
• Clean the filter element (3)
Reassemble
• Grease the O-ring on the body nut guide
• Install the element into the housing and screw it on the filter
±
WARNING: Always wear protective clothing and gloves, before servicing
CycloneFilter
Servicing the Filter
1. Close the suction valve and turn the pressure SmartValve towards
the unused function or to ’tank cleaning nozzles’
2. Unscrew the filter lid (A).
3. Lift lid and filter (B) away from the housing.
4. Turn the two locks (C) outwards to unlock the filter from the lid.
5. Separate filter from the integrated filter guide in the lid. Clean the
filter.
To reassemble
1. Grease the two O-rings on the lid/filter guide. Due to small space
at the lid, use a brush to apply the grease.
2. Mount the filter onto the recess (which may not be greased) in the lid/filter guide.
3. Turn the two locks (C) inwards to lock the filter into position.
