3 - Description
65

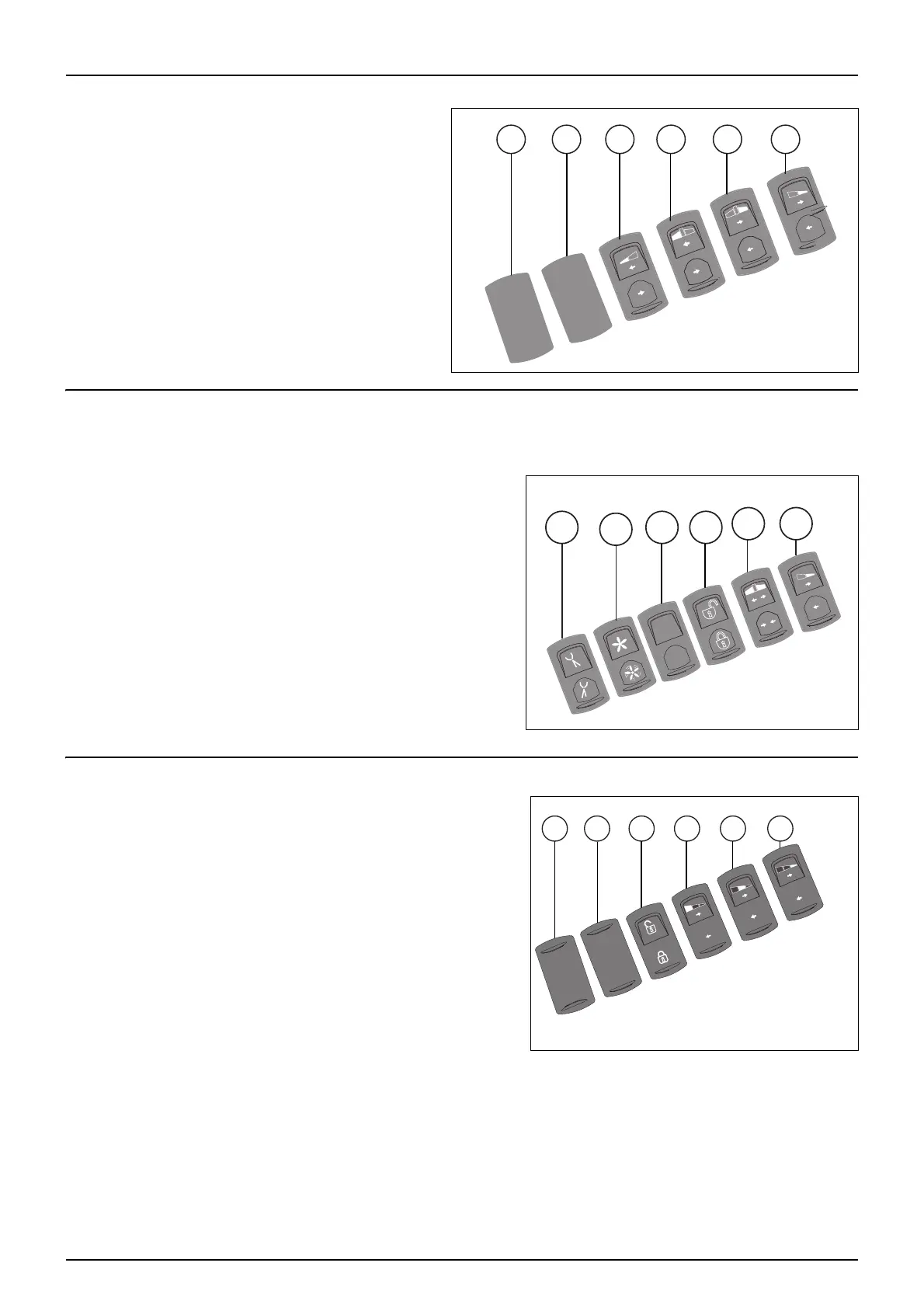

Inner and outer wings independently controlled.
1. Not used.
2. Not used.
3. Folding left outer sections.
4. Folding left inner sections.
5. Folding right inner sections.
6. Folding right outer sections
HAZ boom hydraulic function controls
This configuration relates to sprayers equipped with the HAZ central frame with simultaneous control of the inner and outer
sections.
1. Air outlets inclination control
2. Blower speed variation control
3. TWIN memory 1 and 2
4. Pendulum lock control
5. Inner section control
6. Outer section control
TERRA FORCE boom hydraulic controls
1. Not used.
2. Not used.
3. Boom locking
4. Folding left and right inner sections.
5. Folding left and right second sections.
6. Folding right and right outer section sections.
6
4
5
3
1
2
6
4
5
3
1
2
1
2
6
4
5
3
1
2
