71
4 - Sprayer Setup
Cabin
Recommendations before installing the filter
• Read carefully this instruction book before proceeding. Keep this instructions for retain consultation,
• Before taking in place the filter, check the packaging is not damaging. Do not install a filter if the cardboard is rugged.
• Remove the cardboard packaging as late as possible and remove the filter from the plastic bag close to his place of
assembly.
• Handle with carry; at no time the joint, center piece of the tightness of the filter must not be damaged (beware of
cutters, the screwdriver, nails...)
• Never fit a deformed filter
• Never mount a filter that falls even from heights
• Never touch a filter at its center

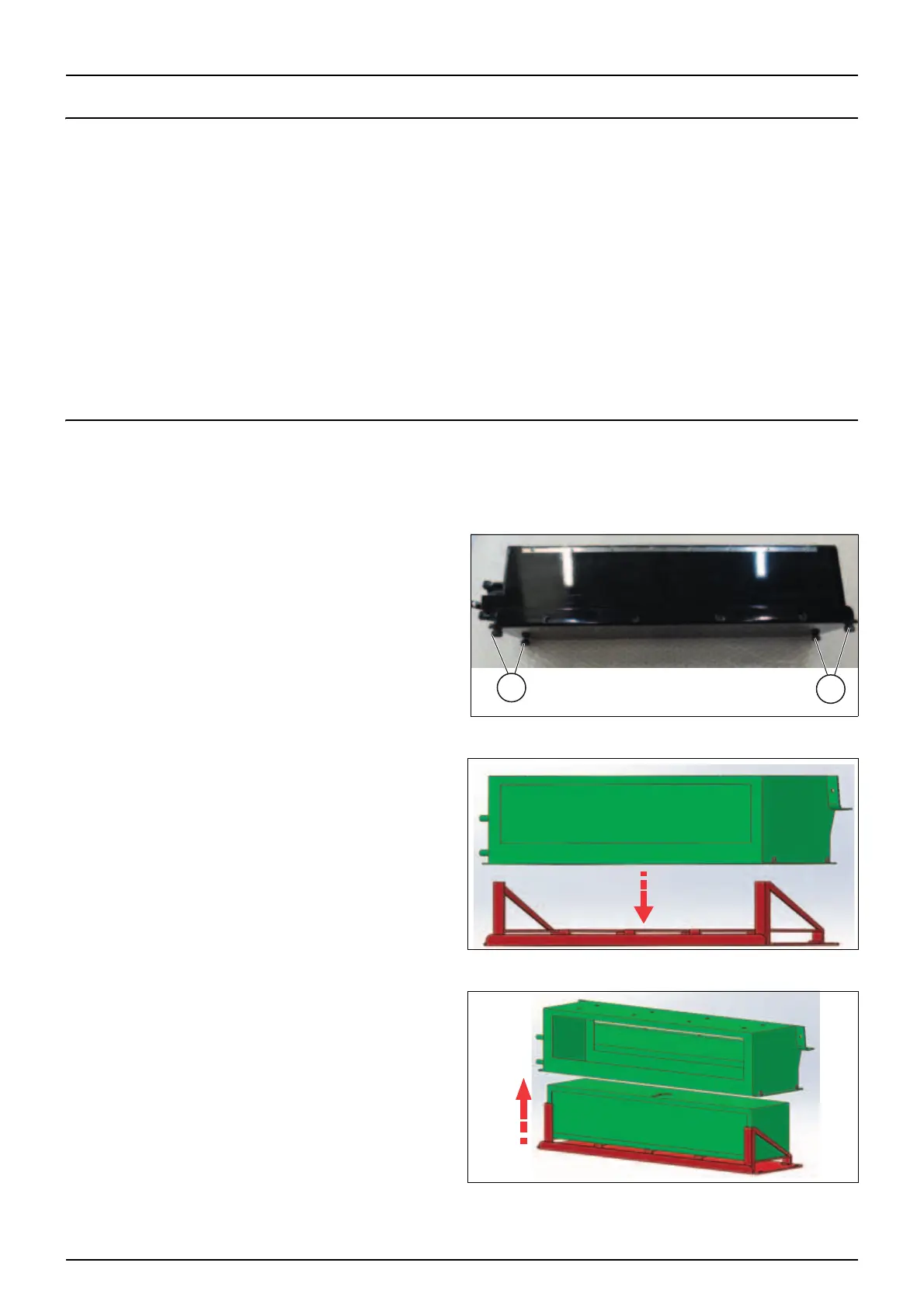

Install the filter
• Fit the filter gently into this slot provided at the cabin level. Handle the filter by its frame, do not touch the filter media
and avoid relying on the protection grid.
• Remove screws (1) from the filter chassis
• Fit the filter in the correct direction of air flow taking into
account the marking of the direction indication affixed
to it..
• Place the frame equipped with the filter in the housing
• Screw completely the 4 screws (1).
