3 - Description
69
Pneumatic system

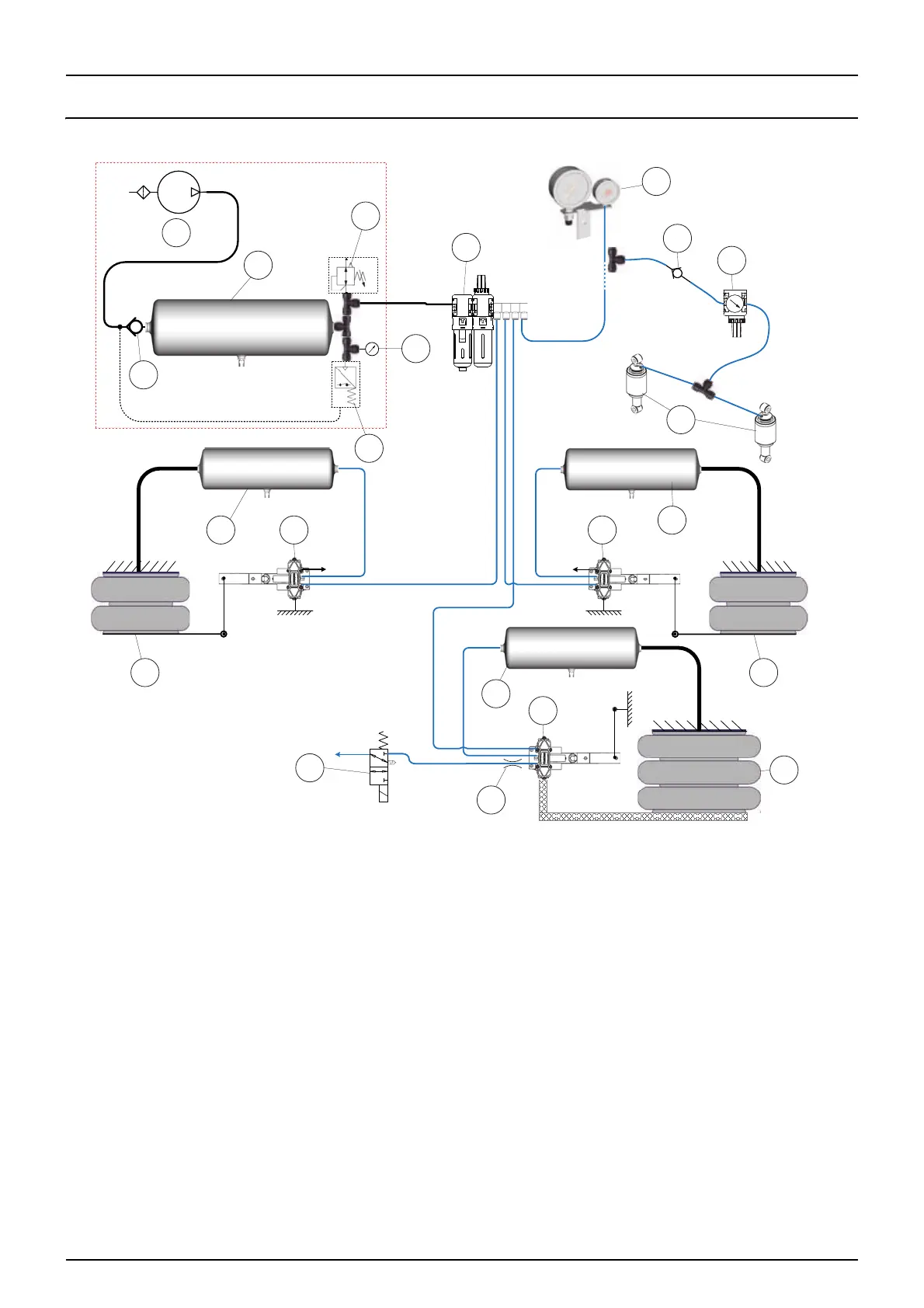

Pneumatic diagram (with optional equipment)
1. Air compressor
2. Main air tank
3. No-return valve
4. Safety valve
5. Pressure gauge
6. Pressure switch
7. Air filter and lubrificator
8. Pressur gauge
9. Suspension air tank
10. Levelling valve
11. Front suspension airbag
12. Rear suspension airbag
13. Solenoid valve
14. Restrictor
15. No-return valve
16. Air regulator
17. Cabin dampers
Ø0.8
1
28073701
H=400
AVT G
28044501
H=210
28013001
V=20L
9b
8b
Frein parking
1
3
2
OPTION
1
2
4
6
5
3
7
8
9
9
9
10
11
12
16
15
17
10
10
13
14
11
