Engine
Rating plates of engine and after-treatment gas system
The type (A), serial number (B), and technical data are stamped on
the rating plate
1. Rating plate of the diesel particle filter
2. Rating plate of the SCR catalyst
For all information, please provide the type and the engine serial
number
Exhaust gas after-treatment
DEUTZ TIER 4 TCD 6.1L6 160 KW or180 KW series are provided with a diesel oxidation catalytic converter and a particle filter.
The regeneration of this diesel particle filter is automatic and no actions is necessary.

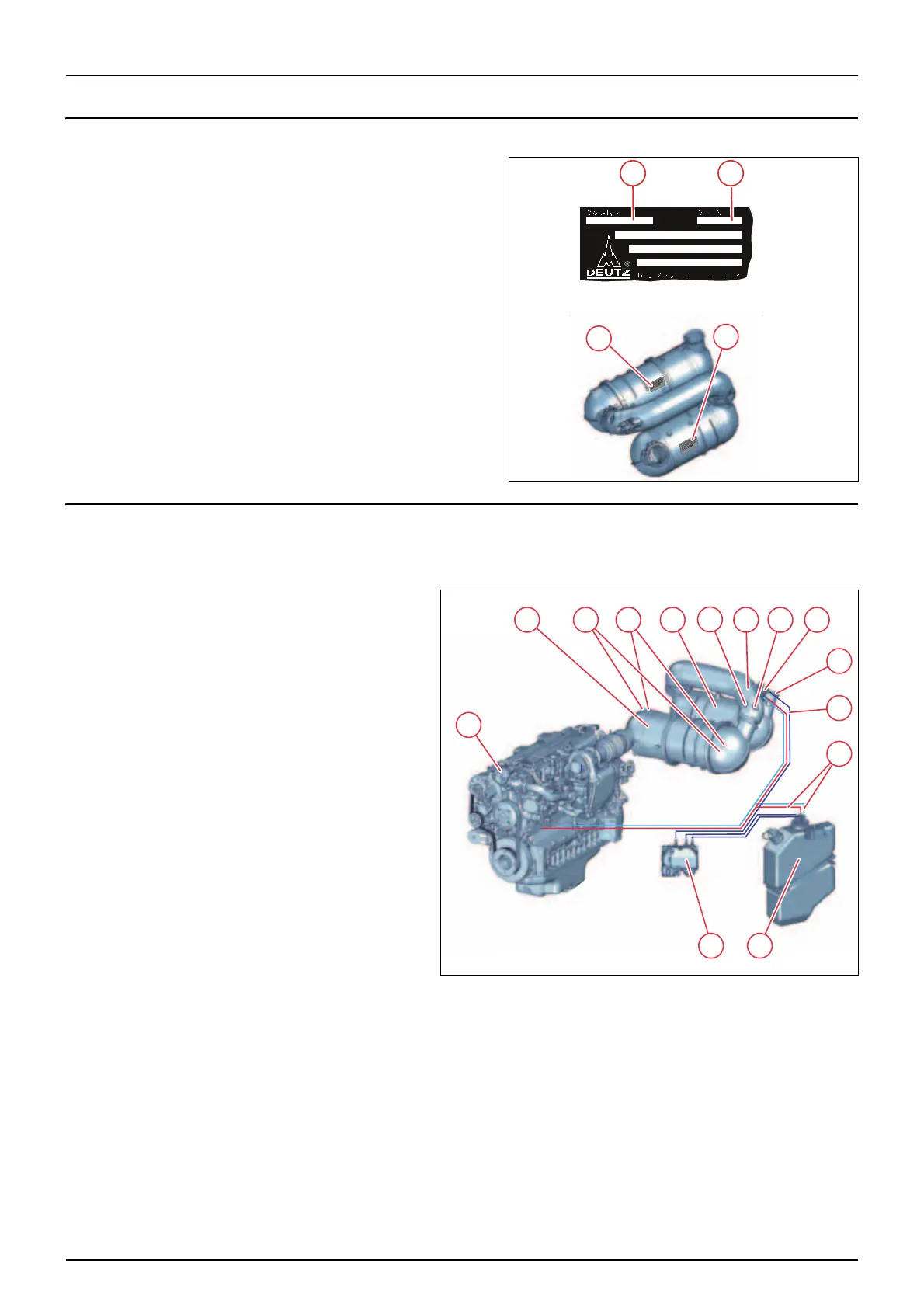

1. AdBlue supply pump
2. AdBlue tank
3. Coolant line to pre-heat the AdBlue tank to cool the
dosing device
4. AdBlue line
5. NOx sensor
6. Dosing device
7. NOx sensor
8. Exhaust temperature sensor
9. Pressure sensor
10. SCR catalytic converter
11. Differential pressure sensor
12. Exhaust temperature sensor
13. Diesel particle filter
14. Throttle valve
Diesel oxidation catalytic converter
The diesel oxidation catalytic converter has a catalytic surface which is used to convert the pollutants in the exhaust gas into
harmless substances. Here, carbon monoxides and unburned hydrocarbons are made to react with oxygen and converted
into carbon dioxide and water. In addition, the nitrogen monoxides are converted to nitrogen dioxides. Temperatures
greater than 250 °C are necessary for a high degree of efficiency.
