Hydraulic Track Adjustment (optional)

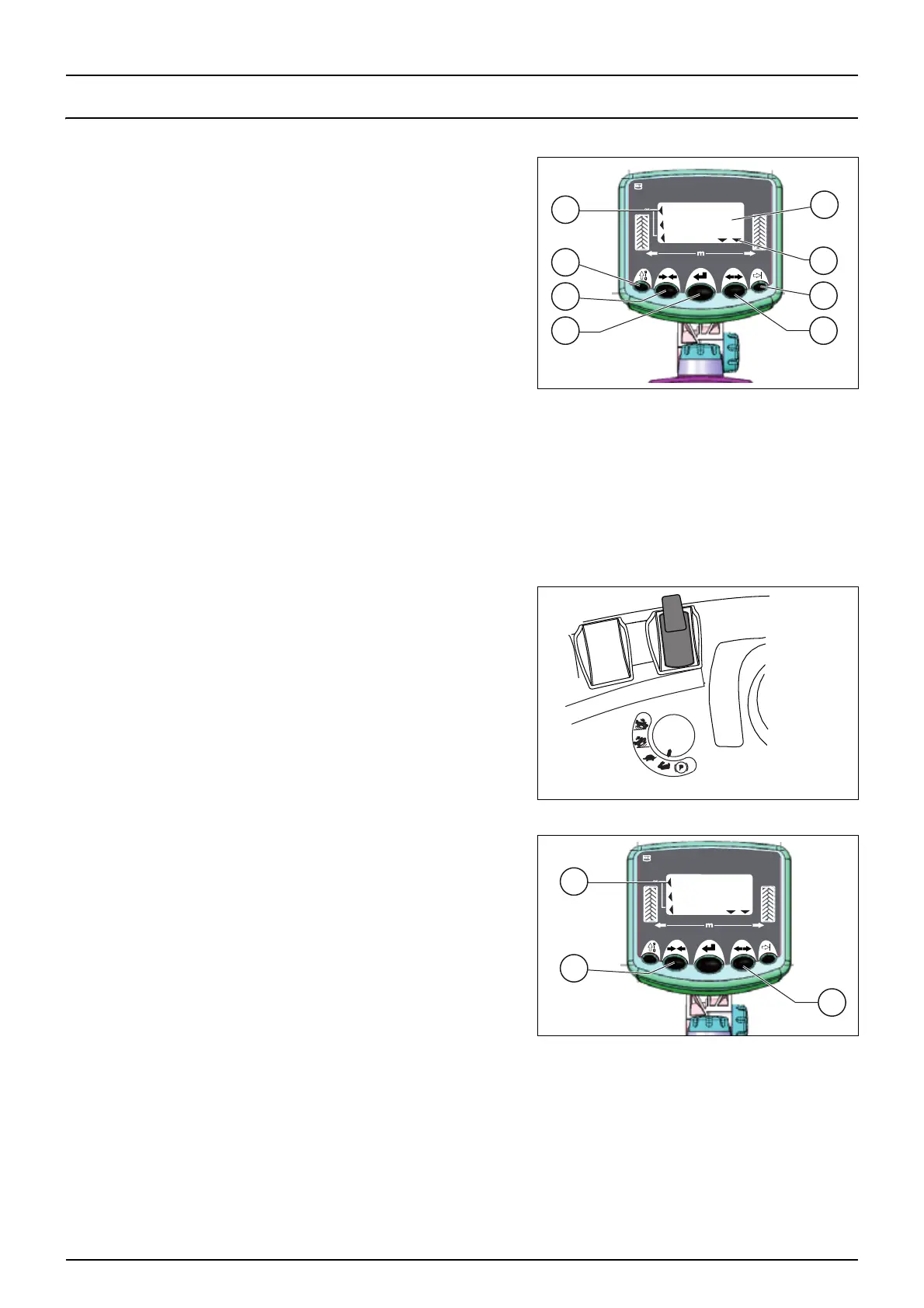

HTA control unit display
1. Forward Speed status.
2. Scrolling numbers (0 to 9).
3. Retracting Track button.
4. Valid button.
5. Extending Track button
6. Moving the cursor.
7. Status indicator.
8. Track width display.
±
When adjusting the track, make sure that nobody is in close proximity to the machine.
• The ISO terminal is power on.
• - Set the engine speed at least 1500 r.p.m.
• - The machine should be on a flat surface.
• Switch on the control unit
How to use the HTA display
To adjust the track width:
• Drive the machine between 2 to 12 kph, the status indicator (1) is
flashing
• Press the button (3) or (5) to retract or extend the track cylinders,
then release the button when the track width is reached on the
display.
μ
At first, only the left rear wheel moves. It serves as a reference to the display, then after releasing the button (3) or (5)
the other wheels take their place.
μ
During operation the hazard warning lights light up.
