5 - Operation
114

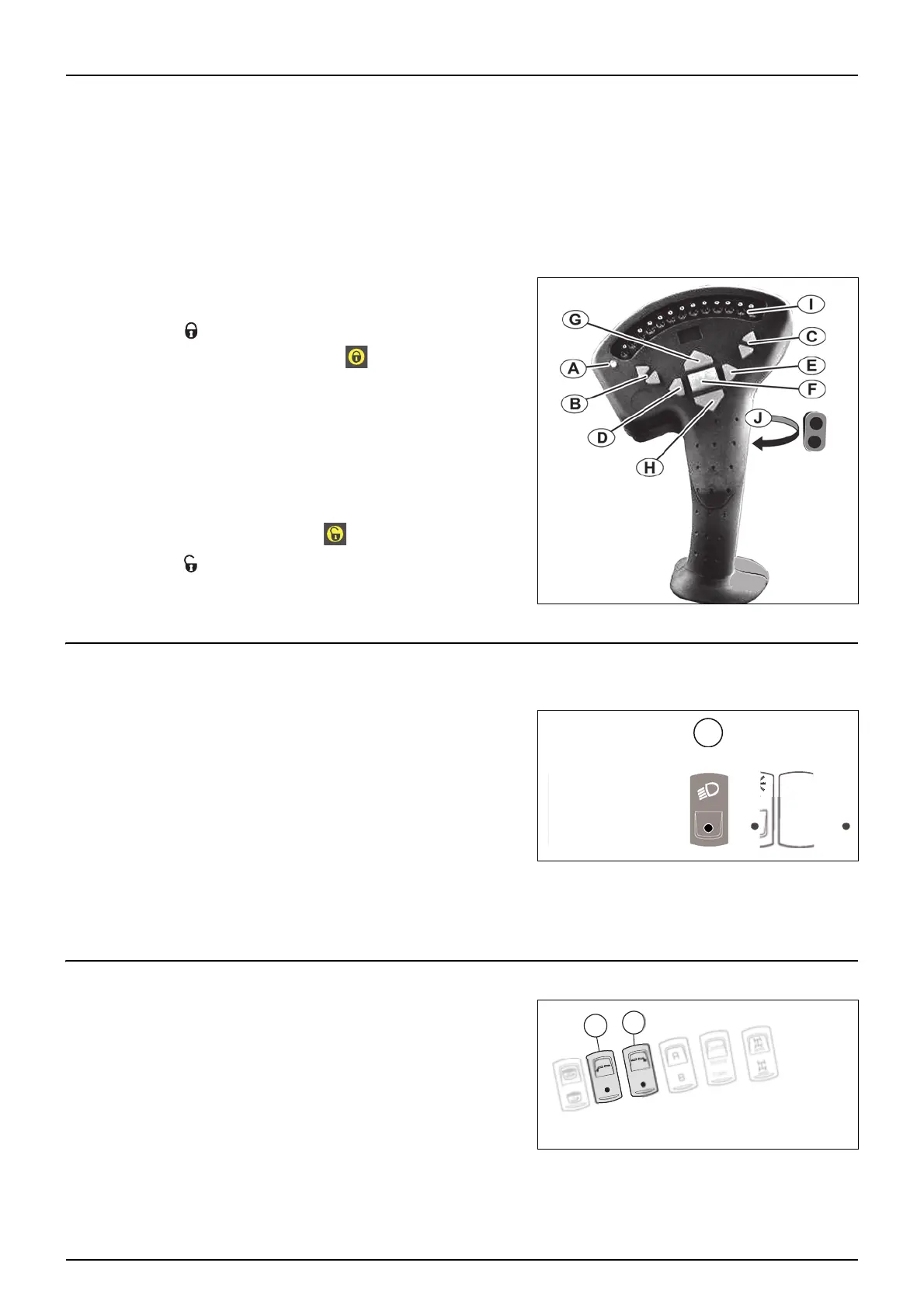

Manoeuvring of the Boom
Applicable for HC 6500 / HC 8600 / HC 9600 / ISOBUS.
÷
WARNING! The folding functions must only be operated, when the sprayer is stationary! Failure to do so will damage
the boom.
How To Unfold the Boom
1. Push the button (G) to lift the boom clear of the transport brackets.
This takes approximately 3 seconds.
2. The symbol is now shown on the display.
3. If not, lock the pendulum by pushing for 1 second.
4. Push the button to the left (K) to unfold inner boom sections
completely.
5. Push the button in the middle to unfold outer sections 1.
6. Push the button to the right to unfold outer sections 2.
7. Push the button (H) to lower the boom to the correct working
height.
8. Unlock the pendulum by pushing for 1 second.
The symbol is now shown on the display.
Night Spraying Light
The night spraying light is activated by a switch located on the cabin ceiling.
μ
To avoid any risk of dazzle and to save battery, we recommend switching off the boom lights on leaving the field.
End nozzles (optional)
The boom can be fitted with end nozzles.
• Press the switch (1) to operate the end nozzle on the left side of the
boom.
• Press the switch (2) to operate the end nozzle on the right side of
the boom.
