Spray Boom
Safety Info
Keep the spray boom in folded position while driving outside the field. Park the vehicle on level ground before using the
folding/unfolding functions.
Failure to comply will damage the boom and cause dangerous situations to people and the surroundings.
€
DANGER! When folding or unfolding the boom, make sure that no persons or objects are within the operating area
of the boom.
€

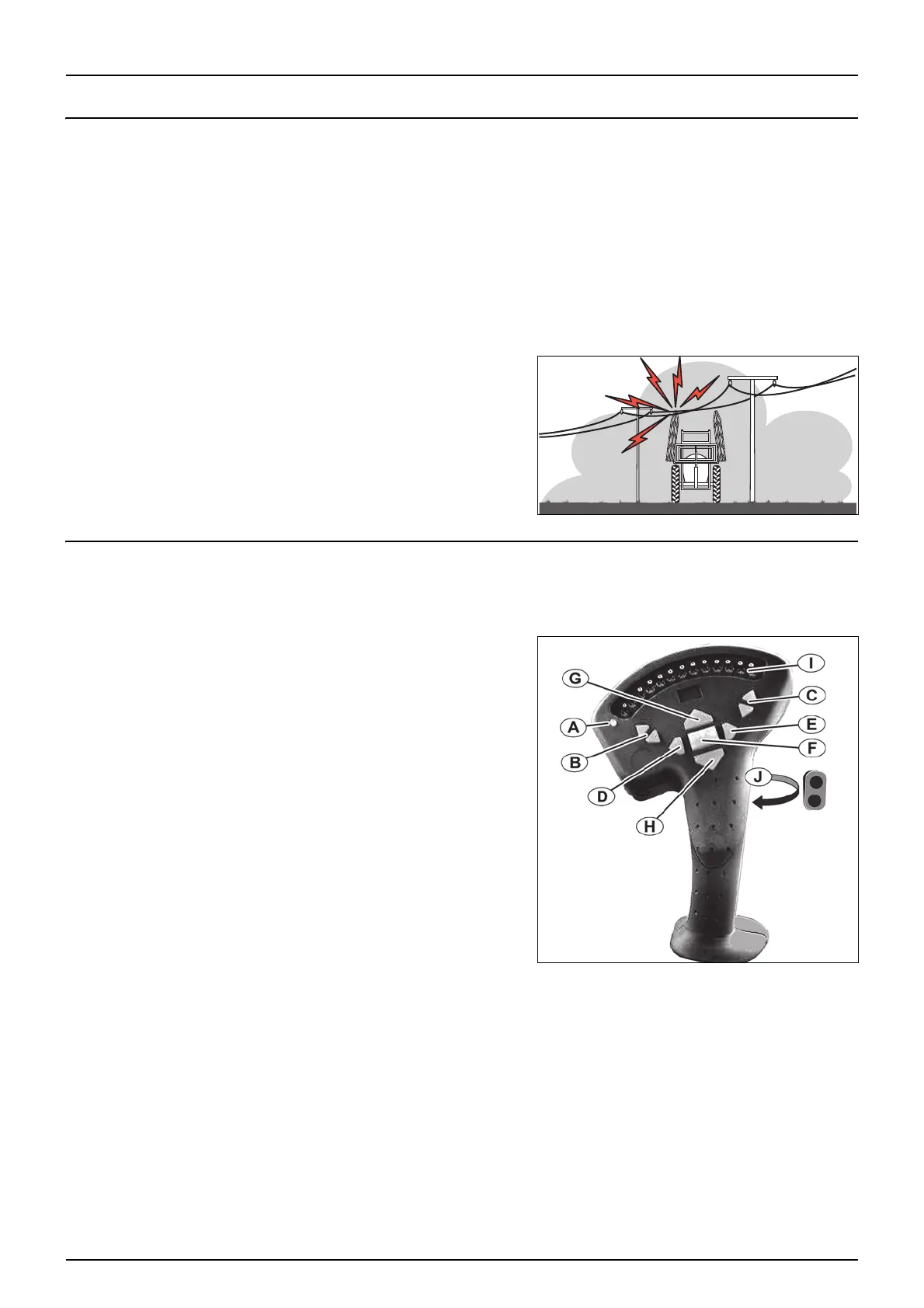

DANGER! Always follow the guidelines listed below when driving in areas with overhead power lines:
Keep from using the folding/unfolding functions in areas with overhead
power lines. Unintended boom movements may cause contact with
overhead power lines, causing a risk of fatal accidents.
μ
ATTENTION! A label (HARDI item no. 978448) follows the sprayer.
This label must be placed in the cabin visible from the operator’s
seat.
Operating the Grip
The buttons on the grip controls the following sprayer functions in the field:
A. Status light for power ON/OFF.
The light must be ON.
B. Boom tilt up/down - left boom side.
Adjust the boom height individually for the right and left boom
side, if the terrain is hilly.
C. Boom tilt up/down - right boom side.
D. Boom slant - left boom side.
Adjust the boom height to match the slope, when driving across a
hillside.
E. Boom slant - right boom side.
F. Main valve for spraying ON/OFF.
Turn it ON for spraying, OFF to stop spraying.
G. Boom height up.
Aim for a height of 50 cm above the crop when spraying.
H. Boom height down.
I. Boom sections spraying ON/OFF.
Switch pushed up is OFF, down is ON.
J. Presets 1 and 2 for the TWIN air system - the selected air angle and air volume during spraying.
