6 - Maintenance
163

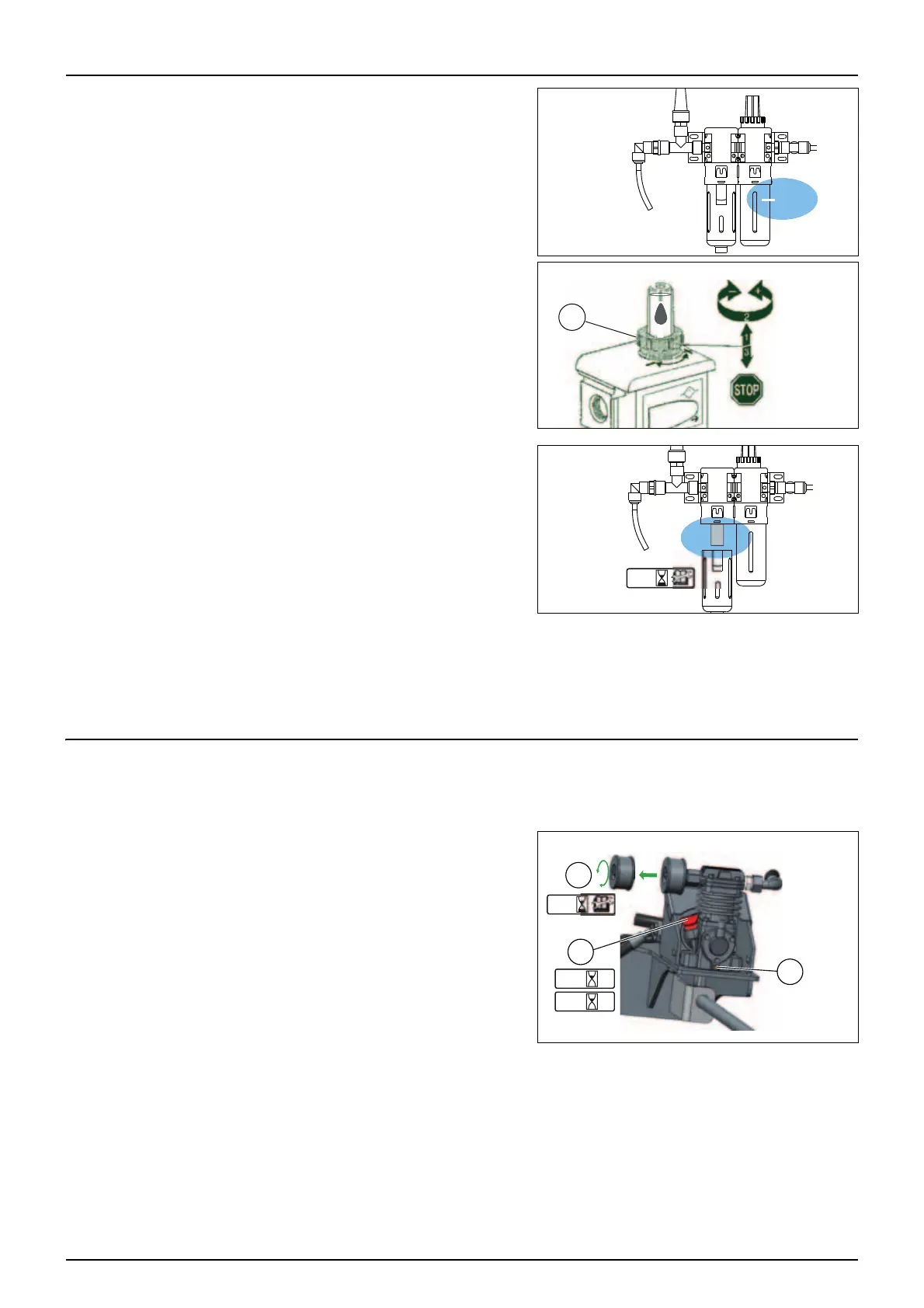

• Replenish oil whenever necessary the bowl without exceeded the
maximum level.
Oil flow rate adjustment
• Adjustment by means of knob with ’’pull-turn-push’’ type locking
system
• Set oil flow rate during the passage of air.
• Oil flow rate: one drop of oil per minute.
Replace the compressed air filter
• Turn 1/8 turn to remove the protective bowl.
• Turn 1/4 turn the tank (4) to dismantle it
• Remove the filter and replace it
Maintenance
• Clean the bowl with an alkaline solution (soapy water) .
÷
NOTE! The tank is made from polycarbonate, never use a solvent-based solution.
Air Compressor
TWIN FORCE sprayer is equipped with an air compressor fitted on the right side:
Draining oil after 20 hours of use, then every 250 hours of service
• Place a collecting receptacle underneath the oil drain screw.
• Unscrew the oil drain screw (2), drain oil.
• Fill new oil through the dipstick (1), See “Suitable Lubricants”
page 141.
Check oil level
• check the oil level indicated by the dipstick. Add oil if necessary not
exceeding the maximum level
Replace air filter
• Remove the cover and replace the air filter (3).
