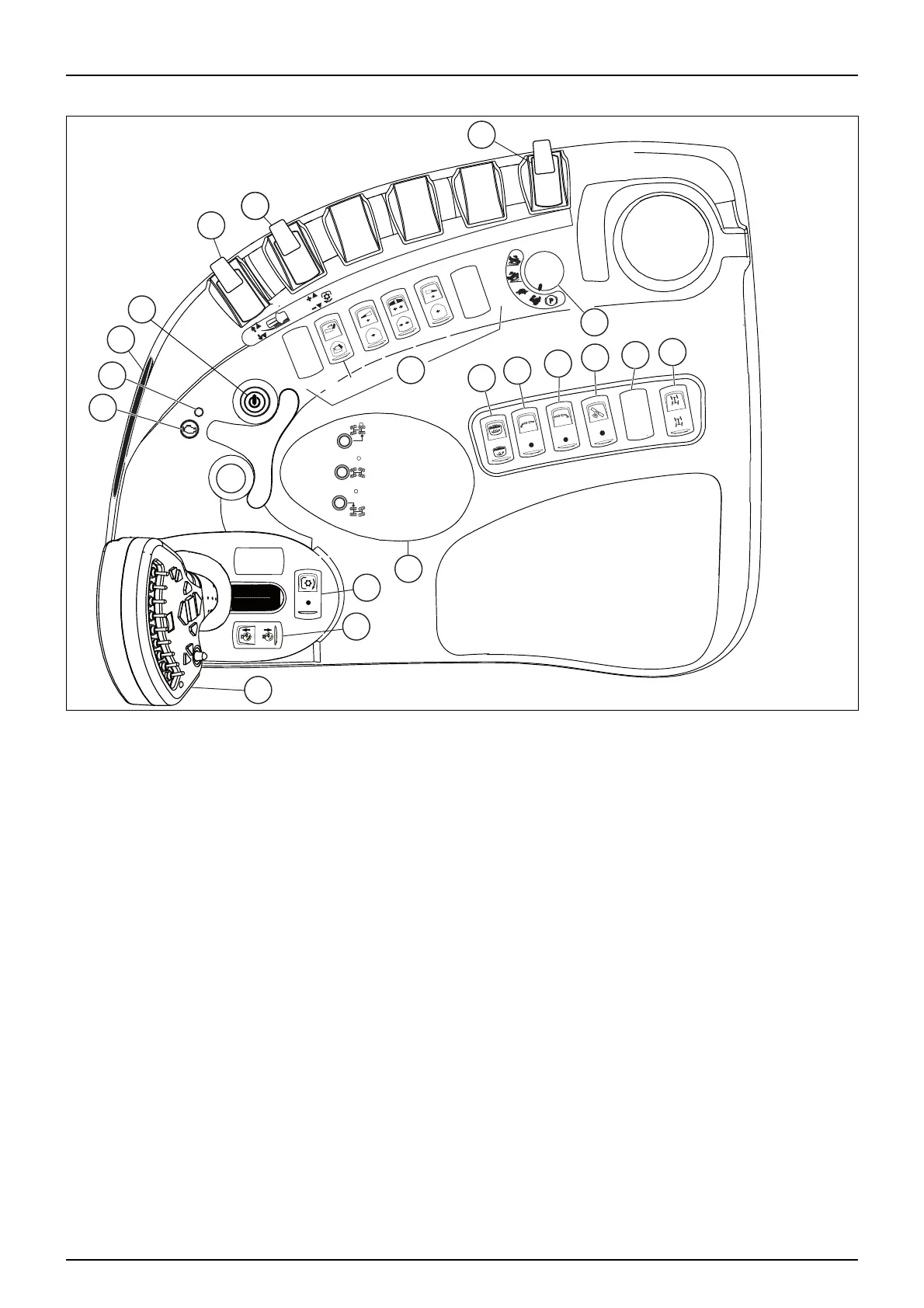

Control Panel
s
.
1. Gangway control switch
2. On-off switch of the spray pump
3. Electronic Traction Control (option)
4. Boom hydraulic function
5. Speed selector and parking brake.
6. Main tank agitation switch.
7. Left end nozzle control switch
8. Right end nozzle control switch
9. On-off switch of the guidance system.
10. Not used
11. 4-Wheel steering switch
12. Clutch spraying pump switch.
13. Engine RPM control switch.
14. Multi-functional grip.
15. Operating light of the controller.
16. Engine default light.
17. 2/4 Wheel Steering.
18. Ashtray.
19. Hydraulic Track Axle switch.
AUTO
MANU
1
2
5
7
6
9
8
11
19
10
4
3
17
12
13
14
2
18
15
16
