Hardi ALPHA EVO II EcoDrive User Manual

4 - Sprayer Setup
72
Unloading the sprayer from the truck
÷
NOTE! The machine can only be unloaded if the engine is running. It cannot be towed if the engine is not running
(parking brake engaged when engine is stopped).
±
WARNING! Ensure that no one is parked near the unloading area.
±
WARNING! The machine can only be unloaded if you are familiar with the method described below.
Method
• Turn the battery switch to supply the machine's electrical and electronic circuits.
• Move the grip to neutral and check that the parking brake is on.
• Turn the contact key to start the engine and accelerate to at least 1600 r.p.m.
• Turn the speed selector from the [PARKING] position to the [FIELDS] position.
• Push the grip gently forwards or backwards to move the machine in the required direction.

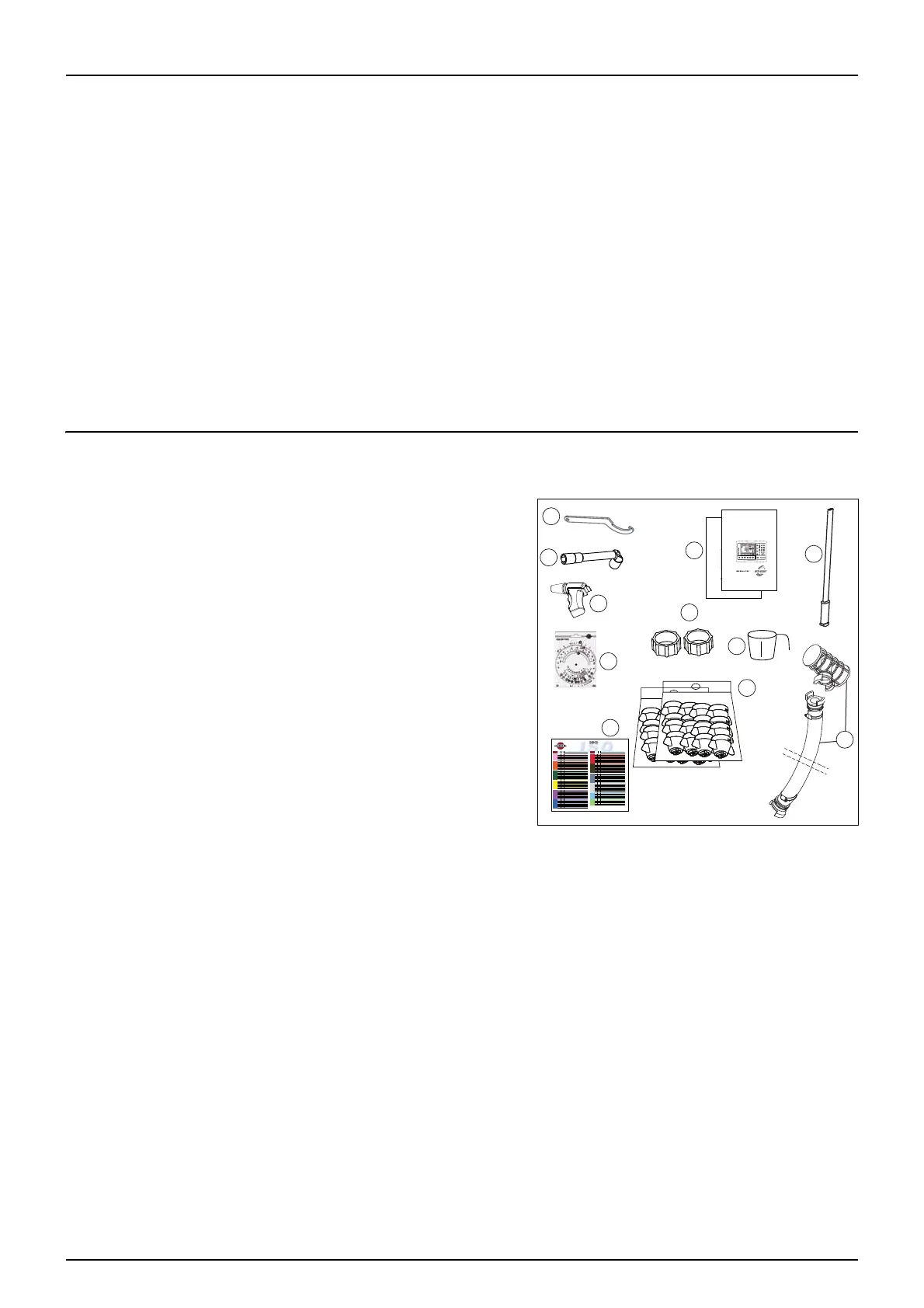

Accessories
Some accessories are supplied separately with the machine. The list varies according to the equipment and options:
1. Key for tightening the external connectors
2. Wrench
3. Multi-jet spray
(1)
4. ISO nozzle disc
5. Table of ISO nozzle flow rates
6. Drain plugs (rinse tank-hand wash tank-storage box)
7. Graduated pot
8. Hydraulic pump lever (brake release - open the bonnet)
9. Nozzles
(2)
10. Instruction books
(3)
11. External suction hose and filter
12. Emergency push-button
(5)
(1)
Optional hose reel
(2)
Variable according to nozzle type and quantity ordered
(3)
The number of manuals varies according to the equipment
ALPHA evo
Original
Manuel d’utilisation
67786201-100 - Version 1.00
F - 07.2011
www.hardi-fr.com
REGULOR 6
Original
Manuel d’utilisation
67786201-100 - Version 1.00
F - 07.2011
www.hardi-fr.com
1.5 0.21 42 36 32 25 21 17 13 10
2.0 0.24 49 42 37 29 24 20 15 12
2.5 0.27 55 47 41 33 27 22 16 13
3.0 0.30 60 51 45 36 30 24 18 14
4.0 0.35 69 59 52 42 35 28 21 17
5.0 0.39 77 66 58 46 39 31 23 19
1.5 0.28 57 48 42 34 28 23 17 14
2.0 0.33 65 56 49 39 33 26 20 16
2.5 0.37 73 63 55 44 37 29 22 18
3.0 0.40 80 69 60 48 40 32 24 19
4.0 0.46 92 79 69 55 46 37 28 22
5.0 0.52 103 89 77 62 52 41 31 25
6.0 0.57 113 97 85 68 57 45 34 27
7.0 0.61 122 105 92 73 61 49 37 29
8.0 0.65 131 112 98 78 65 52 39 31
1.5 0.42 85 73 64 51 42 34 25 20
2.0 0.49 98 84 73 59 49 39 29 24
2.5 0.55 110 94 82 66 55 44 33 26
3.0 0.60 120 103 90 72 60 48 36 29
4.0 0.69 139 119 104 83 69 55 42 33
5.0 0.77 155 133 116 93 77 62 46 37
6.0 0.85 170 145 127 102 85 68 51 41
7.0 0.92 183 157 137 110 92 73 55 44
8.0 0.98 196 168 147 118 98 78 59 47
1.5 0.57 113 97 85 68 57 45 34 27
2.0 0.65 131 112 98 78 65 52 39 31
2.5 0.73 146 125 110 88 73 58 44 35
3.0 0.80 160 137 120 96 80 64 48 38
4.0 0.92 185 158 139 111 92 74 55 44
5.0 1.03 207 177 155 124 103 83 62 50
6.0 1.13 226 194 170 136 113 91 68 54
7.0 1.22 244 209 183 147 122 98 73 59
8.0 1.31 261 224 196 157 131 105 78 63
1.5 0.71 141 121 106 85 71 57 42 34
2.0 0.82 143 140 122 98 82 65 49 39
2.5 0.91 183 156 137 110 91 73 55 44
3.0 1.00 200 171 150 120 100 80 60 48
4.0 1.15 231 198 173 139 115 92 69 55
5.0 1.29 258 221 194 155 129 103 77 62
6.0 1.41 283 242 212 170 141 113 85
68
7.0 1.53 306 262 229 183 153 122 92 73
8.0 1.63 327 280 245 196 163 131 98 78
1.5 0.85 170 145 127 102 85 68 51 41
2.0 0.98 196 168 147 118 98 78 59 47
2.5 1.10 219 188 164 131 110 88 66 53
3.0 1.20 240 206 180 144 120 96 72 58
4.0 1.39 277 238 208 166 139 111 83 67
5.0 1.55 310 266 232 186 155 124 93 74
6.0 1.70 339 291 255 204 170 136 102 81
7.0 1.83 367 314 275 220 183 147 110 88
8.0 1.96 392 336 294 235 196 157 118 94
0075
Pink
0 1
Orange
015
Green
02
Yellow
025
Lilac
03
Blue
1.5 1.13 226 194 170 136 113 91 68 54
2.0 1.31 261 224 196 157 131 105 78 63
2.5 1.46 292 250 219 175 146 117 88 70
3.0 1.60 320 274 240 192 160 128 96 77
4.0 1.85 370 317 277 222 185 148 111 89
5.0 2.07 413 354 310 248 207 165 124 99
6.0 2.26 453 388 339 272 226 181 136 109
7.0 2.44 489 419 367 293 244 196 147 117
8.0 2.61 523 448 392 314 261 209 157 125
1.5 1.41 283 242 212 170 141 113 85 68
2.0 1.63 327 280 245 196 163 131 98 78
2.5 1.83 365 313 274 219 183 146 110 88
3.0 2.00 400 343 300 240 200 160 120 96
4.0 2.31 462 396 346 277 231 185 139 111
5.0 2.58 516 443 387 310 258 207 155 124
6.0 2.83 566 485 424 339 283 226 170 136
7.0 3.06 611 524 458 367 306 244 183 147
8.0 3.27 653 560 490 392 327 261 196 157
1.5 1.70 339 291 255 204 170 136 102 81
2.0 1.96 392 336 294 235 196 157 118 94
2.5 2.19 438 376 329 263 219 175 131 105
3.0 2.40 480 411 360 288 240 192 144 115
4.0 2.77 554 475 416 333 277 222 166 133
5.0 3.10 620 531 465 372 310 248 186 149
6.0 3.39 679 582 509 407 339 272 204 163
7.0 3.67 733 628 550 440 367 293 220 176
8.0 3.92 784 672 588 470 392 314 235 188
1.5 2.26 453 388 339 272 226 181 136 109
2.0 2.61 523 448 392 314 261 209 157 125
2.5 2.92 584 501 438 351 292 234 175 140
3.0 3.20 640 549 480 384 320 256 192 154
4.0 3.70 739 633 554 443 370 296 222 177
5.0 4.13 826 708 620 496 413 330 248 198
6.0 4.53 905 776 679 643 453 362 272 217
7.0 4.89 978 838 733 587 489 391 293 235
8.0 5.23 1045 896 784 627 523 418 314 251
1.5 2.83 566 485 424 339 283 226 170 136
2.0 3.27 653 560 490 392 327 261 196 157
2.5 3.65 730 626 548 438 365 292 219 175
3.0 4.00 800 686 600 480 400 320 240 192
4.0 4.62 924 792 693 554 462 370 277 222
5.0 5.16 1033 885 775 620 512 413 310 248
1.5 4.24 849 727 636 509 424 339 255 204
2.0 4.90 980 840 735 588 490 392 294 235
2.5 5.48 1095 939 822 657 548 438 329 263
3.0 6.00 1200 1029 900 720 600 480 360 288
4.0 6.93 1386 1188 1039 831 693 554 416 333
5.0 7.75 1549 1328 1162 930 775 620 465 372
0 4
Red
0 5
Brown
0 6
Grey
0 8
White
15
Light
green
10
Light
blue
Instructive application table • Ausbringtabelle
Tableau d’application instructif • Tabla de aplicación instructiva
Vejledende udbringningstabel
1 bar = 1 kp/cm
2
= 1 atü = 100 kPa
INJET= 3 -8 bar
HIA-MAR KETING 97812500-2004
HARDI NOZZLE
l/ha at km/h
Bar l/min
6 7 8 10 12 15 20 25
ISO
nozzle
l/ha at km/h
Bar l/min
6 7 8 10 12 15 20 25
ISO
nozzle
6
1
3
4
5
10
8
9
10
2
7
