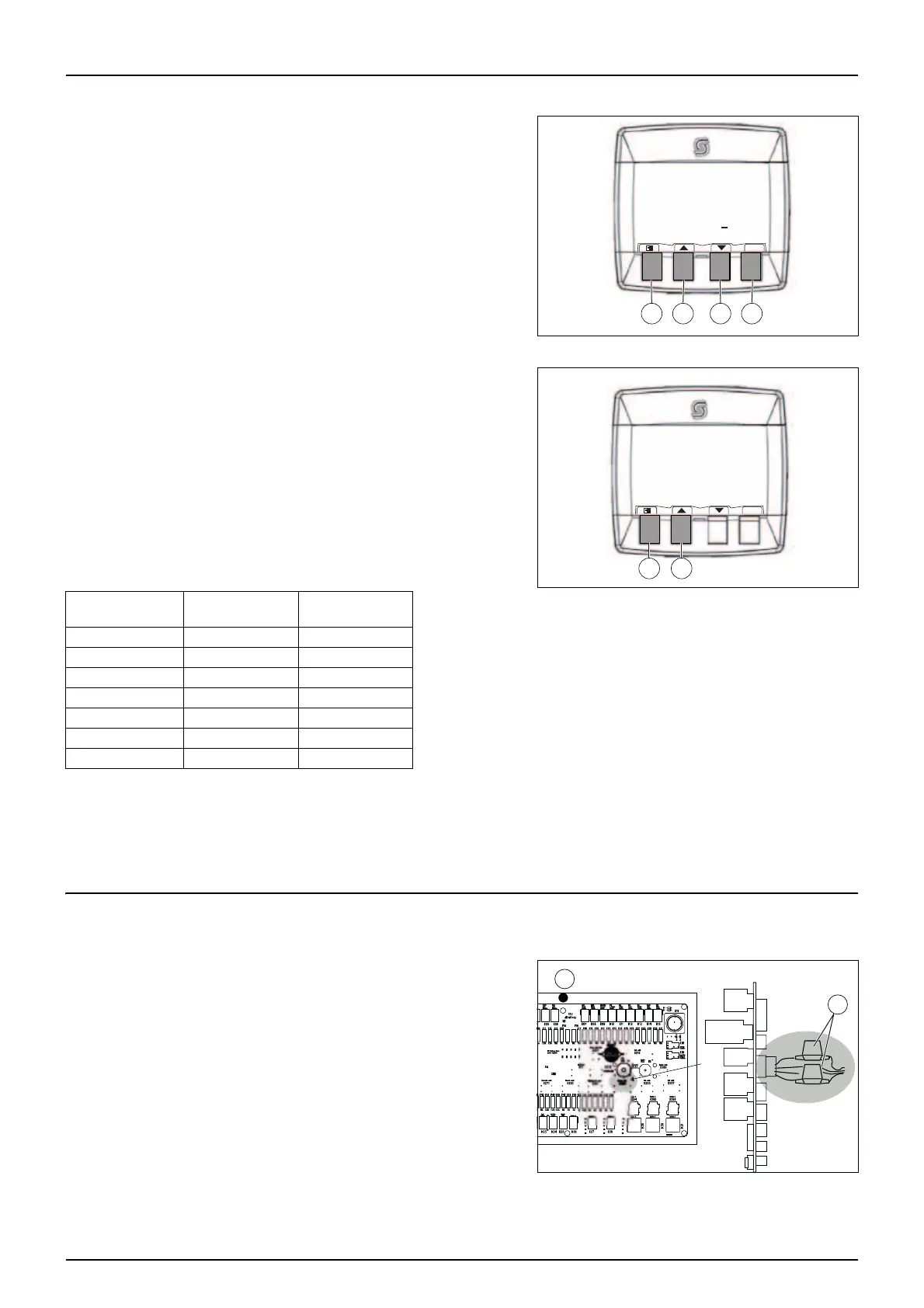

Multifunction display
To access to the diagnosis menu:
• Press simultaneously during 3 sec the buttons (1) and (2)
• Enter the password by pressing the buttons (1) and/or (4) :
Password : 1 0 0 1
CAN O Engine CAN bus
CAN_1 Smart Drive CAN bus
DiffLock
0 pedal released
1 pedal pressed
Input mode : Analog signal of the speed selector
Parking 0.25 v - 1.15V
Resistance GO : Fuel gauge resistance
0 short-circuit
1 - 200 operating range
65535 cable break
Side Lights Fuses
Two fuses are located to the rear of the main PCB to protect side lights circuit
• Loosen the screw (1) and tilt the main PCB.
• Check and replace if necessary the fuse (7.5 A).
÷
Spare fuses are available on the main PCB.
÷
NOTE! Always use a correct fuses rating.
function Typical
signal (V)
Rangel
(V)
Short-circuit5 V 0.7 0.25 -1.15
Parking 0.7 0.25 -1.15
Dowhill 1.6 1.15 - 2.00
Uphill 2.50 2.00 - 2.95
Field 3.40 2.95 - 3.85
Automotive 4.30 3.85 - 4.75
Short-circuit 0V 0.00 - 0.25
PASSWORD
1 0 0 1
1 2 3 4
1 2
CAN_0 :0
CAN_1 :0
Diff_loc: 0
Mode Input: 3.25 V
Resistance GO: 150 O
Power Supply: 12.4 V
1
2
