7 - Repair
203
Fuses Test

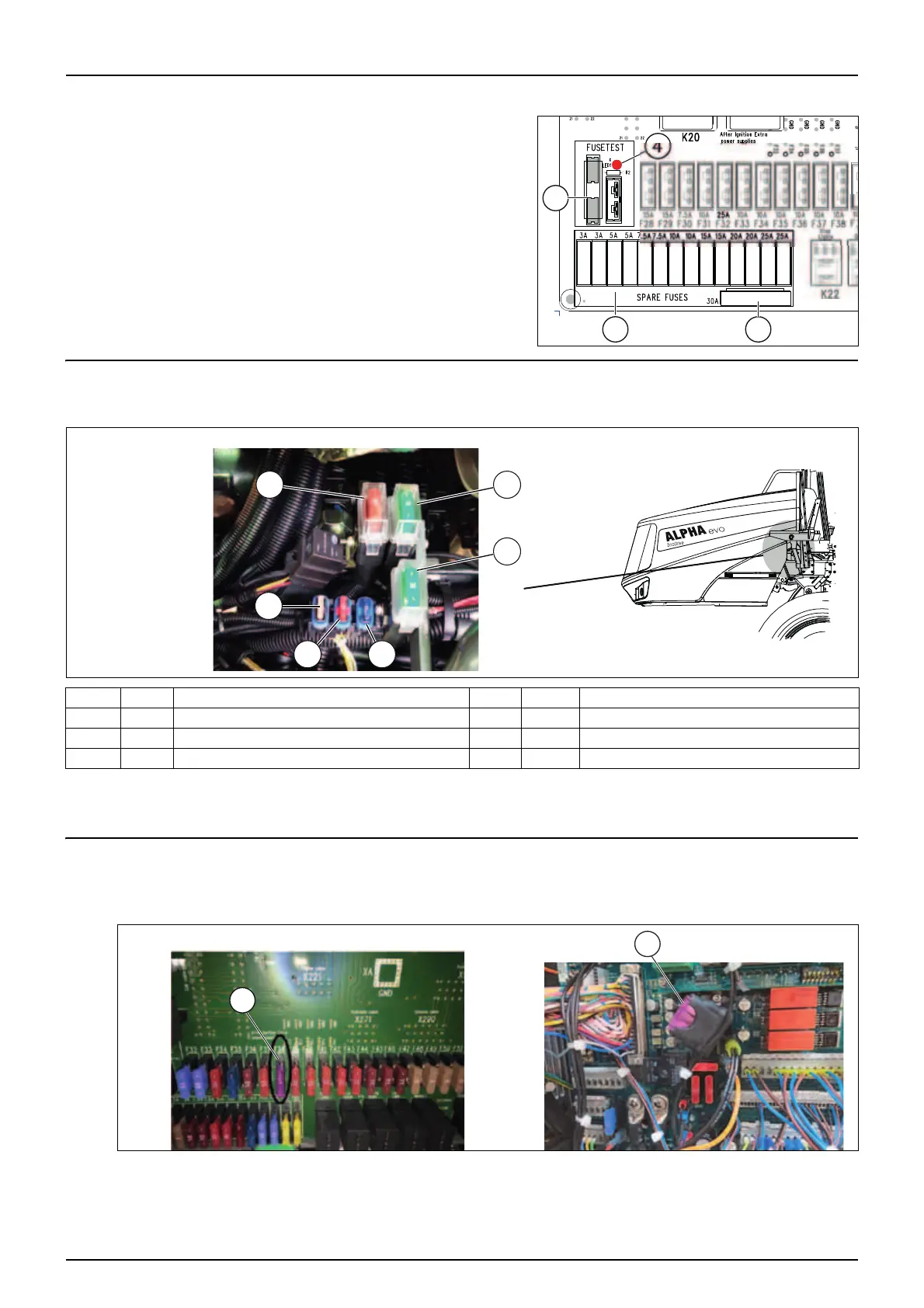

The PCB is equipped with «Autofuse» fuses (1) and «Maxifuse» fuse (2).
• Take off the fuse to be tested and put it in the test fuse holder.
If the indicator (4) light up, this means that the fuse is not blown.
Engine and JobCom fuses
This fuses are located at the left hand side of engine compartment
Air compressor fuse
This fuse is located either the JobCom box or the fuses board of the cabin. It concern only sprayers equipped with an air
compressor drived by a hydraulic motor
Fuse (1) = 3 Amp. F38 on fuses board or on the JobCom box
N° I (A) Description N° I (A) Description
1 50 JOBCOM (blue / brown) 4 15 AdBlue quality (X46-2)
2 30 SCR AdBlue (12V perm.) 5 30 EGR (12V 23/28)
3 30 EMR (12V EMR) 6 10 Nox (X46-1)
4
21
3
2
1
3
4
5 6
1
1
